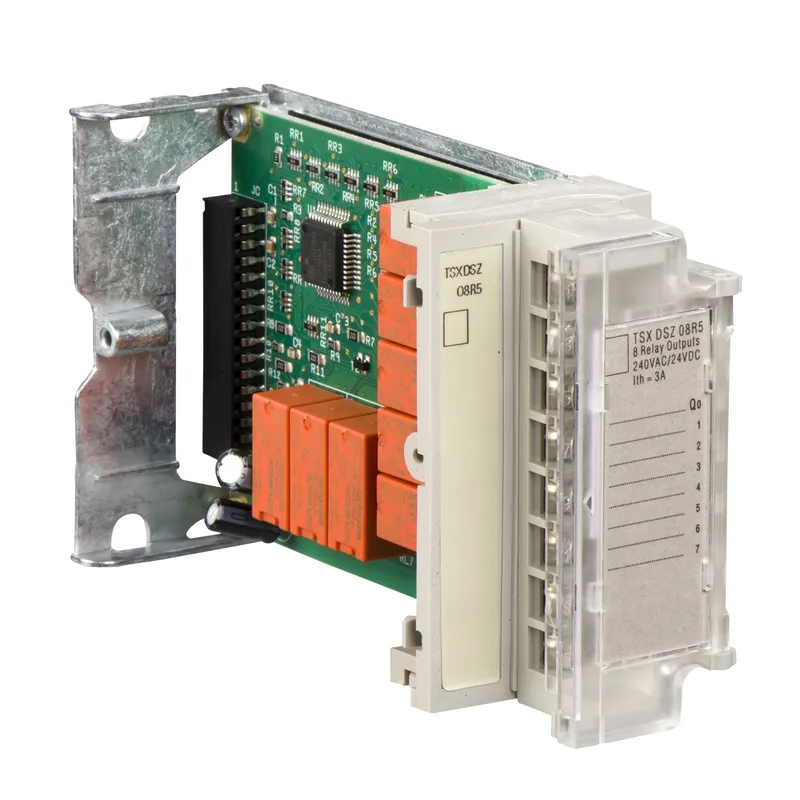

Schneider Electric TSXDSZ08T2
TSX Micro - 8 discret output DC
- MPN
- TSXDSZ08T2
- EAN
- 3389110540505
- Category
- Modicon TSX Micro
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXDSZ08T2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXDSZ08T2?
Schneider Electric TSXDSZ08T2 — TSX Micro - 8 discret output DC (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 8 screw terminal block |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 mA |
| Discrete output logic | Positive |
Complementary
| Output voltage limits | 19...30 V |
| Output current limits | 0.625 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 0.3 V |
| Load impedance ohmic | 48 Ohm |
| Response time | < 0.5 ms at state 1; < 0.5 ms at state 0 |
| Switching frequency | < 0.6/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | Thermal circuit breaker; Current limiter |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Current consumption | 38 mA |
| Power dissipation in W | 3.5 W by module; 0.15 W by channel |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.24 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXDSZ08T2: frequently asked questions
Can I still buy the TSXDSZ08T2 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDSZ08T2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDSZ08T2 be shipped?
TSXDSZ08T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDSZ08T2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDSZ08T2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDSZ08T2, subject to availability and destination.
