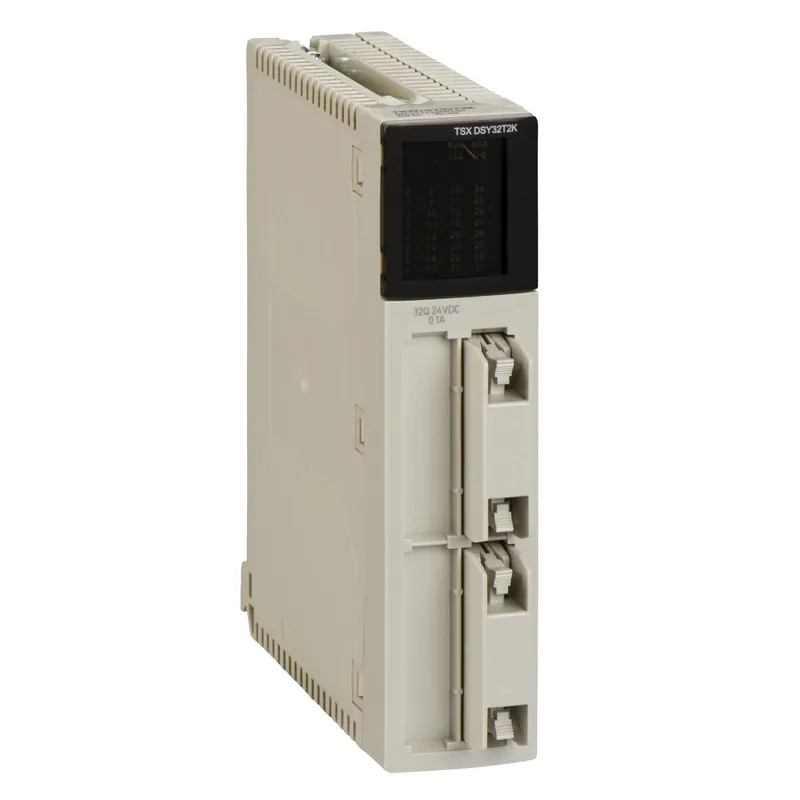

Schneider Electric TSXDSY32T2K – discrete output module Modicon Premium - 32 O solid state

Name: Schneider Electric TSXDSY32T2K – discrete output module Modicon Premium - 32 O solid state
Brand: Schneider Electric
SKU: TSXDSY32T2K

MPN: TSXDSY32T2K · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXDSY32T2K (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3389110725575
Recommended replacement	BMXDDO3202K
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXDSY32T2K now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXDSY32T2K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDO3202K as its successor — we can quote both.

When can TSXDSY32T2K be shipped?

TSXDSY32T2K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXDSY32T2K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXDSY32T2K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDSY32T2K, subject to availability and destination.

Schneider Electric TSXDSY32T2K — discrete output module Modicon Premium - 32 O solid state. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDO3202K. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete output module
Discrete output number	32
Discrete output type	Solid state protected
Discrete output voltage	24 V DC positive conforming to EN/IEC 61131-2 19...30 V

Complementary

Current per channel	0.1 A
Maximum current per module	3.2 A
Maximum leakage current	0.1 mA, at 30 V
Maximum tungsten load	1.2 W
[Ures] residual voltage	1.5 V
Response time	1.2 ms
Paralleling of outputs	Yes : 3 maximum
Output overvoltage protection	By transil diode
Reverse polarity protection	Reverse mounted diode
Output overload protection	Automatic trip
Short-circuit protection	Automatic trip
Minimum load impedance	220 W at state 1
isalotion resistance	> 10 MOhm 500 V
Power dissipation	(1.6 W + 0.1 W x No of outputs)
Product compatibility	Dial and Power
Marking	CE
Electrical connection	2 connectors HE-10
Current consumption	140 mA at 5 V DC
Module format	Standard
Net weight	0.3 kg

Environment

Dielectric strength	1500 V 50/60 Hz 60 s
Standards	CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group D; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group C; IEC 61131-2; 89/336/EEC; UL 508; 92/31/EEC; 93/68/EEC
Product certifications	ABS; RINA; GL; DNV; RMRS; LR; BV
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	TC
IP degree of protection	IP20
Pollution degree	2
