Schneider Electric TSXDSZ32T2

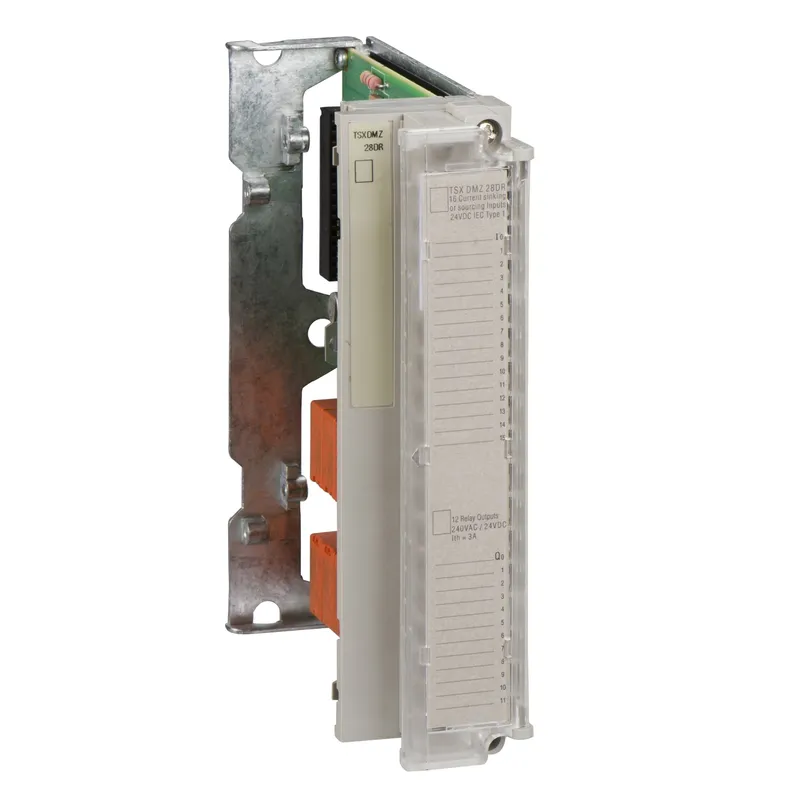

TSX Micro - 32 discret output DC
- MPN
- TSXDSZ32T2
- EAN
- 3389110738032
- Category
- Modicon TSX Micro
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXDSZ32T2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXDSZ32T2?
This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This discrete output module has 32 screw terminal block outputs sink (positive) logic. It is an output module with an output voltage of 24V DC, a current consumption of 95mA and an output current of 0.5W. The response time is <0.5ms at state 1 and <0.5ms at state 0. It weighs 0.42kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 32 screw terminal block |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 mA |
| Discrete output logic | Positive |
Complementary
| Output voltage limits | 19...30 V |
| Output current limits | 0.625 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 0.3 V |
| Load impedance ohmic | 48 Ohm |
| Response time | < 0.5 ms at state 1; < 0.5 ms at state 0 |
| Switching frequency | < 0.6/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | Thermal circuit breaker; Current limiter |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Current consumption | 94 mA |
| Power dissipation in W | 0.15 W by channel; 3.2 W by module |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.42 kg |
