Schneider Electric TSXDSY16T3

Discrete output module Modicon Premium - 16 O solid state

MPN: TSXDSY16T3
EAN: 3389110725568
Category: Modicon Premium

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXDSY16T3 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXDSY16T3?

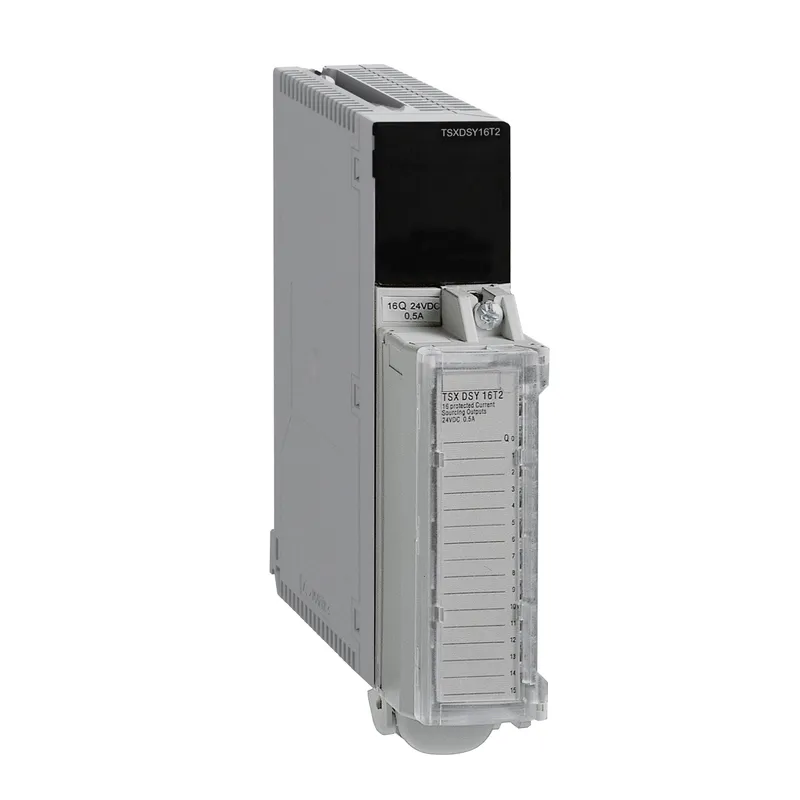

Schneider Electric TSXDSY16T3 — discrete output module Modicon Premium - 16 O solid state. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete output module
Discrete output number	16
Discrete output type	Solid state protected
Discrete output voltage	48 V DC positive conforming to EN/IEC 61131-2 38...60 V
Discrete output current	0.25 A

Complementary

Current per channel	0.31 A
Maximum current per module	4 A
Maximum leakage current	0.5 mA at state 0
[Ures] residual voltage	1.5 V
Response time	1.2 ms
Switching frequency	0.5/LI² Hz
Output overvoltage protection	By transil diode
Reverse polarity protection	Reverse mounted diode
Output overload protection	Electronic tripping on reactivation
Short-circuit protection	Electronic tripping on reactivation
Preactuator voltage detection threshold	34 V
Minimum load impedance	192 W
isalotion resistance	> 10 MOhm 500 V
Power dissipation	(2.4 W + 0.85 W x No of outputs x current per module)
Marking	CE
Electrical connection	Screw terminal block
Current consumption	80 mA at 5 V DC
Module format	Standard
Net weight	0.34 kg

Environment

Dielectric strength	1500 V 50/60 Hz 60 s
Standards	UL 508; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group D; 73/23/EEC; 92/31/EEC; IEC 61131-2; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 213 Class I Division 2 Group C; 93/68/EEC; 89/336/EEC
Product certifications	ABS; LR; RMRS; DNV; RINA; BV; GL
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	TC
IP degree of protection	IP20
Pollution degree	2
