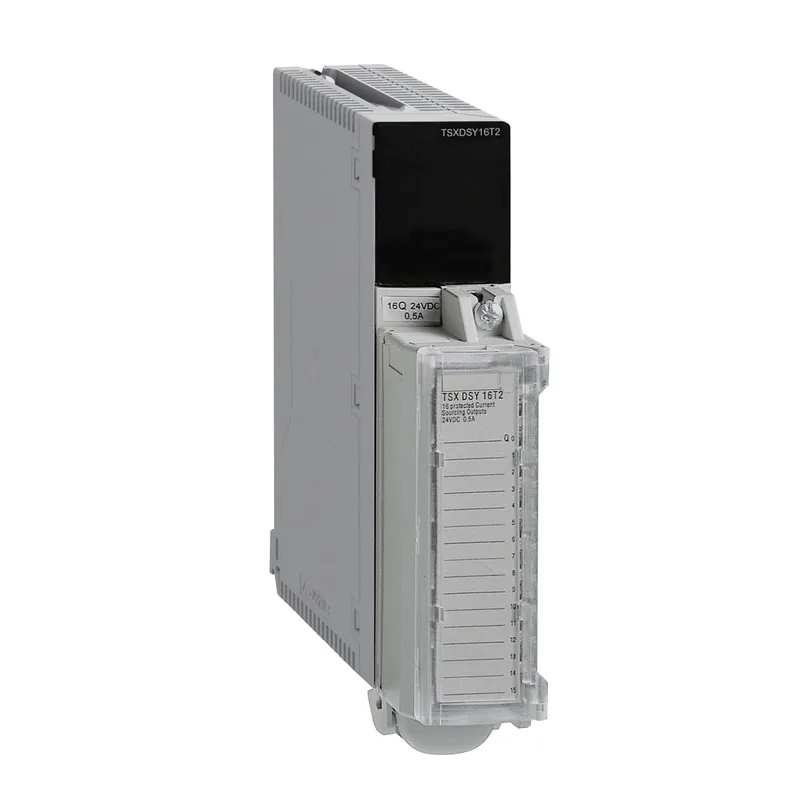

Schneider Electric TSXDSY16T2C – discrete output module - 16 solid state protected - 24 V DC - 500 mA
Discontinued by Schneider Electric — we can still source the original TSXDSY16T2C (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3595863938197 |
| Recommended replacement | BMXDDO1602H |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDSY16T2C now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDSY16T2C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDO1602H as its successor — we can quote both.
When can TSXDSY16T2C be shipped?
TSXDSY16T2C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDSY16T2C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDSY16T2C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDSY16T2C, subject to availability and destination.
Schneider Electric TSXDSY16T2C — discrete output module - 16 solid state protected - 24 V DC - 500 mA (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMXDDO1602H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 16 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive conforming to EN/IEC 61131-2 19...30 V |
| Discrete output current | 500 mA |
Complementary
| Current per channel | 0.625 A |
| Maximum current per module | 7 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 1.2 V |
| Response time | 1.2 ms |
| Switching frequency | 0.5/LI² Hz |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Electronic tripping on reactivation |
| Short-circuit protection | Electronic tripping on reactivation |
| Preactuator voltage detection threshold | 16 V |
| Minimum load impedance | 48 W |
| isalotion resistance | > 10 MOhm 500 V |
| Power dissipation | (1.1 W + 0.75 W x No of outputs x current per module) |
| Marking | CE |
| Electrical connection | Screw terminal block |
| Current consumption | 80 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.34 kg |
Environment
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Standards | 92/31/EEC; 89/336/EEC; 93/68/EEC; UL 508; CSA C22.2 No 213 Class I Division 2 Group D; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group B; IEC 61131-2; CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | RMRS; BV; ABS; LR; RINA; GL; DNV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | Conformal coating Humiseal 1A33; TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXDSY16T2C |
More Schneider Electric parts
Available on requestdiscrete output module - 16 relay not protected - 12..24 V DC - 3 A
Available on requestdiscrete output module Modicon Premium - 16 O solid state
Available on requestdiscrete output module Modicon Premium - 16 O solid state
Available on requestdiscrete output module Modicon Premium - 16 O solid state
Available on requestdiscrete output module Modicon Premium - 16 O solid state
Available on requestdiscrete output module Modicon Premium - 32 O solid state
Available on requestdiscrete output module - 32 solid state protected - 24 V DC
Available on requestdiscrete output module Modicon Premium - 64 O solid state
