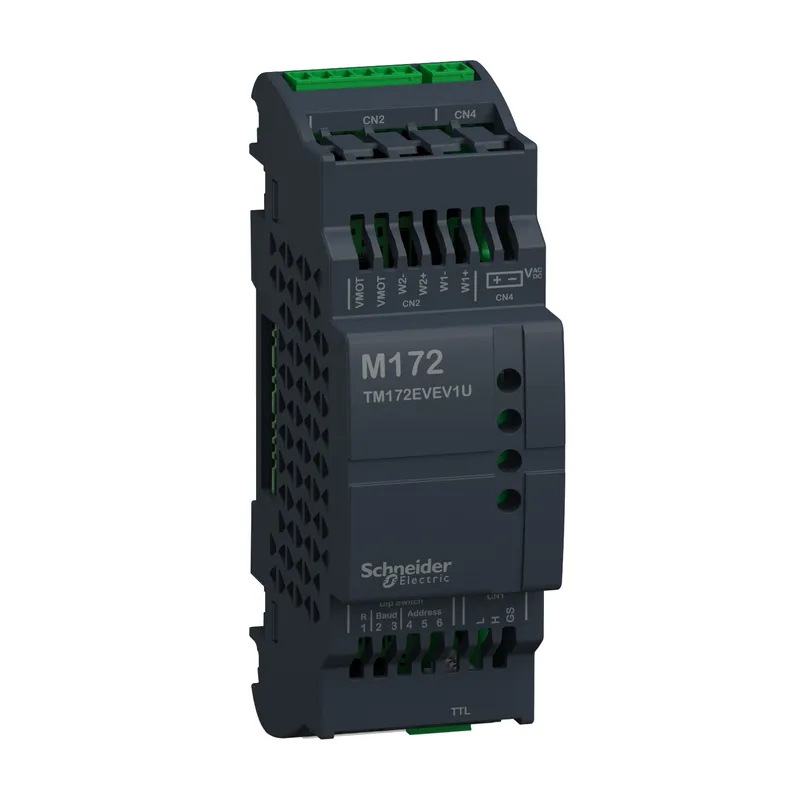

Schneider Electric TM172EVEV1U

M172 Expansion 1 EEV Driver Unipolar

MPN: TM172EVEV1U
EAN: 3606481893284
Category: Modicon M171/M172/M173

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM172EVEV1U?

This driver belongs to Modicon M171/M172 range of controllers. It is an electronic expansion valve drivers for single valve, unipolar, and communicate with controllers via CAN expansion bus. It figures one CAN port and one removable 3-way screw connector. It is supplied with screw terminal blocks. its power consumption is 9W at 24V DC. It weighs 0.087kg. It measures 36mm wide, 113mm high, 60mm deep. It is designed to control electronic expansion valves used in various types of refrigeration systems. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with Modicon M172 Optimized and Modicon M172 Performance logic controllers. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Expansion unit

Complementary

Number of port	1 CAN port - 1 removable 3-way screw connector
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	9 W at 24 V DC
Maximum power consumption in VA	12 VA at 24 V AC
Display type	Without display
Overvoltage category	I
Mounting support	DIN rail
Width	36 mm
Height	113 mm
Depth	60 mm
Net weight	0.087 kg

Environment

Product certifications	CE; CSA; EAC; RCM; cURus
Standards	EN 60730-1; EN 60730-2-9; UL 60730-1; UL 60730-2-9; CAN/CSA-E60730-1; CSA E60730-2-9; IEC 6100-4-2; IEC 6100-4-3; IEC 6100-4-4; IEC 6100-4-5; IEC 6100-4-6; IEC 6100-4-11; EN 60068-2-27; EN 60068-2-6 Fc; UL94 (material V0)
Ambient air temperature for operation	-20…65 °C
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TM172EVEV1UPDF
