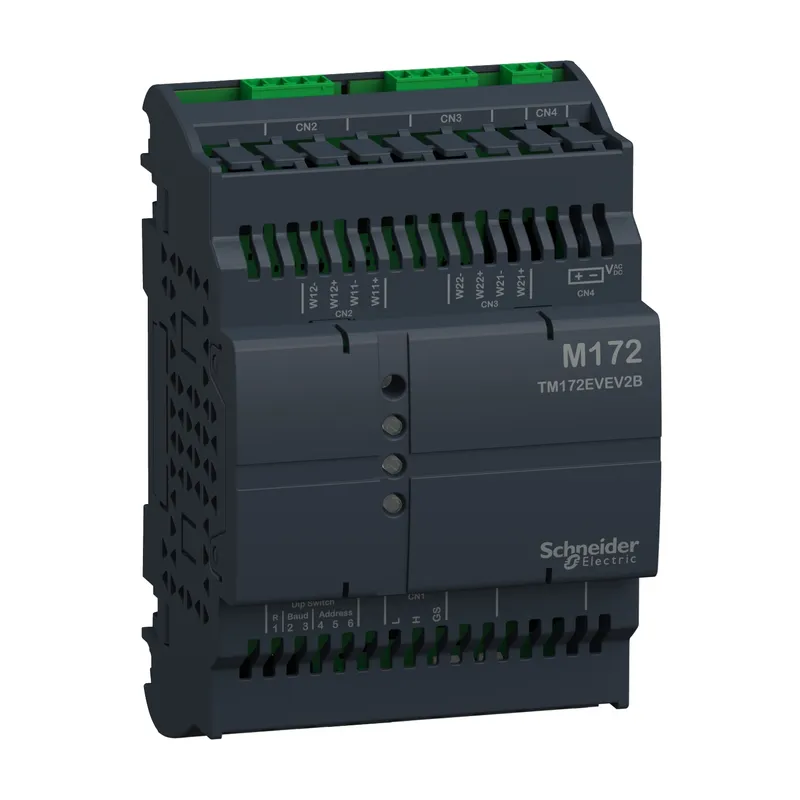

Schneider Electric TM172EVEV2B – M172 Expansion 2 EEV Driver Bipolar

Name: Schneider Electric TM172EVEV2B – M172 Expansion 2 EEV Driver Bipolar
Brand: Schneider Electric
SKU: TM172EVEV2B

MPN: TM172EVEV2B · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M171/M172/M173
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	IT
UPC / EAN	3606481893307
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM172EVEV2B be shipped?

TM172EVEV2B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM172EVEV2B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM172EVEV2B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM172EVEV2B, subject to availability and destination.

This driver belongs to Modicon M171/M172 range of controllers. It is an electronic expansion valve drivers for dual valves, bipolar, and communicate with controllers via CAN expansion bus. It figures one CAN port and one removable 3-way screw connector. It is supplied with screw terminal blocks. its power consumption is 30W at 24V DC. It weighs 0.119kg. It measures 72mm wide, 113mm high, 60mm deep. It is designed to control electronic expansion valves used in various types of refrigeration systems. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with Modicon M172 Optimized and Modicon M172 Performance logic controllers. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Expansion unit

Complementary

Number of port	1 CAN port - 1 removable 3-way screw connector
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	30 W at 24 V DC
Maximum power consumption in VA	30 VA at 24 V AC
Display type	Without display
Overvoltage category	I
Mounting support	DIN rail
Width	72 mm
Height	113 mm
Depth	60 mm
Net weight	0.119 kg

Environment

Product certifications	CE; CSA; EAC; RCM; cURus
Standards	EN 60730-1; EN 60730-2-9; UL 60730-1; UL 60730-2-9; CAN/CSA-E60730-1; CSA E60730-2-9; IEC 6100-4-2; IEC 6100-4-3; IEC 6100-4-4; IEC 6100-4-5; IEC 6100-4-6; IEC 6100-4-11; EN 60068-2-27; EN 60068-2-6 Fc; UL94 (material V0)
Ambient air temperature for operation	-20…65 °C
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2
