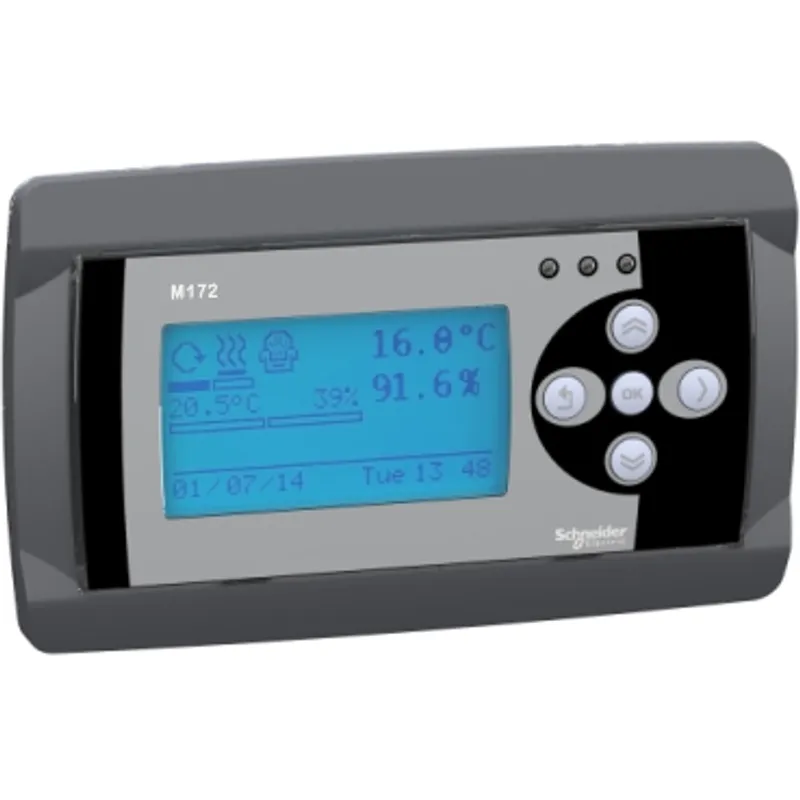

Schneider Electric TM172DGRP
Modicon M172 Performance Display Graphic
- MPN
- TM172DGRP
- EAN
- 3606482071650
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric TM172DGRP?
This display belongs to Modicon M171/M172 range of HVAC controllers. This display module features a backlit LCD display with 240 x 140 pixels resolution. The number of keys in the display module is 5. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It has a monochrome backlit LCD screen with 240 x 140 pixels reolution. It embeds a real time clock. Its dimensions are 90mm (width) x 27mm (depth) x 160mm (height). It weighs 0.197kg. It is remote display for blind Modicon M172 logic controllers. This product is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172 controllers is the best choice for complete automation solutions for HVAC machines. Modicon M171 and M172 logic controllers are designed for HVAC OEMs and help them to maximize profitability and energy efficiency.
Specifications
Specifications
| Range of product | Modicon M171/M172 |
| Product or component type | Display module |
| Display colour | Monochrome |
| Supply | External source |
| Display type | Backlit LCD |
| Number of key | 5 |
| Display resolution | 128 x 64 pixels |
| Colour | Grey |
| [Us] rated supply voltage | 24 V AC/DC |
| Power consumption in W | 2 W |
| Marking | CE |
| Realtime clock | With clock |
| Local signalling | 3 LEDs (green) |
| Product compatibility | Logic controller M171 performance |
| Height | 160 mm |
| Width | 90 mm |
| Depth | 27 mm |
| Net weight | 0.197 kg |
| Standards | UL 94 |
| Product certifications | cURus |
Packaging
| Package 1 | 1 PCE, 18.700 cm × 9.300 cm × 13.400 cm (L × W × H), 262.000 g |
| Package 2 | 6 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.823 kg |
