Schneider Electric TM172E12R

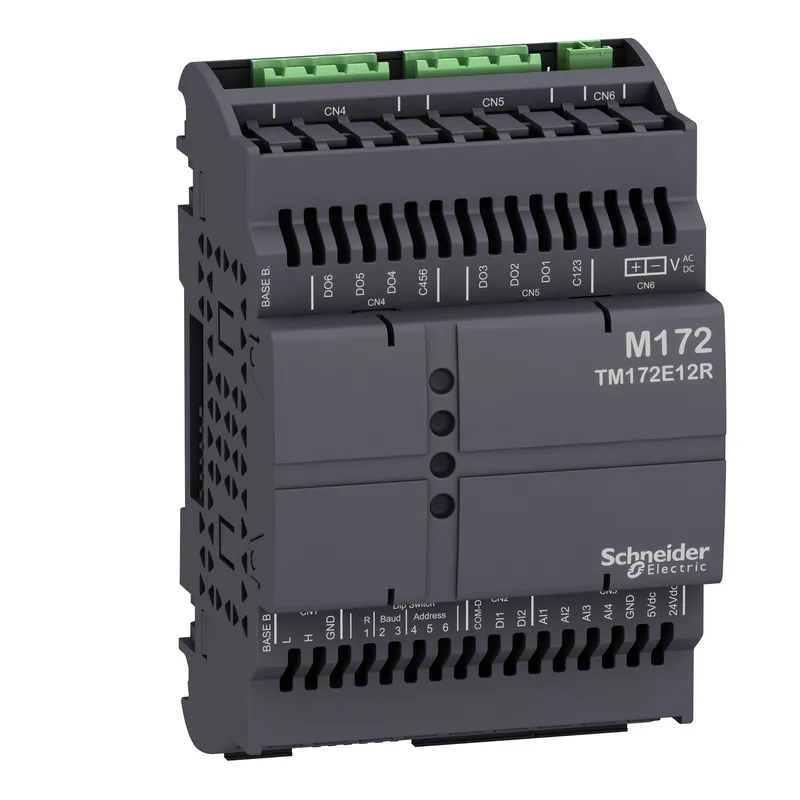

Modicon M172 Optimized and Performance expansion 12 I/Os

MPN: TM172E12R
EAN: 3606481267610
Category: Modicon M171/M172/M173

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM172E12R?

"This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This additional I/O module offers 2 digital inputs, 4 analog inputs, and 6 digital outputs." "It is connected via the CAN expansion bus of the M172 and M173 logic controllers." "It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers." "DIs are high-speed counters. The AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs." "DOs are SPST 3A with the same common." "It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.140kg." "It allows the expansion of the number of IOs on the HVAC controllers." "It is certified by CE, RCM, EAC, CSA and CURus." "It is compatible with M173 Optimized and M172 logic controllers." "It is sold in a 1-piece package." "It mounts on 35mm DIN rail." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Additional I/O module
Product specific application	HVAC control
Total inputs/outputs	12
Discrete input number	2
Discrete output number	3 for relay outputs SPST with same common
Discrete output current	3 A for relay SPST
Analogue input number	4 configurable by pair

Complementary

Number of port	1 CAN port - screw terminal block
Input/output number	6 digital output(s); 4 analog input(s); 2 digital input(s)
Discrete input logic	Positive logic (sink) up to 2 kHz
Discrete input voltage	24 V AC/DC
Discrete input current	2.5 mA AC/DC
Input impedance	20 kOhm
Analogue input type	NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); current 0...20 mA - resolution: 1 digit at < 150 Ohm; current 4...20 mA - resolution: 1 digit at < 150 Ohm; voltage 0...10 V - resolution: 1 digit at > 10 kOhm; voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric); impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm; impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm; Pt 100/Pt 1000 PTC - 55...150 °C - resolution: 0.1 °C at 2 kOhm; direct input - resolution: 1 digit (Dry contact); Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm
Measurement accuracy	NTC NK103 - 40...+110 °C +/- 1 °C; NTC NK103 110...137 °C +/- 1.9 °C; NTC 103AT-2 - 50…110 °C +/- 1 °C; PTC - 55...+135 °C +/- 1.1 °C; PTC - 150…135 °C +/- 3.1 °C; Pt 1000 - 200...-100 °C +/- 5 °C; Pt 1000 - 100...-50 °C +/- 3 °C; Pt 1000 - 50...+200 °C +/- 1.5 °C; Pt 1000 200...600 °C +/- 15 °C; Pt 1000 600...850 °C +/- 30 °C; 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit; 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit; 4...20 mA +/- 1 % of full scale +/- 1 digit; 0...10 V +/- 1 % of full scale +/- 1 digit; 0...5 V +/- 1 % of full scale +/- 1 digit; HOhm 0...700 hOhm +/- 10 hOhm; HOhm 700 hOhm...1200 hOhm +/- 25 hOhm; HOhm 1200 hOhm...1500 hOhm +/- 60 hOhm; DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply	5 V DC at 50 mA; 24 V DC at 125 mA
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	20 VA at 24 V AC; 10 W at 24 V DC
Realtime clock	Without clock
Display type	Without display
Overvoltage category	II
Mounting support	Panel mounting with accessory; DIN rail
Width	72 mm
Height	110 mm
Depth	59 mm
Net weight	0.14 kg

Environment

Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Standards	IEC 61000-4-11; EN 60068-2-6 Fc; IEC 61000-4-5; EN 60730-2-9; EN 60730-1; IEC 61000-4-2; UL 60730-2-9; IEC 61000-4-4; CSA E60730-2-9; CAN/CSA-E60730-1; IEC 61000-4-3; EN 60068-2-27; UL94 (material V0)
Product certifications	CE; RCM; cURus; CSA; EAC
Ambient air temperature for operation	-20…65 °C conforming to UL 60730-1
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2
