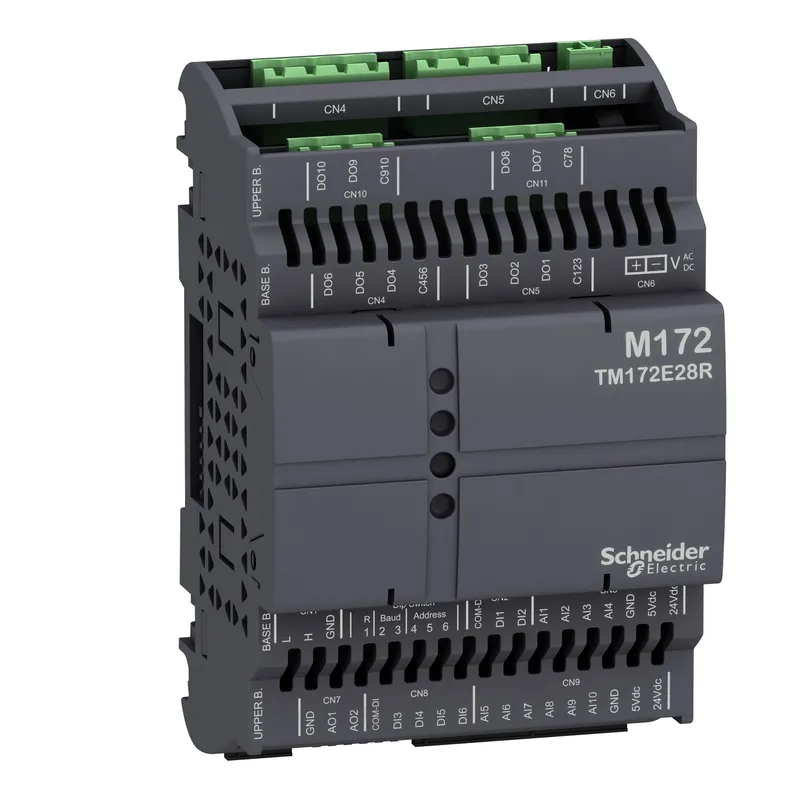

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Additional I/O module
Product specific application	HVAC control
Total inputs/outputs	28
Discrete input number	2; 4
Discrete output number	3 for relay outputs SPST with same common; 2 for relay outputs SPST with same common
Discrete output current	3 A for relay SPST
Analogue input number	10 configurable by pair
Analogue output number	2 programmable

Complementary

Number of port	1 CAN port - screw terminal block
Input/output number	2 analog output(s); 6 digital input(s); 10 analog input(s); 10 digital output(s)
Discrete input logic	2 positive logic (sink) up to 2 kHz; 4 positive logic (sink)
Discrete input voltage	24 V AC/DC
Discrete input current	2.5 mA AC/DC
Input impedance	20 kOhm
Analogue input type	NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); current 0...20 mA - resolution: 1 digit at < 150 Ohm; current 4...20 mA - resolution: 1 digit at < 150 Ohm; voltage 0...10 V - resolution: 1 digit at > 10 kOhm; voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric); impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm; impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm; direct input - resolution: 1 digit (Dry contact); PTC - 55...150 °C - resolution: 0.1 °C at 2 kOhm; Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm
Measurement accuracy	NTC NK103 - 40...+110 °C +/- 1 °C; NTC NK103 110...137 °C +/- 1.9 °C; NTC 103AT-2 - 50…110 °C +/- 1 °C; PTC - 55...+135 °C +/- 1.1 °C; PTC - 150…135 °C +/- 3.1 °C; Pt 1000 - 200...-100 °C +/- 5 °C; Pt 1000 - 100...-50 °C +/- 3 °C; Pt 1000 - 50...+200 °C +/- 1.5 °C; Pt 1000 200...600 °C +/- 15 °C; Pt 1000 600...850 °C +/- 30 °C; 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit; 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit; 4...20 mA +/- 1 % of full scale +/- 1 digit; 0...10 V +/- 1 % of full scale +/- 1 digit; 0...5 V +/- 1 % of full scale +/- 1 digit; HOhm 0...700 hOhm +/- 10 hOhm; HOhm 700 hOhm...1200 hOhm +/- 25 hOhm; HOhm 1200 hOhm...1500 hOhm +/- 60 hOhm; DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply	5 V DC at 50 mA; 24 V DC at 125 mA
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	24 VA at 24 V AC; 15 W at 24 V DC
Realtime clock	Without clock
Display type	Without display
Overvoltage category	II
Mounting support	DIN rail; Panel mounting with accessory
Width	72 mm
Height	110 mm
Depth	59 mm
Net weight	0.19 kg

Environment

Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Standards	IEC 61000-4-4; EN 60068-2-27; CSA E60730-2-9; IEC 61000-4-11; CAN/CSA-E60730-1; UL 60730-2-9; EN 60730-2-9; EN 60730-1; IEC 61000-4-5; IEC 61000-4-3; EN 60068-2-6 Fc; IEC 61000-4-2; UL94 (material V0)
Product certifications	cURus; EAC; CE; RCM; CSA
Ambient air temperature for operation	-20…65 °C conforming to UL 60730-1
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2
