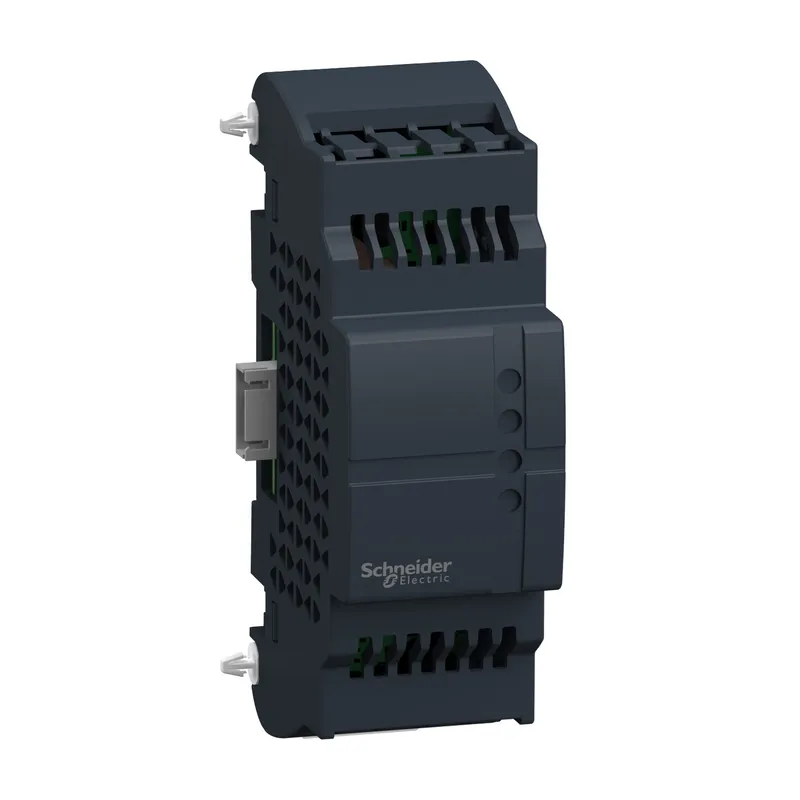

Schneider Electric TM172EVEVBAT – Modicon M172 EEV Driver battery backup
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M171/M172/M173 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | IT |
| UPC / EAN | 3606481893314 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can TM172EVEVBAT be shipped?
TM172EVEVBAT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM172EVEVBAT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM172EVEVBAT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM172EVEVBAT, subject to availability and destination.
This accessory belongs to Modicon M171/M172 range of controllers. It is a battery backup for electronic expansion valve drivers, and should be ordered separately. It weighs 0.157kg. It measures 36mm wide, 110mm high, 60mm deep. It provides power when the primary source of power is unavailable. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with TM172EVEV1U TM172EVEV1B TM172EVEV2B electronic expansion valve drivers. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M171/M172 |
| Accessory / separate part category | Electrical accessory |
| Accessory / separate part type | Battery |
Complementary
| Product compatibility | Modicon M172 expansion EEV |
| Battery life | 0…5 year(s) |
| Battery power in VAh | 0.06 VAh |
| Accessory / separate part destination | Electronic expansion valve module |
| Width | 36 mm |
| Depth | 60 mm |
| Height | 110 mm |
| Net weight | 0.157 kg |
Environment
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -30…70 °C |
| Relative humidity | 5…95 % non-condensing |
| Standards | UL94 (material V0) |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TM172EVEVBAT |
