Schneider Electric SSLZVA1
Socket equipped with LED and protection circuit, Harmony Solid State Relays, for SSL relays, screw connec to rs, 5 to 24V DC
- MPN
- SSLZVA1
- EAN
- 3606480580123
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

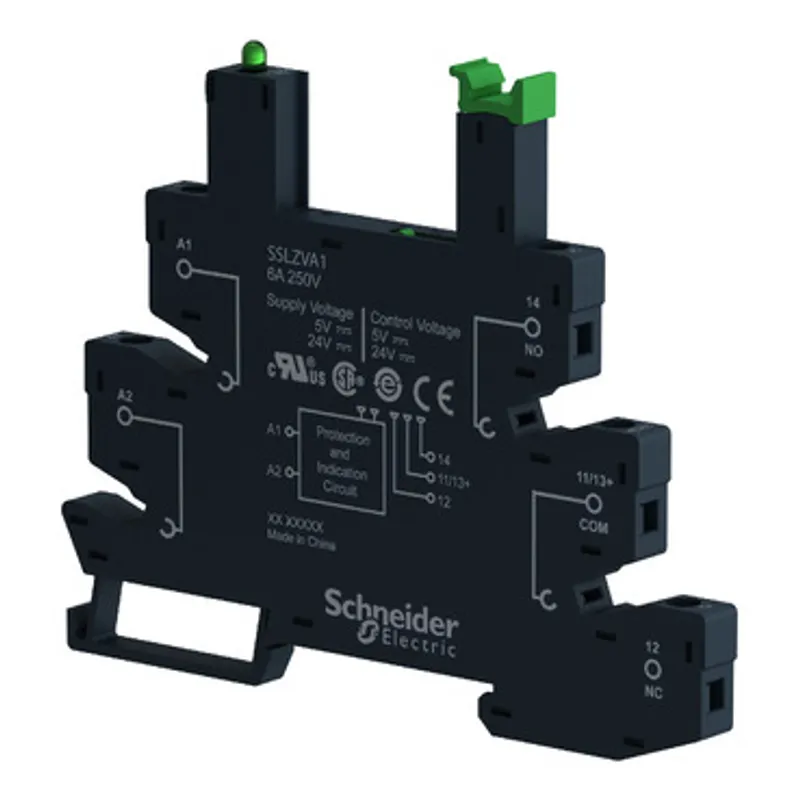

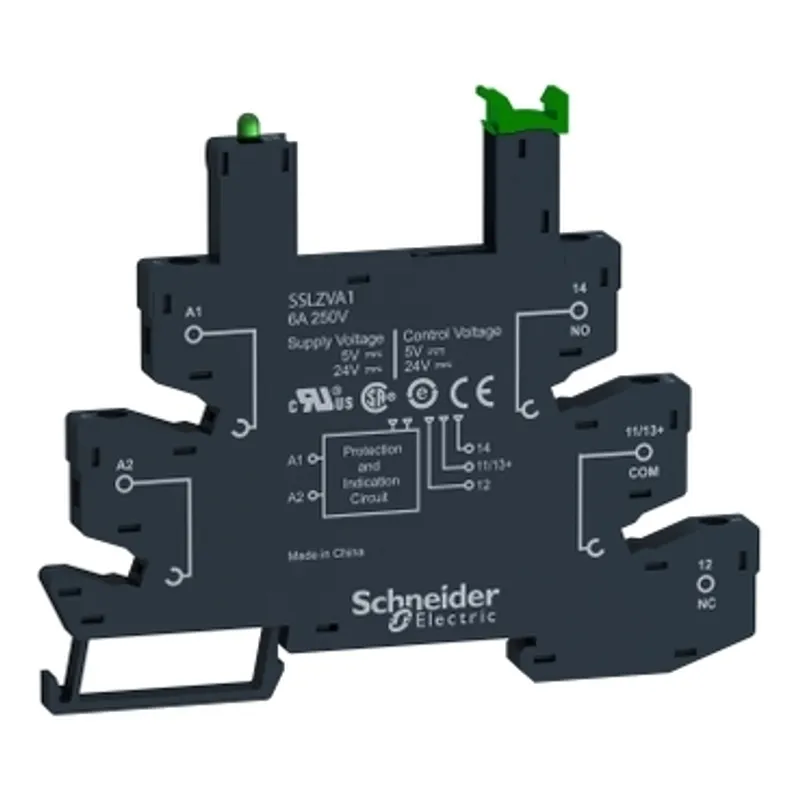

What is the Schneider Electric SSLZVA1?
This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSLZ |
| Product or component type | Socket for SSL1 |
| Product compatibility | Solid state relay SSL with NO contact at 24 V DC, Solid state relay SSL with NO contact at 5 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 5 V DC, 24 V DC |
| [Ue] rated operational voltage | < 250 V DC |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Fixing mode | Clip-on (35 mm DIN rail) |
| Sale per indivisible quantity | 10 |
| Local signalling | LED (green) for input status |

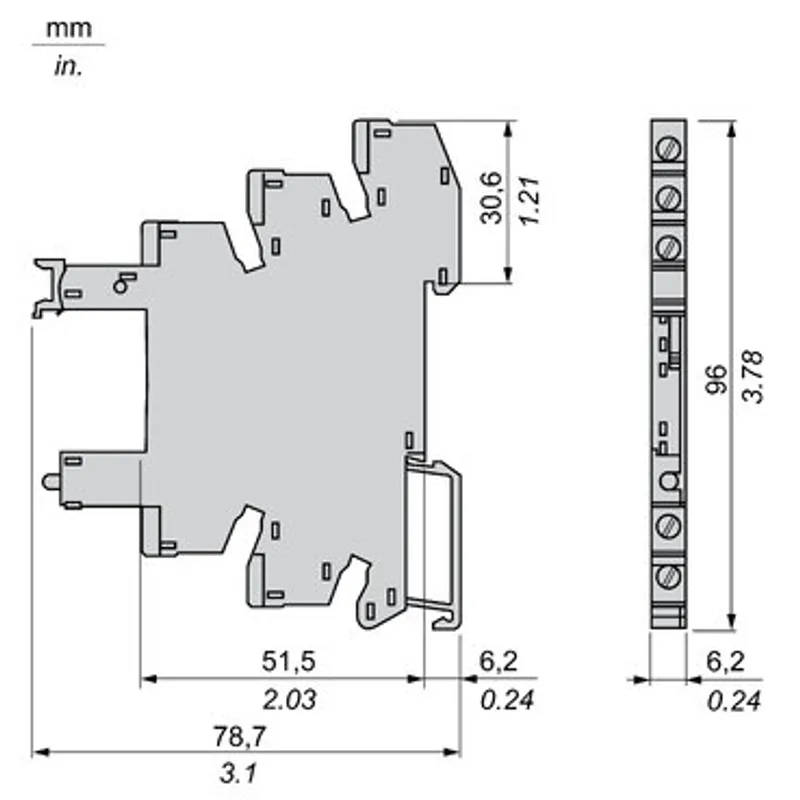

| Width | 6.2 mm |
| Height | 96 mm |
| Depth | 78.6 mm |
| Net weight | 0.0285 kg |
| Standards | IEC 61984 |
| Product certifications | CSA C22-2 No 14, UL 508 |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Flame retardance | V0 conforming to UL 94 |
Packaging
| Package 1 | 1 PCE, 9.700 cm × 0.800 cm × 8.000 cm (L × W × H), 23.000 g |
| Package 2 | 10 BB1, 10.300 cm × 8.700 cm × 7.000 cm (L × W × H), 258.000 g |
| Package 3 | 300 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.332 kg |
