Schneider Electric SSLZRA1
Socket equipped with LED and protection circuit, Harmony Solid State Relays, for SSL relays, spring terminals, 5 to 24V DC
- MPN
- SSLZRA1
- EAN
- 3606480580161
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSLZRA1?
"This Harmony SSL socket for solid state slim interfacing relay has spring terminals and a rated voltage of 5V DC." "It also offers clear circuit labelling on the sides to facilitate installation and maintenance." "It features a visual indicator LED for a simpler troubleshooting and commissioning." "Its clear schematic on the side of the socket enables easier wiring and maintenance."
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSLZ |
| Product or component type | Socket for SSL1 |
| Product compatibility | Solid state relay SSL with NO contact at 24 V DC, Solid state relay SSL with NO contact at 5 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 5 V DC, 24 V DC |
| [Ue] rated operational voltage | < 250 V DC |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end, Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Clamping force | 10…40 N |
| Fixing mode | Clip-on (35 mm DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Local signalling | LED (green) for input status |

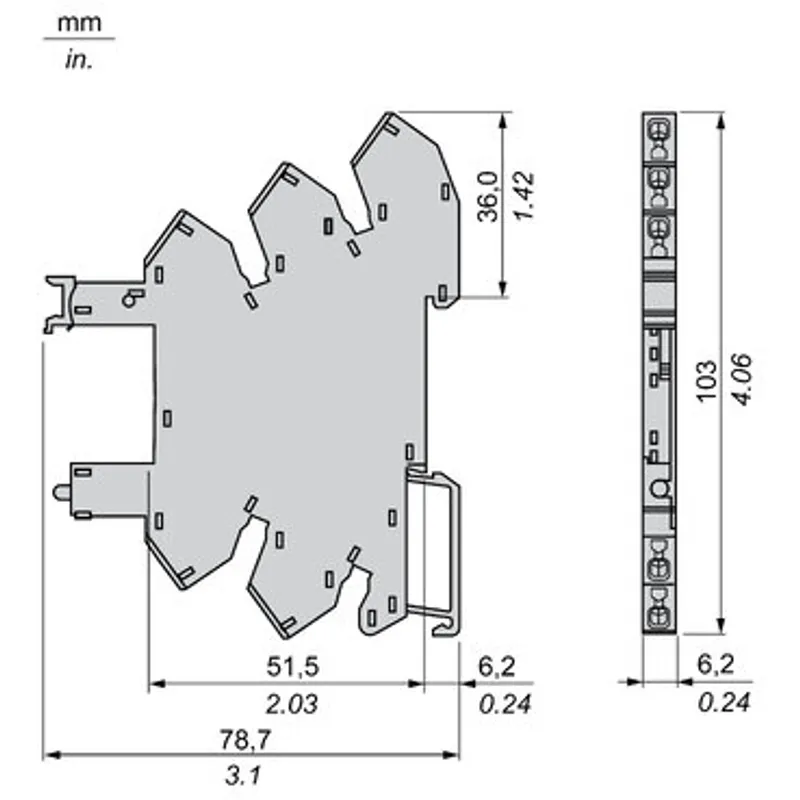

| Width | 6.2 mm |
| Height | 103 mm |
| Depth | 78.6 mm |
| Net weight | 0.0285 kg |
| Standards | IEC 61984 |
| Product certifications | UL 508, CSA C22-2 No 14 |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Flame retardance | V0 conforming to UL 94 |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 8.000 cm × 0.600 cm (L × W × H), 23.000 g |
| Package 2 | 10 BB1, 10.700 cm × 7.100 cm × 8.500 cm (L × W × H), 252.000 g |
| Package 3 | 300 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.280 kg |
