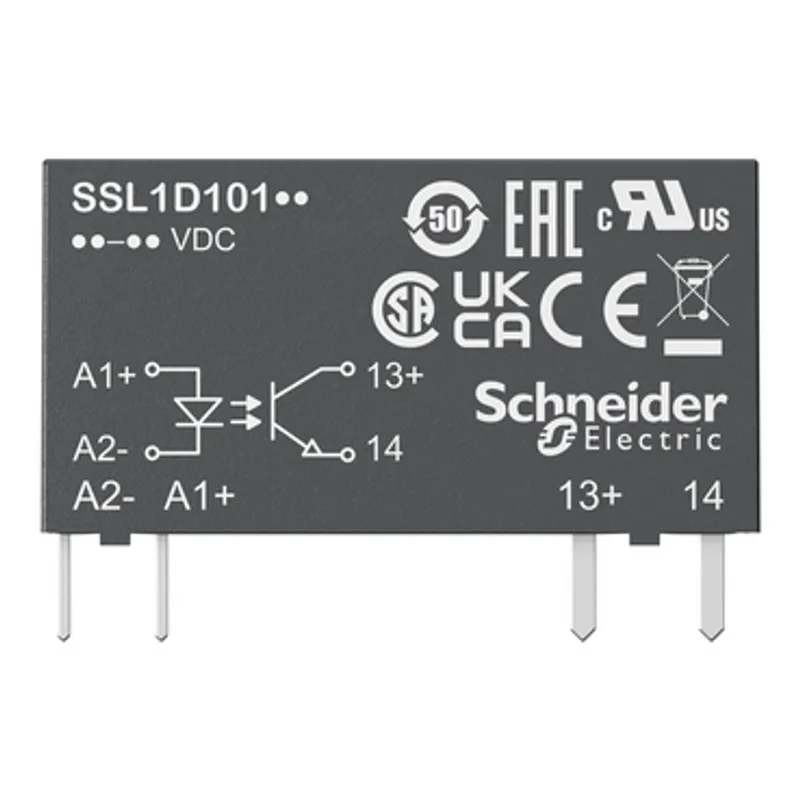

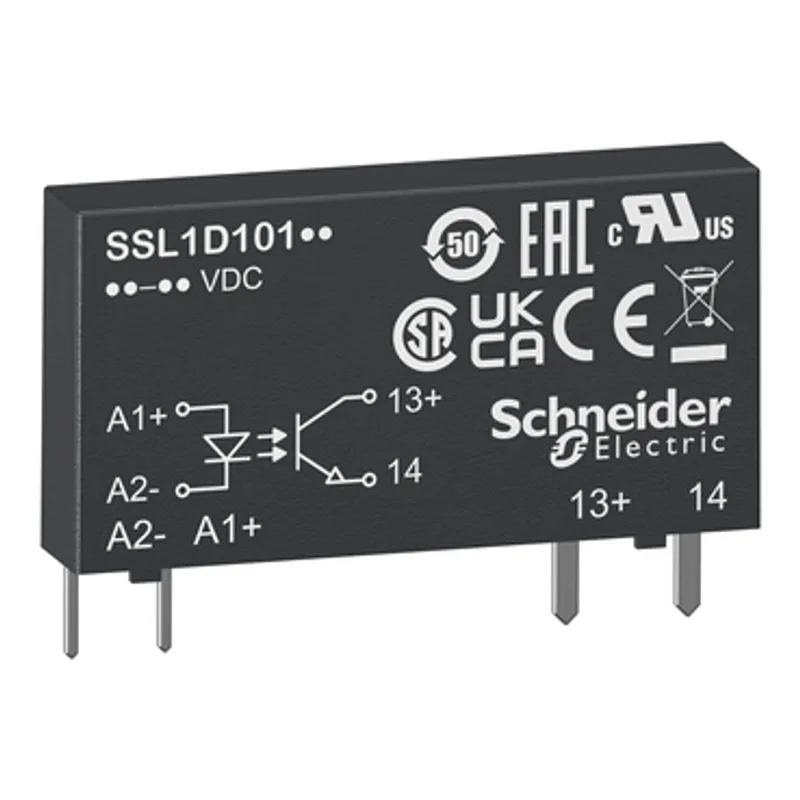

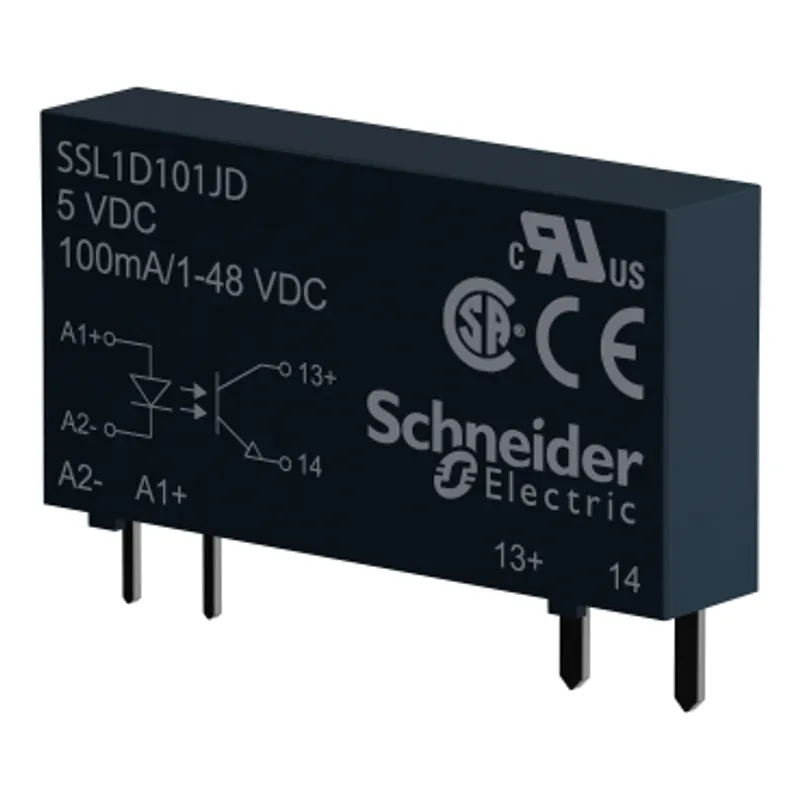

Schneider Electric SSL1D101JD

Plug in relay, Harmony Solid State Slim Relays, 0.1A, DC switching, input 3 to 12V DC, output 1 to 48V DC

MPN
SSL1D101JD
EAN
3606480579677
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SSL1D101JD?

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments.

Specifications

Specifications

Range of productHarmony Solid State Relays
Device short nameSSL
Network number of phases1 phase
[Uc] control circuit voltage3...12 V DC
Output switching modeDC switching
Ui rated insulation voltage48 V
Insulation resistance> 100 MOhm at 500 V DC
Electromagnetic compatibilityElectrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3, Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4, Surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5, Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1, Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage5.3 kV for input to case conforming to IEC 62314, 5.3 kV for input/output circuit conforming to UL 508, 5.3 kV for input/output circuit conforming to IEC 62314, 5.3 kV output to case conforming to -, 5.3 kV output to case conforming to IEC 62314, 5.3 kV for input to case conforming to UL 508, 5.3 kV output to case conforming to UL 508
Mounting supportSocket
[In] rated current0.1 A
Output voltage1...48 V DC
Capacitance unbalance2.5 pF input/output
Minimum switching voltage3 V DC turn-on
Maximum switching voltage1 V DC turn-off
Input current4 mA
Input impedance1250 Ohm
Solid state output typeTransistor output, DC switching
Load current0.001…0.1 A
Transient Overvoltage60 V
Maximum operating frequency500 Hz
Surge current0.3 A for 10 ms
Maximum voltage drop<1 V on-state
Maximum leakage current0.001 mA off-state
Response time0.02 ms (turn-on), 0.13 ms (turn-off)
Overvoltage categoryIII

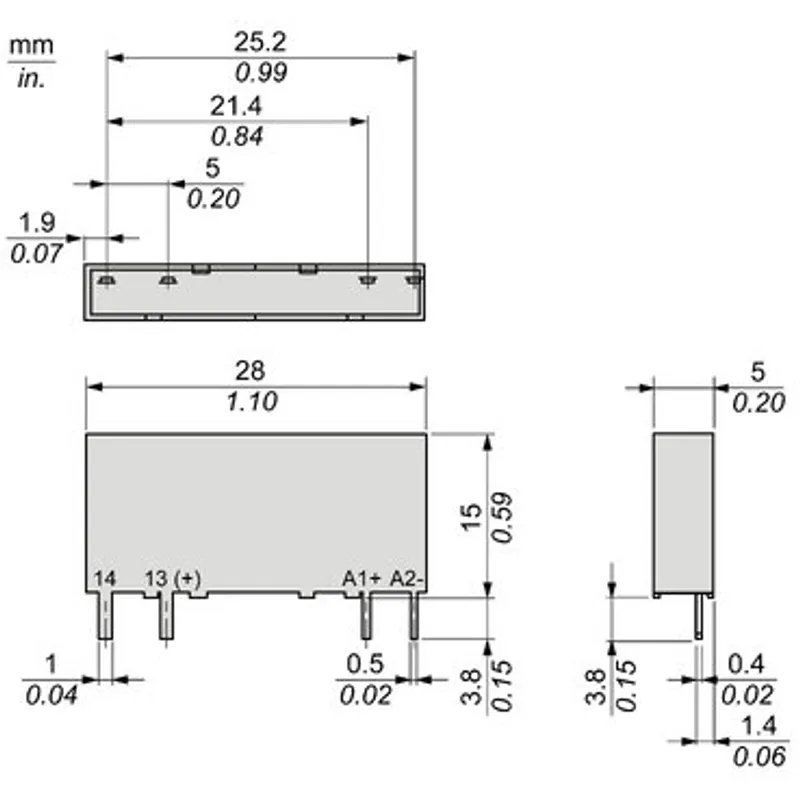

Width5 mm
Height28 mm
Depth15 mm
Net weight0.0041 kg
Device presentationComplete product
Flame retardanceV0 conforming to UL 94
Dielectric strength3750 V for input/output
Pollution degree2
StandardsIEC/EN 60947-1, IEC/EN 62314, UL 508, C22.2 No. 14
Product certificationscURus, CSA, EAC, CE, UKCA
MarkingCE
IP degree of protectionIP00
Ambient air temperature for operation-20…80 °C
Ambient air temperature for storage-20…85 °C

Packaging

Package 11 PCE, 37.000 cm × 2.500 cm × 0.700 cm (L × W × H), 4.000 g
Package 212 BB1, 37.000 cm × 2.500 cm × 0.700 cm (L × W × H), 62.000 g
Package 31080 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 5.684 kg
