Schneider Electric SSL1D101BDPV
Pre assembled relay, Harmony Solid State Relays, 0.1A, DC switching, screw sockets, input 16 to 30V DC, output 1 to 48V DC
- MPN
- SSL1D101BDPV
- EAN
- 3606489562984
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSL1D101BDPV?

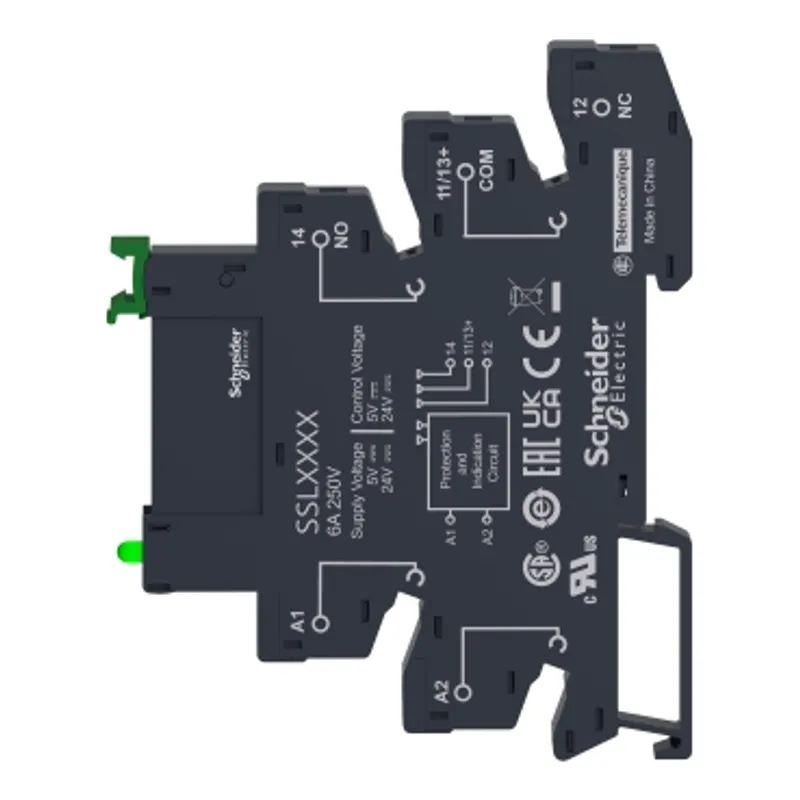

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 0.1A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 48Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 16...30 V DC |
| Connections - terminals | Flexible cable with cable end,clamping capacity: 0.2...2.5 mm² (AWG 24...AWG 14), Solid cable with cable end,clamping capacity: 0.2...2.5 mm² (AWG 24...AWG 14) |
| Output switching mode | DC switching |
| Mounting support | Screw socket |
| [In] rated current | 0.1 A |
| Output voltage | 1...48 V DC |
| CLAMPING FORCE | < 0.5 N.m, 4.4 lb-in |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 16 V DC turn-on |
| Maximum switching voltage | 5 V DC turn-off |
| Input impedance | 3.43 kOhm |
| Solid state output type | Transistor output, DC switching |
| Load current | 0.001…0.1 A |
| Transient Overvoltage | 60 V DC |
| Surge current | 0.3 A for 10 ms |
| Maximum voltage drop | <1 V on-state |
| Maximum leakage current | 0.001 mA off-state |
| Response time | 0.25 ms (turn-on), 0.12 ms (turn-off) |
| Overvoltage category | III |

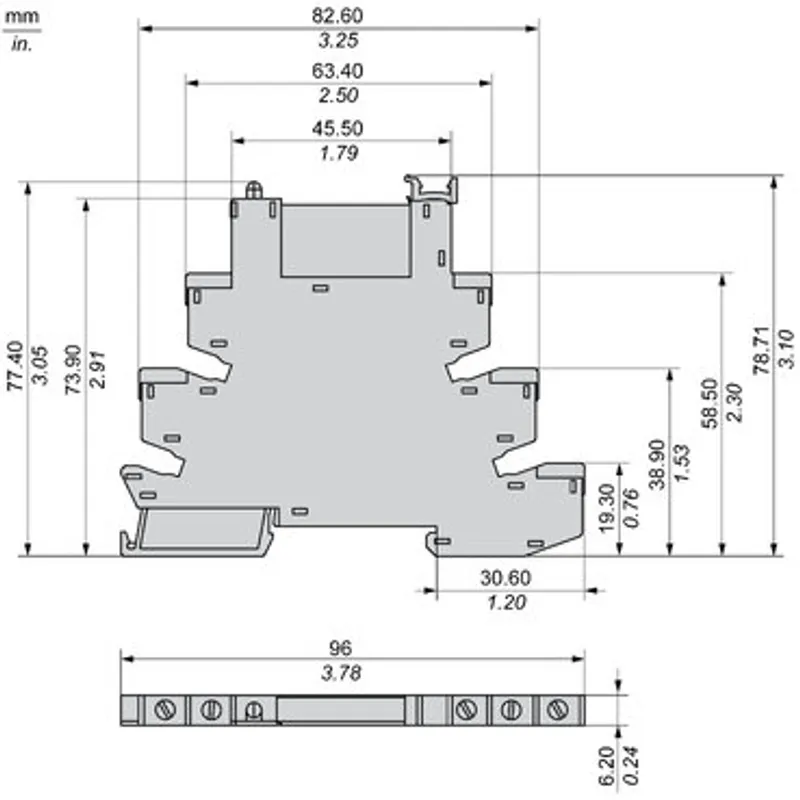

| Width | 6.2 mm |
| Height | 96.5 mm |
| Depth | 79.5 mm |
| Net weight | 0.0285 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Product certifications | UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST |
| Marking | CURus, CSA, CE, EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -20…85 °C |
Packaging
| Package 1 | 1 PCE, 9.700 cm × 8.000 cm × 0.600 cm (L × W × H), 27.000 g |
| Package 2 | 30 BB1, 20.000 cm × 10.000 cm × 9.000 cm (L × W × H), 915.000 g |
| Package 3 | 60 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.744 kg |
