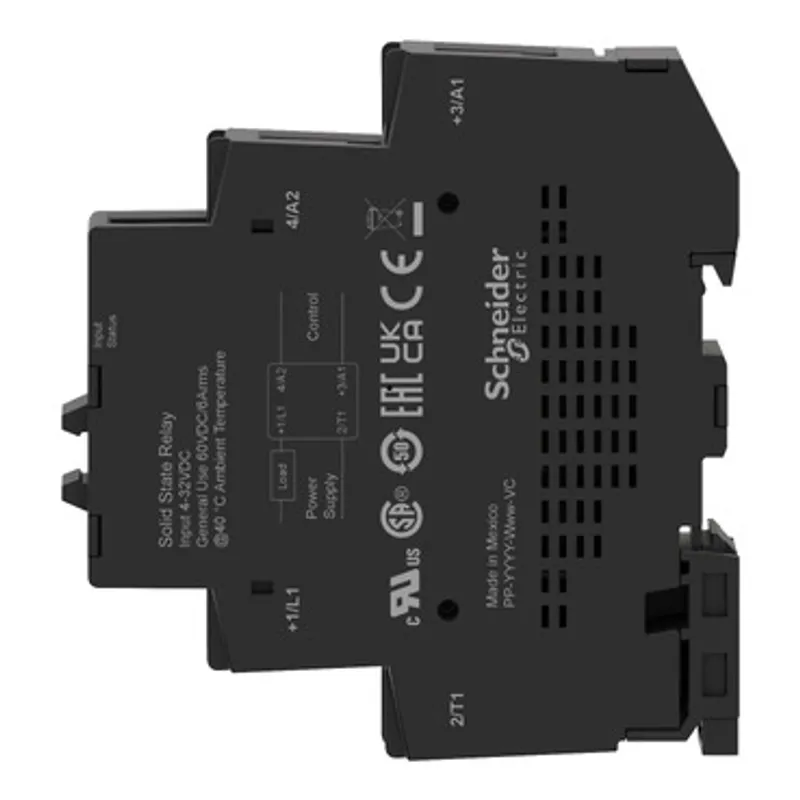

Schneider Electric SSM1A16B7

Single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 18 to 36V AC, output 24 to 280V AC

MPN
SSM1A16B7
EAN
3606480579394
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SSM1A16B7?

This modular relay belongs to the Schneider Electric's Harmony Solid State relays range. This Harmony SSM is a 1-phase relay, with zero voltage switching, ideal for resistive loads. It is rated 6A, is controlled with a 18V to 36V AC input, has a rated load voltage of 24V to 280V AC. It is silent, reliable, and has a longer operational life thanks to the absence of moving contacts. It has a visual indicator showing the status of its input, and also has a clear schematic on the side of the socket, enabling easier wiring and maintenance. The SSM relay socket connection is by screw connector type. Its dimensions are 11mm (width) x 90.3mm (height) x 83.7mm (depth) and weighs 0.05 Kg. It comes with IP20 degree of protection. Its design fits industrial machines, packaging, textiles, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, and lighting controls. Product that conforms to IEC 61000, IEC 60950-1, and IEC 62314 standards and certifications like CE, UL, CSA, ROHS and REACH. The SSM comes with a built-in heatsink for maximum performance and fewer spare parts to manage. It is designed for symmetrical DIN rail mounting. Solid State relays are silent and reliable thanks to the absence of moving contacts which in turn provides longer operational lifecycle.

Specifications

Specifications

Range of productHarmony Solid State Relays
Device short nameSSM
Product or component typeModular DIN rail relay
Number of channels1
Number of phases1 phase
Output switching modeZero voltage switching
Product configuration typeRelay configuration
Mounting supportSymmetrical DIN rail
[In] rated current6 A
Output voltage24...280 V AC
[Uc] control circuit voltage18...36 V AC
Tightening torque0.5...0.8 N.m for input, 0.5...0.8 N.m for output
Connections - terminalsScrew terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input, Screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output
maximum capacitance10 pF for input/output
Insulation resistance1000 MOhm at 500 V DC
Local signallingLED (green) for input status
Minimum switching voltage18 V AC turn-on
Maximum switching voltage4 V AC turn-off
input current3.5…8.5 mA
Solid state output typeZero voltage switching, SCR output
Load current0.15…6 A
transient overvoltage600 V
Surge current285 A for 16.6 ms, 300 A for 20 ms
Maximum voltage drop<1.3 V on-state
Motor power hp0.16 hp 40 °C 240 V AC
Maximum I²t for fusing410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz
Maximum leakage current0.1 mA off-state
DV/dt500 V/µs off-state at maximum voltage
Response time0.5 cycle (turn-on), 30 ms (turn-off)
power factor0.5 (with maximum load)
Overvoltage categoryIII
Width11 mm
Height90.3 mm
test buttonWithout test button
Depth83.7 mm
Net weight0.05 kg
Flame retardanceV0 conforming to UL 94
Dielectric strength4 kV AC for input/output, 4 kV AC for input or output to case
Pollution degree2
StandardsIEC 60950-1, IEC 61000, IEC 62314
Product certificationsCSA, UL
MarkingCE
IP degree of protectionIP20
Ambient air temperature for operation-30…80 °C
Ambient air temperature for storage-30…100 °C

Packaging

Package 11 PCE, 9.000 cm × 9.000 cm × 2.000 cm (L × W × H), 65.000 g
Package 296 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 6.760 kg
