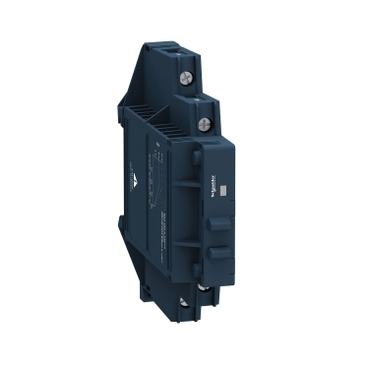

Schneider Electric SSM1A112P7
Single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 200 to 265V AC, output 24 to 280V AC
- MPN
- SSM1A112P7
- EAN
- 3606480579509
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSM1A112P7?
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 200V to 265V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSM |
| Product or component type | Modular DIN rail relay |
| Number of channels | 1 |
| Number of phases | 1 phase |
| Output switching mode | Zero voltage switching |
| Product configuration type | Relay configuration |
| Mounting support | Symmetrical DIN rail |
| [In] rated current | 12 A |
| Output voltage | 24...280 V AC |
| [Uc] control circuit voltage | 200...265 V AC |
| Tightening torque | 0.5...0.8 N.m for input, 0.5...0.8 N.m for output |
| Connections - terminals | Screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input, Screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output |
| maximum capacitance | 10 pF for input/output |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Local signalling | LED (green) for input status |
| Minimum switching voltage | 200 V AC turn-on |
| Maximum switching voltage | 90 V AC turn-off |
| input current | 2.5…3.5 mA |
| Solid state output type | SCR output, Zero voltage switching |
| Load current | 0.15…12 A |
| transient overvoltage | 600 V |
| Surge current | 715 A for 16.6 ms, 750 A for 20 ms |
| Maximum voltage drop | <1.3 V on-state |
| Motor power hp | 0.33 hp 40 °C 240 V AC |
| Maximum I²t for fusing | 2560 A².s for 10 ms at 50 Hz, 2330 A².s for 8.33 ms at 60 Hz |
| Maximum leakage current | 0.1 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on), 30 ms (turn-off) |
| power factor | 0.5 (with maximum load) |
| Overvoltage category | III |
| Width | 18 mm |
| Height | 90.3 mm |
| test button | Without test button |
| Depth | 83.7 mm |
| Net weight | 0.09 kg |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 61000, IEC 62314 |
| Product certifications | CSA, UL |
| Marking | CE |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -30…80 °C |
| Ambient air temperature for storage | -30…100 °C |
Packaging
| Package 1 | 1 PCE, 9.5 cm × 9.0 cm × 2.5 cm (L × W × H), 92.0 g |
| Package 2 | 72 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 6.996 kg |
