RSLZRA2Socket ,Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 48…60V AC DC
Schneider Electric RSLZVA2
Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 48 to 60V AC DC
- MPN
- RSLZVA2
- EAN
- 3606480078033
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RSLZVA2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSLZVA2?
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V ac/dc." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSLZ |
| Product or component type | Socket |
| Device presentation | Basic element |
| Product compatibility | Plug-in relay RSL with 1 C/O contact at 48 V DC, Plug-in relay RSL with 1 C/O contact at 60 V DC |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 48 V AC/DC, 60 V AC/DC |
| Rated operational voltage limits | 43.2...57.6 V, 54...72 V |
| [Ue] rated operational voltage | < 300 V AC |
| Group of product | RSL_CON_48-60 |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Compatibility code | RSLZ |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

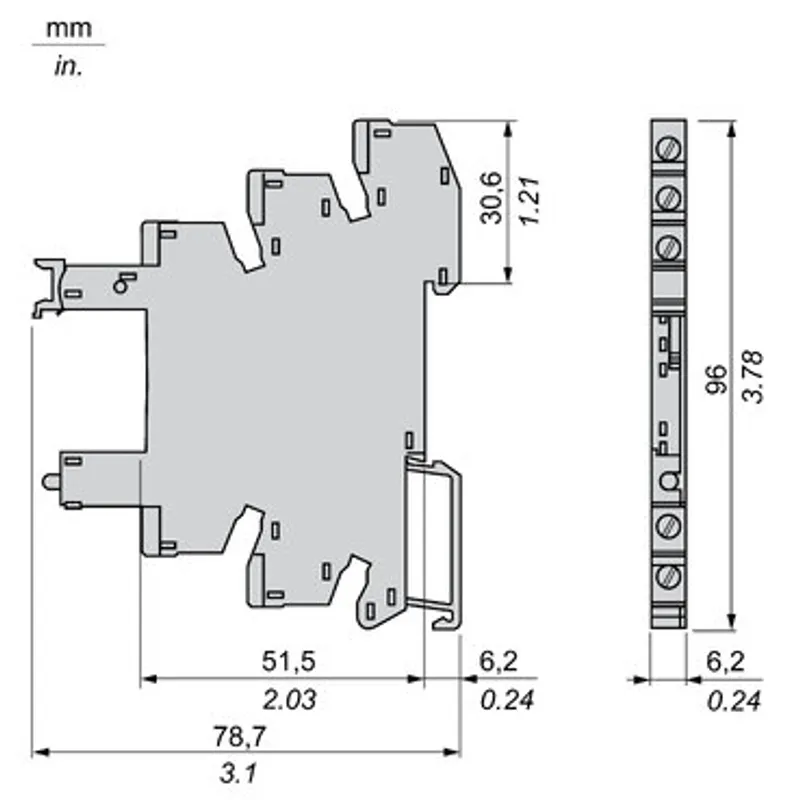

| CAD overall width | 6.2 mm |
| CAD overall height | 78.6 mm |
| CAD overall depth | 95 mm |
| Net weight | 0.023 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | UL 508, IEC 61984 |
| Product certifications | GOST, CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 10.2 cm × 8 cm × 0.7 cm (L × W × H), 27 g |
| Package 2 | 10 BB1, 10.4 cm × 8.5 cm × 7.2 cm (L × W × H), 274 g |
| Package 3 | 300 S03, 40 cm × 30 cm × 30 cm (L × W × H), 8.796 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RSLZVA2: frequently asked questions
Can I still buy the RSLZVA2 now that it is discontinued?
Yes. Schneider Electric has discontinued the RSLZVA2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can RSLZVA2 be shipped?
RSLZVA2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RSLZVA2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RSLZVA2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RSLZVA2, subject to availability and destination.
