Schneider Electric RSLZRA2

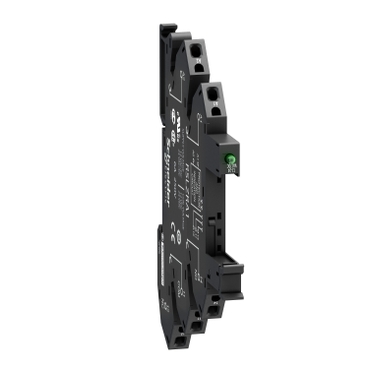

Socket ,Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 48…60V AC DC
- MPN
- RSLZRA2
- EAN
- 3606480078088
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSLZRA2?
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSLZ |
| Product or component type | Socket |
| Device presentation | Basic element |
| Product compatibility | Plug-in relay RSL with 1 C/O contact at 48 V DC, Plug-in relay RSL with 1 C/O contact at 60 V DC |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 48 V AC/DC, 60 V AC/DC |
| Rated operational voltage limits | 54...72 V, 43.2...57.6 V |
| [Ue] rated operational voltage | < 300 V AC |
| Group of product | RSL_SPRING_TERS_48-60 |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
| Compatibility code | RSLZ |
| Clamping force | 10…40 N |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| CAD overall width | 6.2 mm |
| CAD overall height | 78.6 mm |
| CAD overall depth | 101 mm |
| Net weight | 0.023 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984, UL 508 |
| Product certifications | CSA, GOST |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 10.2 cm × 8 cm × 0.7 cm (L × W × H), 26 g |
| Package 2 | 10 BB1, 10.8 cm × 8.5 cm × 7.1 cm (L × W × H), 263 g |
| Package 3 | 300 S03, 40 cm × 30 cm × 30 cm (L × W × H), 8.436 kg |
