RSLZRA1Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 12 to 24V AC DC
Schneider Electric RSLZVA1

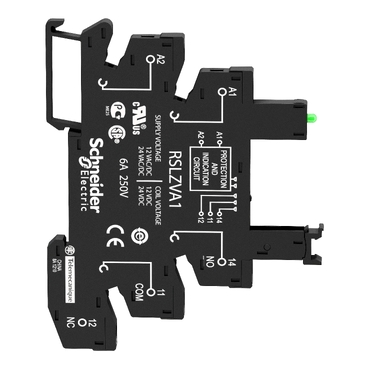

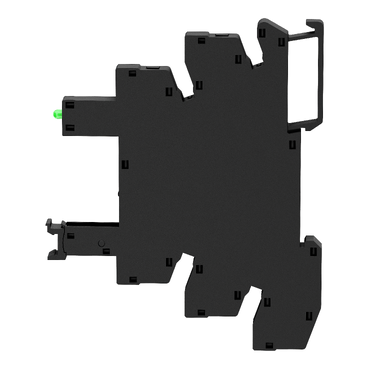

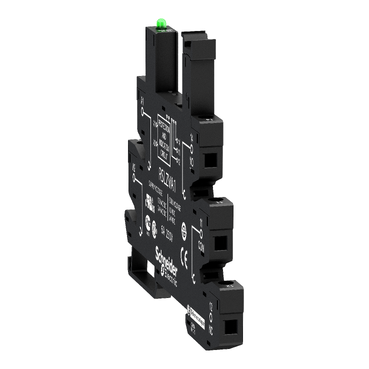

Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
- MPN
- RSLZVA1
- EAN
- 3606480078026
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSLZVA1?
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSLZ |
| Product or component type | Socket |
| Device presentation | Basic element |
| Product compatibility | Plug-in relay RSL with 1 C/O contact at 12 V DC, Plug-in relay RSL with 1 C/O contact at 24 V DC |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 12 V AC/DC, 24 V AC/DC |
| Rated operational voltage limits | 11.4...14.4 V, 21.6...28.8 V |
| [Ue] rated operational voltage | < 300 V AC |
| Group of product | RSL_CON_12-24 |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Compatibility code | RSLZ |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

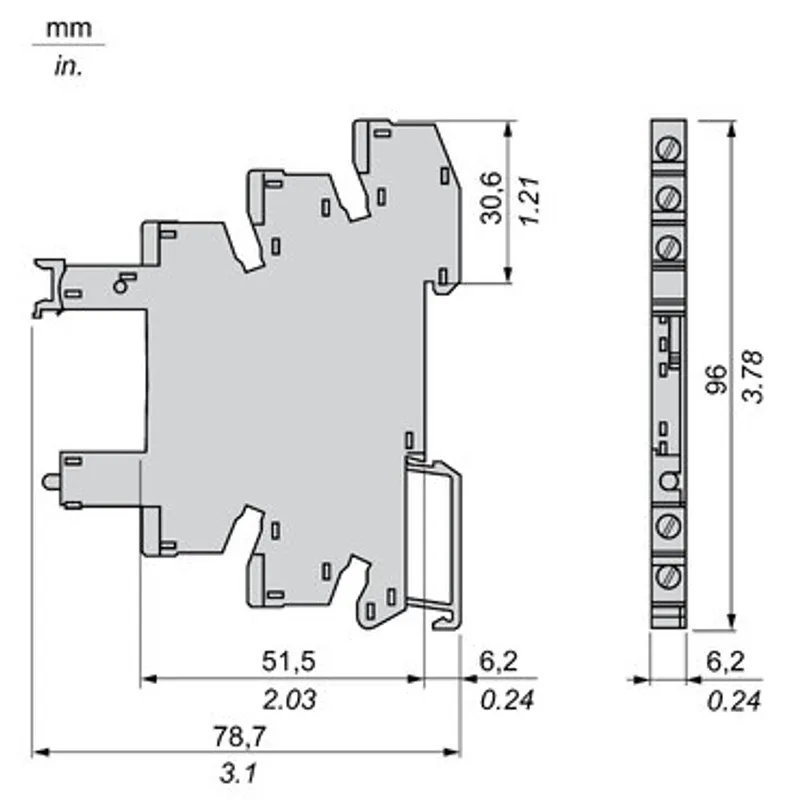

| CAD overall width | 6.2 mm |
| CAD overall height | 78.6 mm |
| CAD overall depth | 95 mm |
| Net weight | 0.023 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984, UL 508 |
| Product certifications | CSA, GOST |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 5.400 cm × 7.200 cm × 8.500 cm (L × W × H), 23.000 g |
| Package 2 | 10 BB1, 10.800 cm × 7.200 cm × 8.500 cm (L × W × H), 259.000 g |
| Package 3 | 300 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.395 kg |
