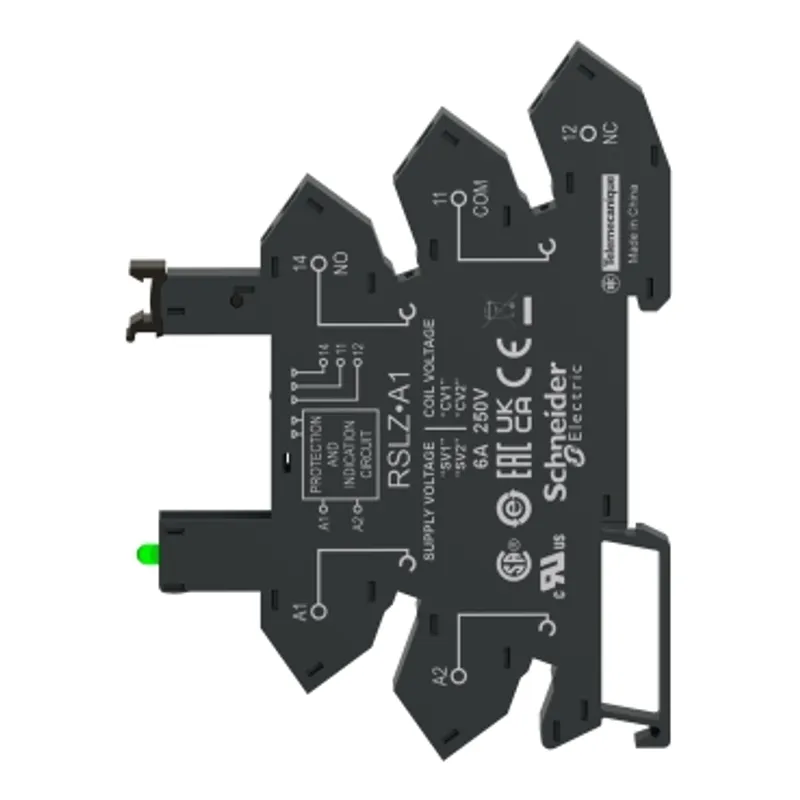

Schneider Electric RSLZRA3
Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 110V AC DC
- MPN
- RSLZRA3
- EAN
- 3606480078095
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RSLZRA3 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSLZRA3?
"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSLZ |
| Product or component type | Socket |
| Device presentation | Basic element |
| Product compatibility | Plug-in relay RSL with 1 C/O contact at 60 V DC |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 110 V AC/DC |
| Rated operational voltage limits | 88...126.5 V |
| [Ue] rated operational voltage | < 300 V AC |
| Group of product | RSL_SPRING_TERS_110 |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
| Compatibility code | RSLZ |
| Clamping force | 10…40 N |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

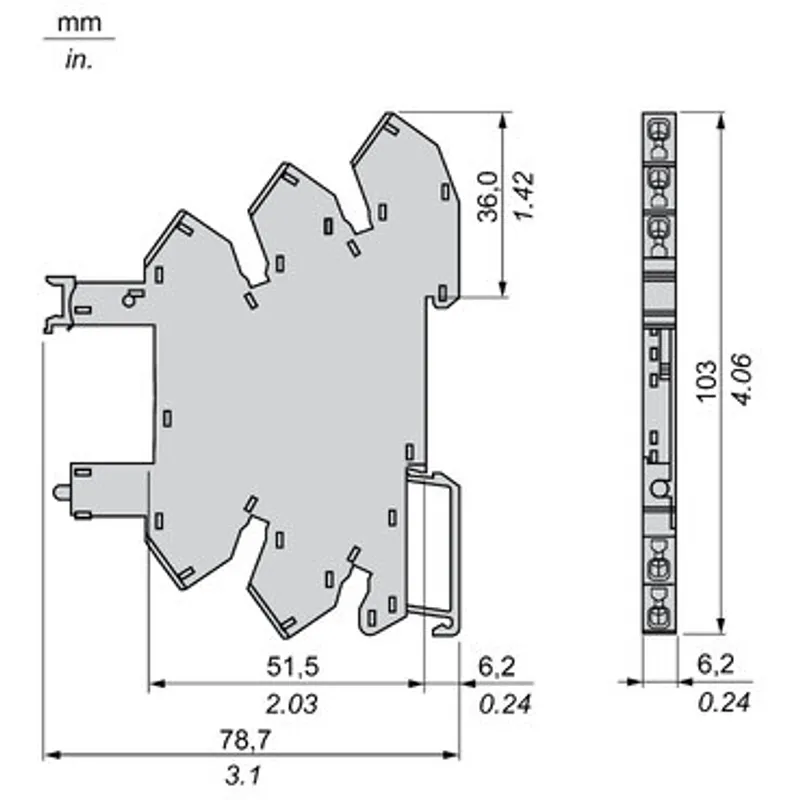

| CAD overall width | 6.2 mm |
| CAD overall height | 78.6 mm |
| CAD overall depth | 101 mm |
| Net weight | 0.023 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984, UL 508 |
| Product certifications | CSA, GOST |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 10.800 cm × 8.500 cm × 0.600 cm (L × W × H), 24.000 g |
| Package 2 | 10 BB1, 10.800 cm × 8.800 cm × 7.000 cm (L × W × H), 265.000 g |
| Package 3 | 300 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.663 kg |
