Schneider Electric RSLZVA3
Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 110V AC DC
- MPN
- RSLZVA3
- EAN
- 3606480078040
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSLZVA3?

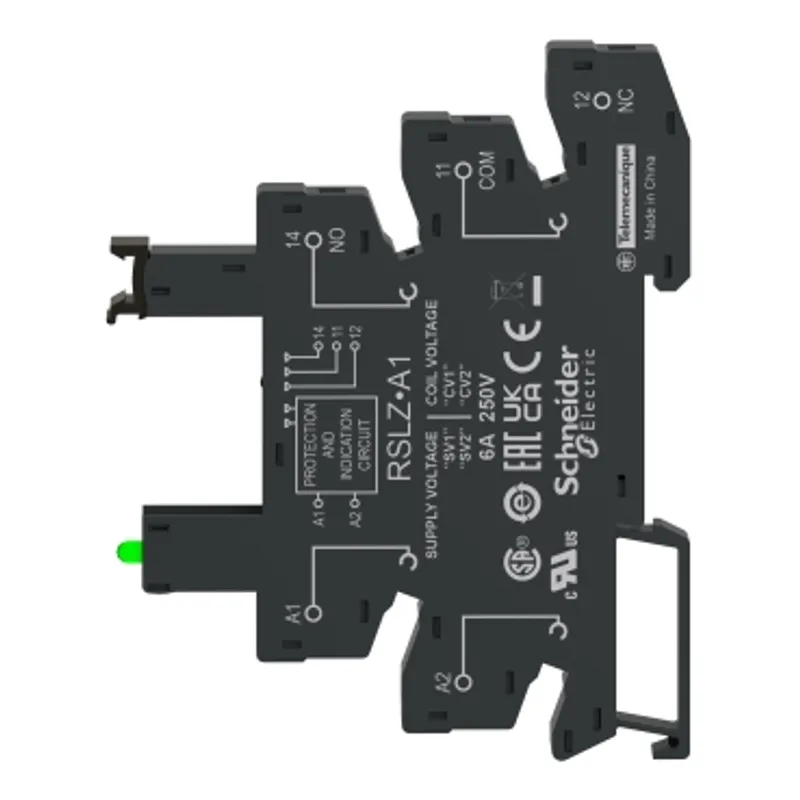

"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSLZ |
| Product or component type | Socket |
| Device presentation | Basic element |
| Product compatibility | Plug-in relay RSL with 1 C/O contact at 60 V DC, Plug-in relay RSL |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 6 A |
| Switching voltage | 110 V AC/DC |
| Rated operational voltage limits | 88...126.5 V |
| [Ue] rated operational voltage | < 300 V AC |
| Group of product | RSL_CON_110 |
| Shape of pin | Flat |
| Contact terminal arrangement | Separate |
| Connections - terminals | Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Compatibility code | RSLZ |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

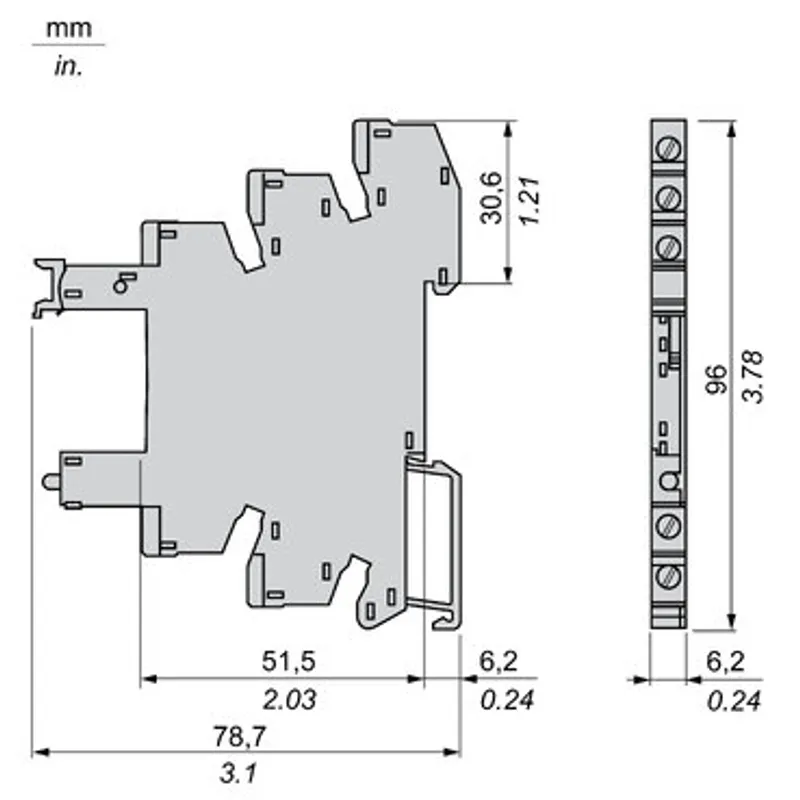

| CAD overall width | 6.2 mm |
| CAD overall height | 78.6 mm |
| CAD overall depth | 95 mm |
| Net weight | 0.023 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984, UL 508 |
| Product certifications | GOST, CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 8.000 cm × 0.700 cm (L × W × H), 23.000 g |
| Package 2 | 10 BB1, 10.500 cm × 8.800 cm × 7.000 cm (L × W × H), 257.000 g |
| Package 3 | 300 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.259 kg |
