Schneider Electric RSZE08P
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
- MPN
- RSZE08P
- EAN
- 3606481465740
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSZE08P?
This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A/RSB2A relays. It is compatible with RSB with 1 C/O contact, 16A, RSB1A160 and 2 C/O contact, 8A, RSB2A080 relays. it has a rated voltage of 250V AC with an output rating of 10A. It is a green premium product and conforms to international standard and certifications.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 16 A, Plug-in relay RSB with 2 C/O contact at 8 A |
| Contacts type and composition | 2 C/O |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 250 V |
| Shape of pin | Flat |
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

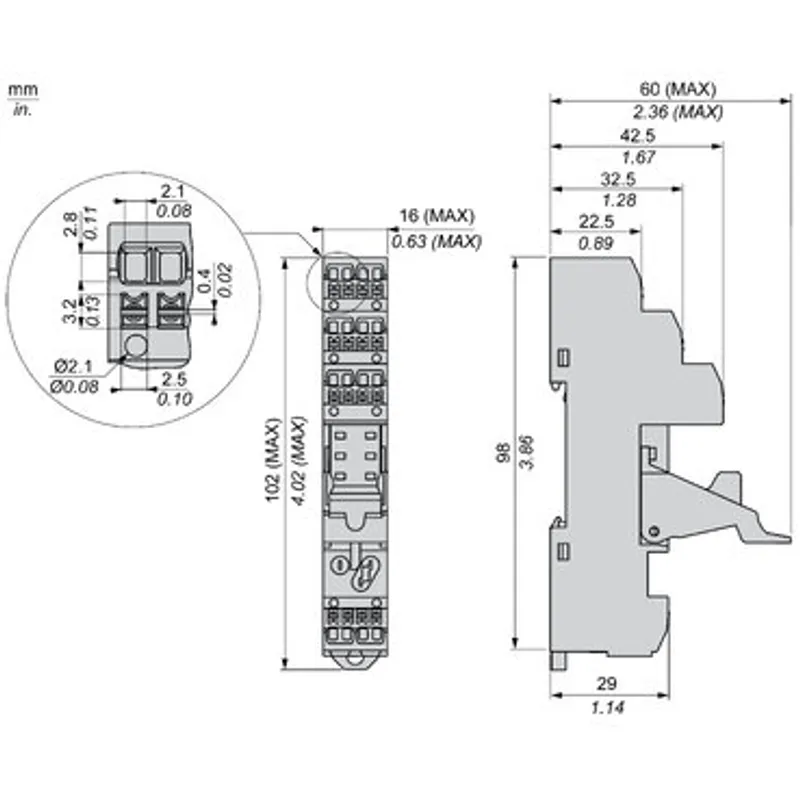

| Length | 98 mm |
| Width | 16 mm |
| Height | 60 mm |
| Net weight | 0.042 kg |
| IP degree of protection | IP20 |
| Standards | IEC 61984 |
| Product certifications | CSA, UL, EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…85 °C |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 6.000 cm × 1.500 cm (L × W × H), 40.000 g |
| Package 2 | 10 BB1, 16.500 cm × 10.500 cm × 7.500 cm (L × W × H), 442.000 g |
| Package 3 | 160 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.710 kg |
