Schneider Electric NSYSPS3100SD

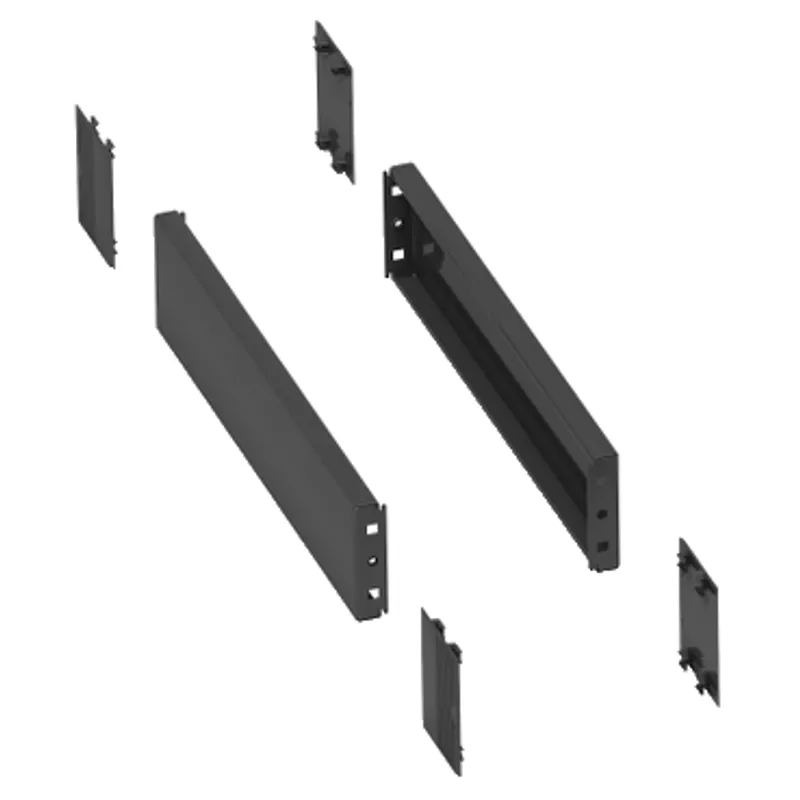

2 side panels for plinth. 300x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
- MPN
- NSYSPS3100SD
- EAN
- 3606480287091
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS3100SD?
Plinth side panel to be used with PanelSeT SD, PanelSeT S3D and PanelSeT CRN enclosures The plinth side panel is to be used in multi-purpose applications The nominal width is 300mm The height is 100mm The depth is 300mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Material | Sheet steel |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | Nominal: 300 mm |
| Depth | 300 mm |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 (resistance to external mechanical impacts) |
Packaging
| Package 1 | 1 PCE, 11.300 cm × 10.800 cm × 5.800 cm (L × W × H), 574.000 g |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 120.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPS3100SD: frequently asked questions
When can NSYSPS3100SD be shipped?
NSYSPS3100SD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPS3100SD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPS3100SD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS3100SD, subject to availability and destination.
