Schneider Electric NSYSDR40B

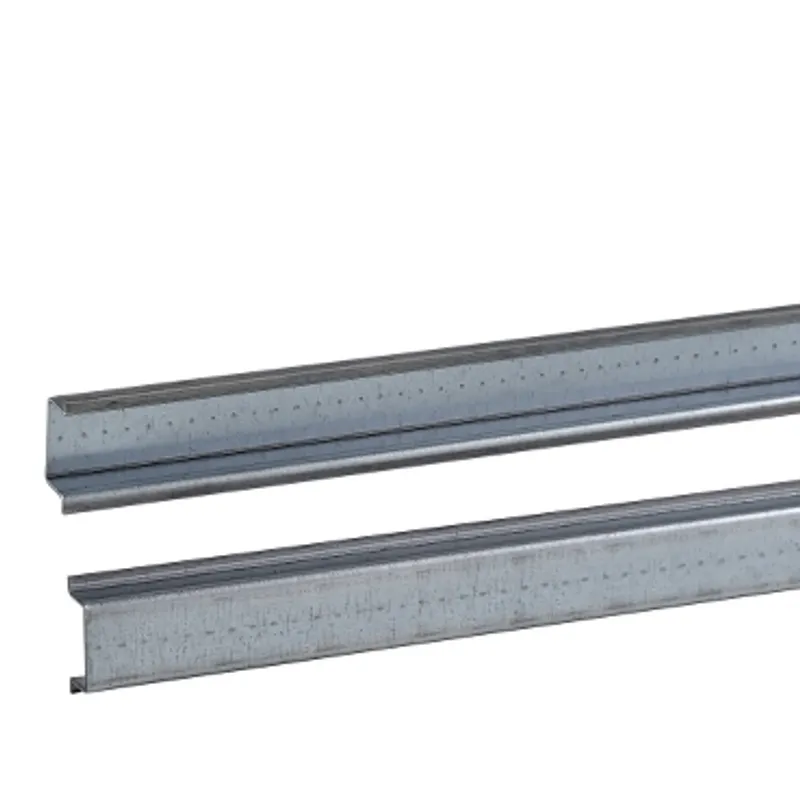

One symmetric mounting rail 35X7.5 L400mm type B - Wall mounting - Supply: 20
- MPN
- NSYSDR40B
- EAN
- 3606480184369
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSDR40B?
Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The rail is made from zinc coated 1mm zinc coated steel The nominal width is 35mm The nominal height is 7,2mm The product real length is 350mm and nominal length is 400mm Fixed with a pitch of 25mm
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 1 rail |
| Quantity per set | Set of 20 |
| Material | Zinc coated steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - structure of enclosure location |
| Adjustment | Continuous adjustment, Pitch 25 mm |
| Length | Real: 350 mm, Nominal: 400 mm |
| Height | Nominal: 7.5 mm |
| Width | Nominal: 35 mm |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 4.000 cm × 6.000 cm × 4.000 cm (L × W × H), 138.000 g |
| Package 2 | 10 CAR, 40.000 cm × 6.000 cm × 4.000 cm (L × W × H), 1.386 kg |
| Package 3 | 1050 P12, 120.000 cm × 80.000 cm × 35.000 cm (L × W × H), 159.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDR40B: frequently asked questions
When can NSYSDR40B be shipped?
NSYSDR40B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDR40B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDR40B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDR40B, subject to availability and destination.
