Schneider Electric NSYSDR30B

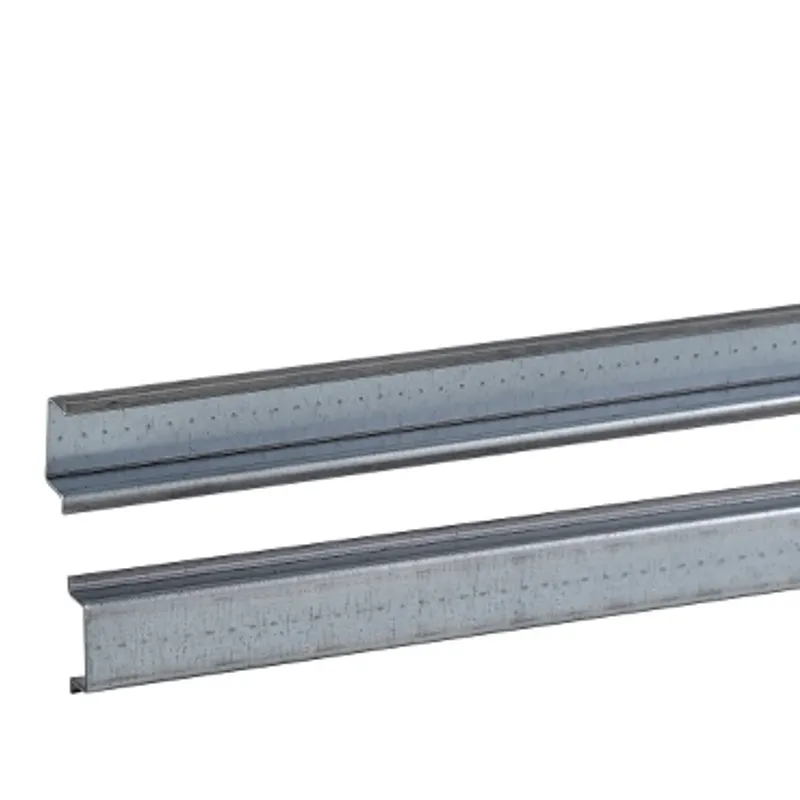

One symmetric mounting rail 35x7.5 L300mm type B - Wall mounting - Supply: 20

MPN
NSYSDR30B
EAN
3606480184352
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSDR30B?

Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The rail is made from zinc coated 1mm zinc coated steel The nominal width is 35mm The nominal height is 7,2mm The product real length is 250mm and nominal length is 300mm Fixed with a pitch of 25mm

Specifications

Specifications

AnwendungMulti-purpose
RangePanelSeT
Product or component typeRail
Accessory / separate part categoryMounting accessory
Type of railSymmetrical DIN
Enclosure nominal dimensions-
Range compatibilityPanelSeT CRN, PanelSeT S3D, PanelSeT PLM
Device compositionFixing elements, 1 rail
Quantity per setSet of 20
MaterialZinc coated steel
Surface finishZinc coated
Fixing modeBy fixing element - structure of enclosure location
AdjustmentPitch 25 mm, Continuous adjustment
LengthReal: 250 mm, Nominal: 300 mm
HeightNominal: 7.5 mm
WidthNominal: 35 mm
thickness1 mm

Packaging

Package 11 PCE, 24.500 cm × 3.500 cm × 0.750 cm (L × W × H), 106.000 g
Package 210 BB1, 6.000 cm × 26.500 cm × 4.000 cm (L × W × H), 1.064 kg
