Schneider Electric NSYSBX20208

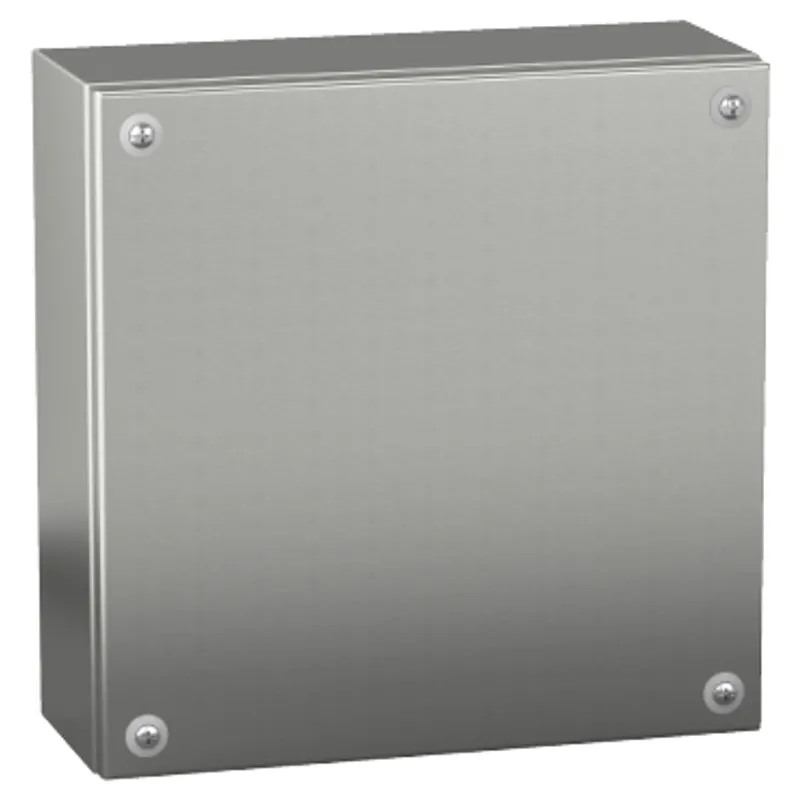

Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66
- MPN
- NSYSBX20208
- EAN
- 3606481715180
- Category
- PanelSeT SBX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBX20208?

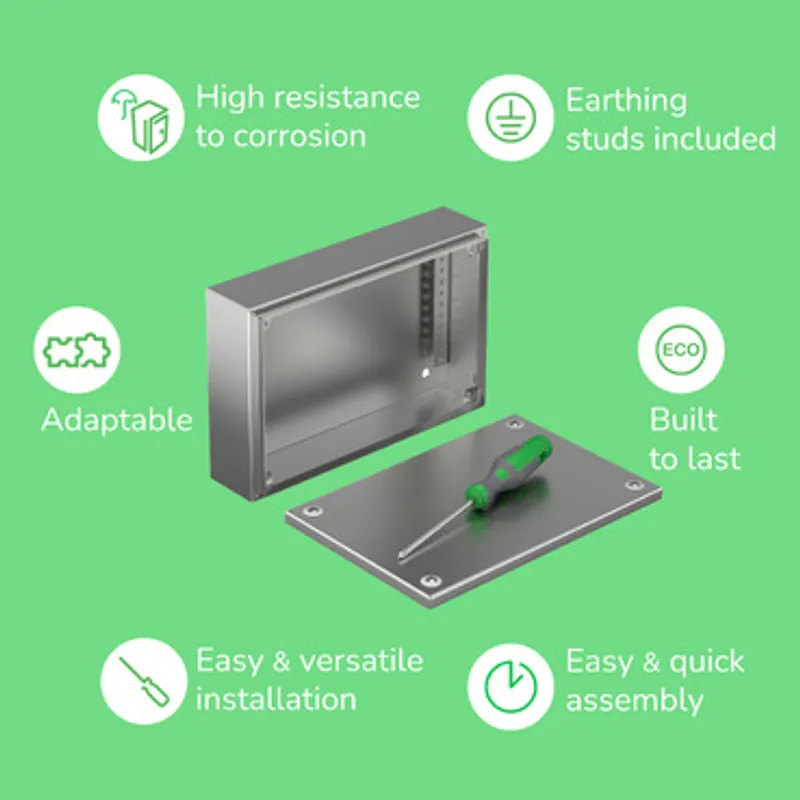

Spacial SBX is a stainless steel 304L industrial box designed for a multi-purpose application It is designed to withstand harsh environments with its IK10 (IEC62262) and IP66 (IEC60529) ratings It has a nominal height, width and depth of 200mm, 200mm and 80mm respectively It is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area and its cover can be removed for maintenance purposes The box meets the IEC 62208 standards and has an ambient air temperature range for storage and operation of -35-60 °C and -35-80 °C respectively To be used with a mounting plate or a DIN rail. Directly wall mounted o by fixing lugs (to be ordered separately). The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division. This device is qualified as a green premium product, with minimal use of harzardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| enclosure type | Flat face box |

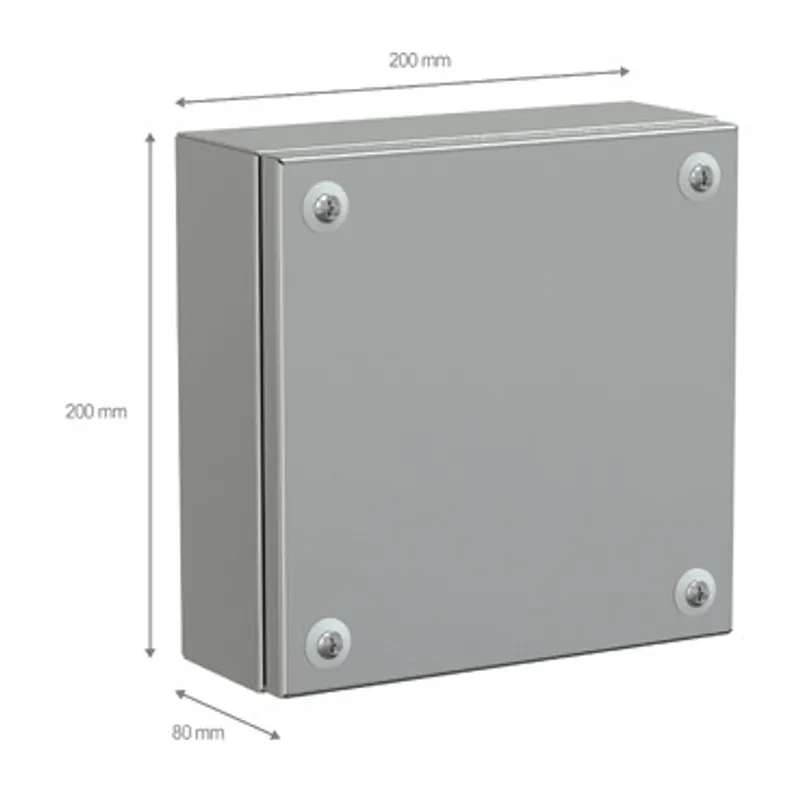

| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 200 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
Packaging
| Package 1 | 1 PCE, 21.500 cm × 21.500 cm × 10.000 cm (L × W × H), 1.740 kg |
| Package 2 | 38 P12, 120.000 cm × 80.000 cm × 35.000 cm (L × W × H), 78.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSBX20208: frequently asked questions
When can NSYSBX20208 be shipped?
NSYSBX20208 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSBX20208 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSBX20208 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBX20208, subject to availability and destination.
