Schneider Electric NSYSBX15158
Stainless steel wall mounted industrial box, PanelSeT SBX, 150x150x80 mm, IP66
- MPN
- NSYSBX15158
- EAN
- 3606481715173
- Category
- PanelSeT SBX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBX15158?

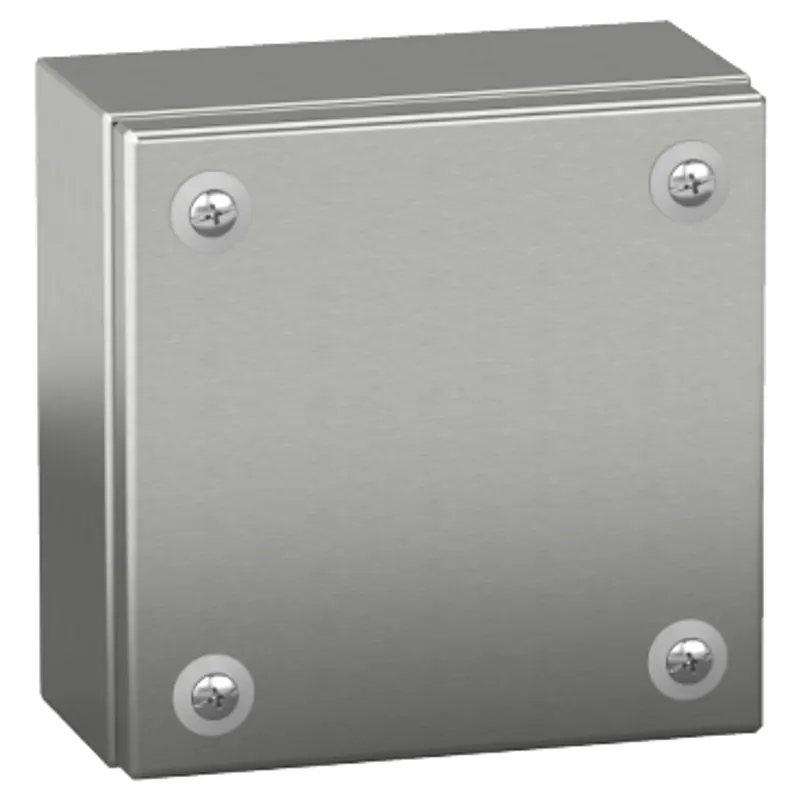

The Spacial SBX is a multi-purpose stainless steel industrial box ideal for use in harsh environments It has a nominal height, width and depth of 150mm, 150mm and 80mm respectively and is made with a Scotch-Brite® brushed surface finish It has a single piece body folded and welded, with 4 cover screws and a cover that can be removed for maintenance purposes It has a captive screw PZ2 outside the sealed area and is wall mounted The net weight of the enclosure is 1,1kg It is certified by BV | BVM | UL and meets the IEC 62208 standards It has a high degree of protection with IK10 (IEC62262) and IP66 (IEC60529) ratings It can be stored in temperatures between -35-60 °C and operated in temperatures between -35-80 °C The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division. This device is qualified as a green premium product, with minimal use of harzardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| enclosure type | Flat face box |

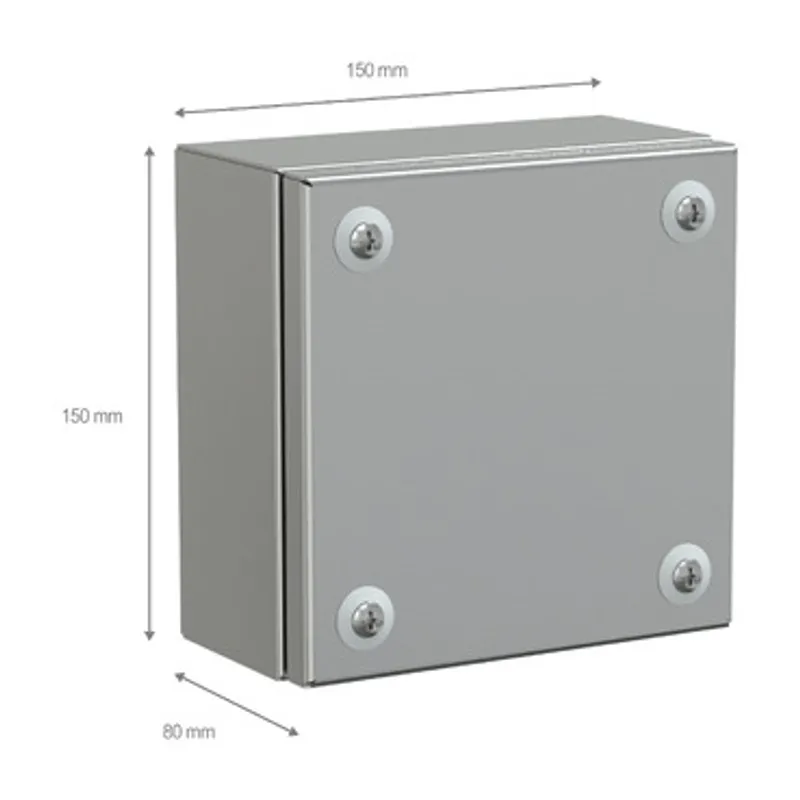

| Enclosure nominal height | 150 mm |
| Enclosure nominal width | 150 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 1.1 kg |
Packaging
| Package 1 | 1 PCE, 17.000 cm × 17.000 cm × 10.000 cm (L × W × H), 1.114 kg |
| Package 2 | 114 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 138.540 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSBX15158: frequently asked questions
When can NSYSBX15158 be shipped?
NSYSBX15158 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSBX15158 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSBX15158 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBX15158, subject to availability and destination.
