Schneider Electric NSYSBX204012
Stainless steel wall mounted industrial box, PanelSeT SBX, 200x400x120 mm, IP66
- MPN
- NSYSBX204012
- EAN
- 3606481715210
- Category
- PanelSeT SBX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBX204012?

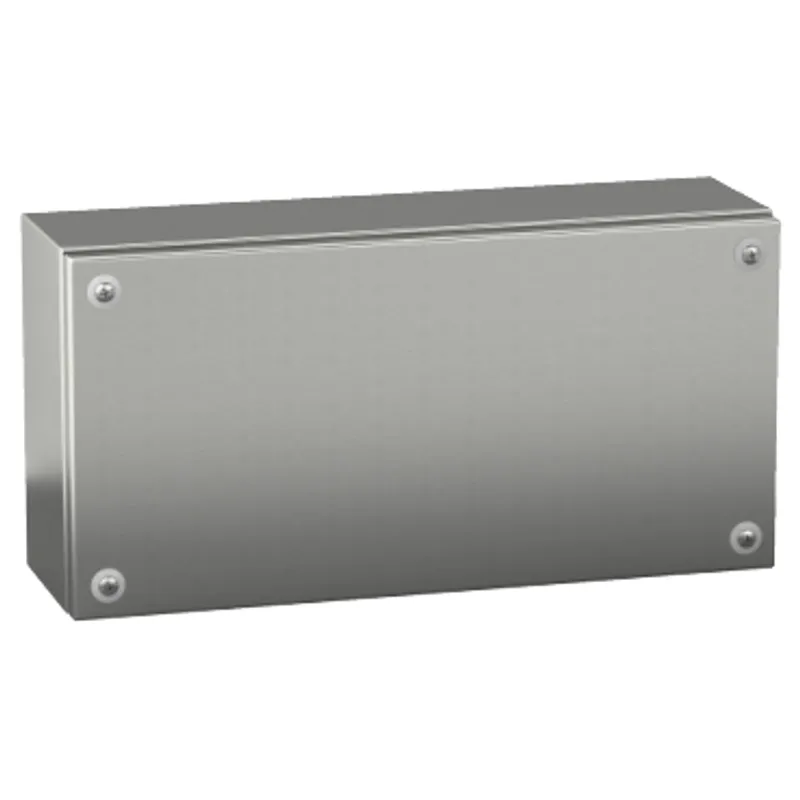

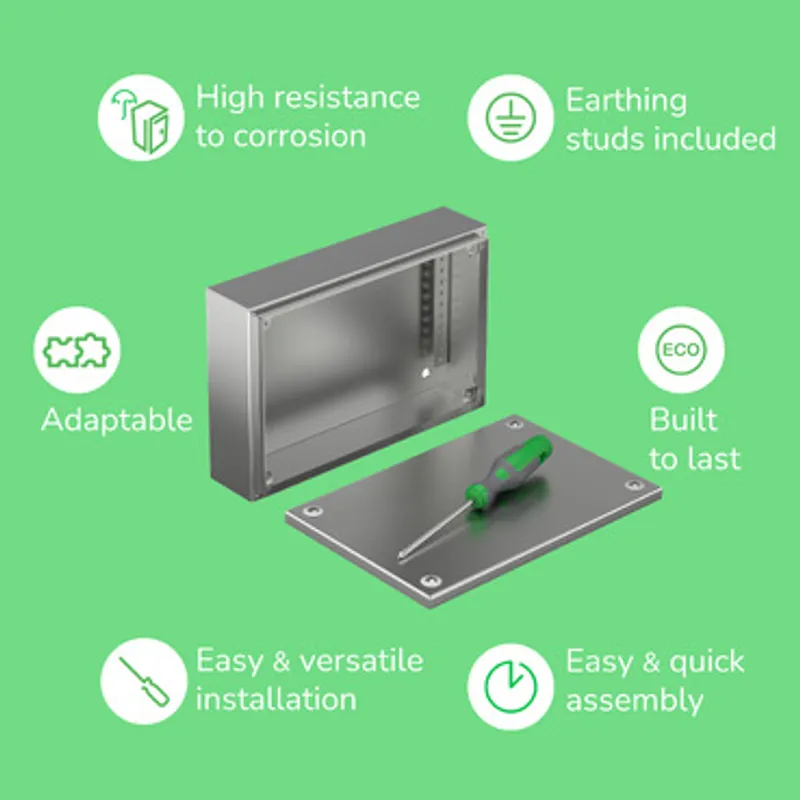

PanelSeT SBX stainless steel 304L industrial box for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 200mm, 400mm and 120mm respectively The box is made with a Scotch-Brite® brushed surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 3,2kg It meets the standards of IEC 62208 and is certified by BV, BVM and UL The enclosure is wall mounted and the cover is fixed using half turn metal screws The ambient air temperature for storage and operation is -35-60°C and -35-80°C respectively
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| enclosure type | Flat face box |

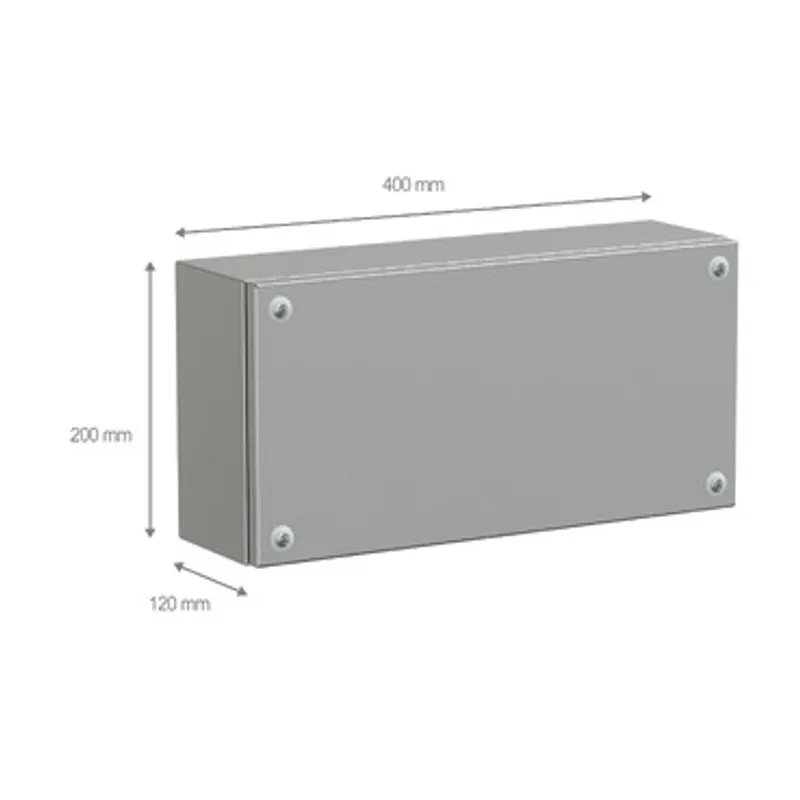

| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 3.2 kg |
Packaging
| Package 1 | 1 PCE, 41.000 cm × 21.000 cm × 14.500 cm (L × W × H), 3.316 kg |
| Package 2 | 70 P12, 120.000 cm × 80.000 cm × 124.000 cm (L × W × H), 242.820 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSBX204012: frequently asked questions
When can NSYSBX204012 be shipped?
NSYSBX204012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSBX204012 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSBX204012 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBX204012, subject to availability and destination.
