Schneider Electric NSYSBTB

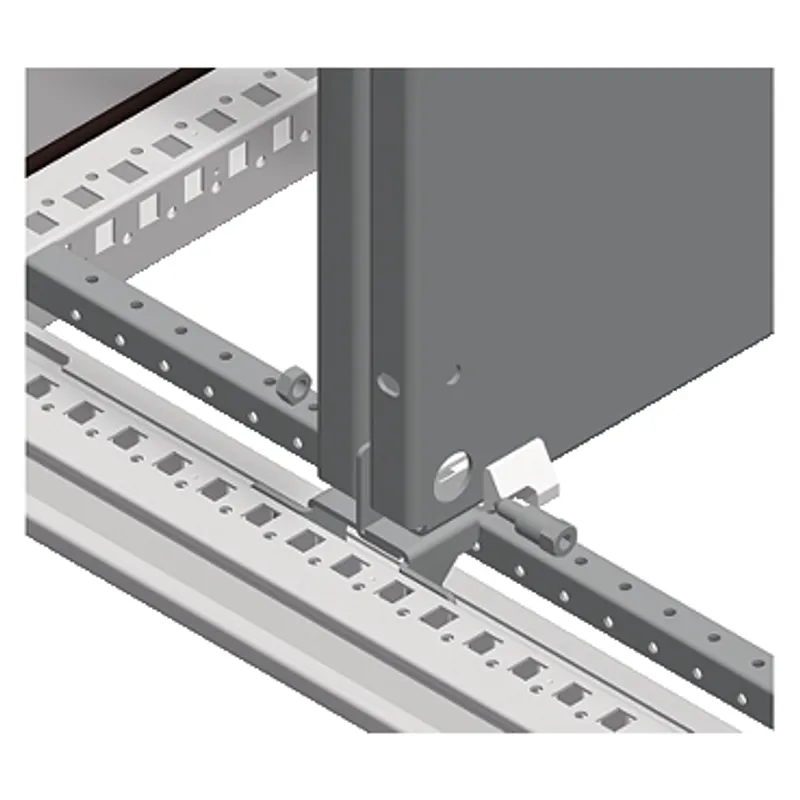

Brackets for fixing mounting plates in back toback position, PanelSeT SFN, PanelSeT SF, set of 4

MPN
NSYSBTB
EAN
3606485131078
Category
PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSBTB?

Spacial SF brackets for fixing mounting plates back to back. .4 brackets included. Mounting location is On structure of enclosure, On 2 mounting plates back to back position. Adjustable with a pitch of 25 mm. Fixing by elements. Steel made, zinc coated surface finish.

Specifications

Specifications

categoryMounting accessory
Product or component typeFixing bracket
Range compatibilityPanelSeT SF
ApplicationMulti-purpose
Nominal dimensions of the housing-
Mounting locationOn structure of enclosure, On 2 mounting plates back to back position
Product destinationFor mounting plate
Device composition4 bracket, fixing elements
Quantity per setSet of 1
MaterialSteel
Surface finishZinc coated
Fixing modeBy fixing element
AdjustmentAdjustable with a pitch of 25 mm
Height90 mm
Width120 mm
Depth185 mm

Packaging

Package 11 PCE, 20.000 cm × 14.000 cm × 9.500 cm (L × W × H), 929.000 g
Package 2250 P12, 120.000 cm × 80.000 cm × 85.000 cm (L × W × H), 244.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYSBTB: frequently asked questions

When can NSYSBTB be shipped?

NSYSBTB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSBTB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSBTB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBTB, subject to availability and destination.
