Schneider Electric NSYSBX303012

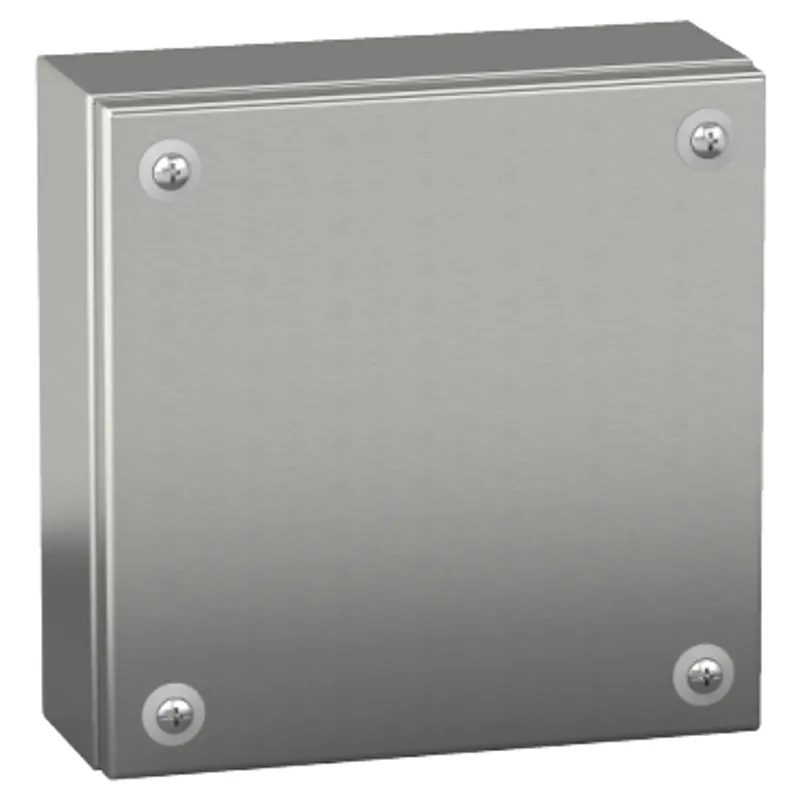

Stainless steel wall mounted industrial box, PanelSeT SBX, 300x300x120 mm, IP66
- MPN
- NSYSBX303012
- EAN
- 3606481715197
- Category
- PanelSeT SBX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBX303012?

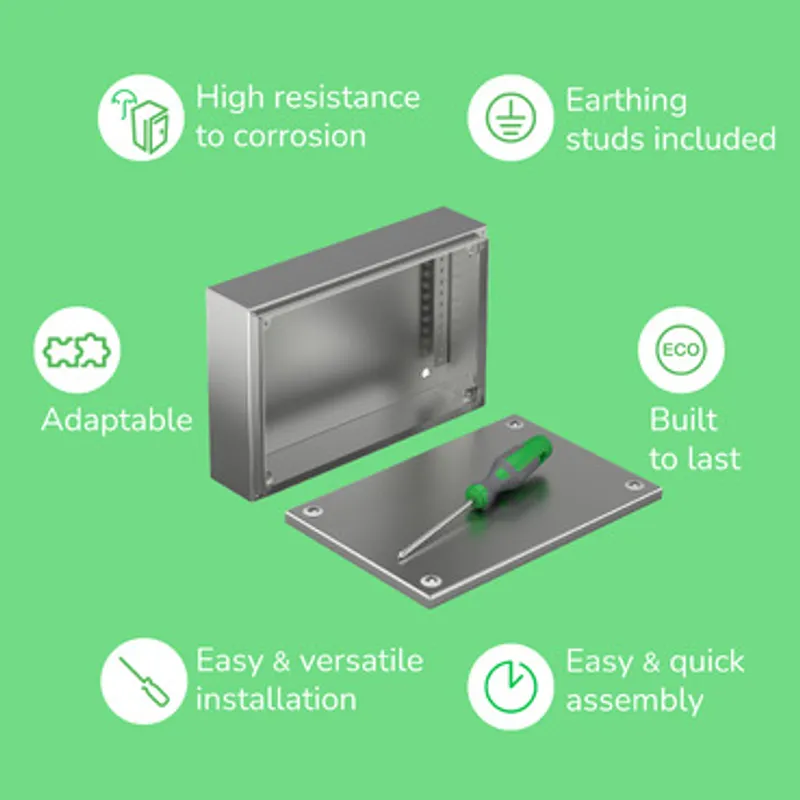

The Spacial SBX is a multi-purpose stainless steel 304L industrial box designed for use in harsh environments It is certified by BV, BVM and UL, and is rated IK10 (IEC 62262) for its high impact resistance, and IP66 (IEC 60529) for its dust and water resistance The box has a nominal height, width and depth of 300mm, 300mm and 120mm respectively It is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screws, a cover and a body The cover is secured with a captive screw PZ2 outside the sealed area and can be removed for maintenance purposes The box has a net weight of 3,6kg and is compliant with IEC 62208 standards It can be stored in temperatures between -35-60°C and operated in temperatures between -35-80°C Directly wall mounted o by fixing lugs (to be ordered separately). The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division. This device is qualified as a green premium product, with minimal use of harzardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| enclosure type | Flat face box |

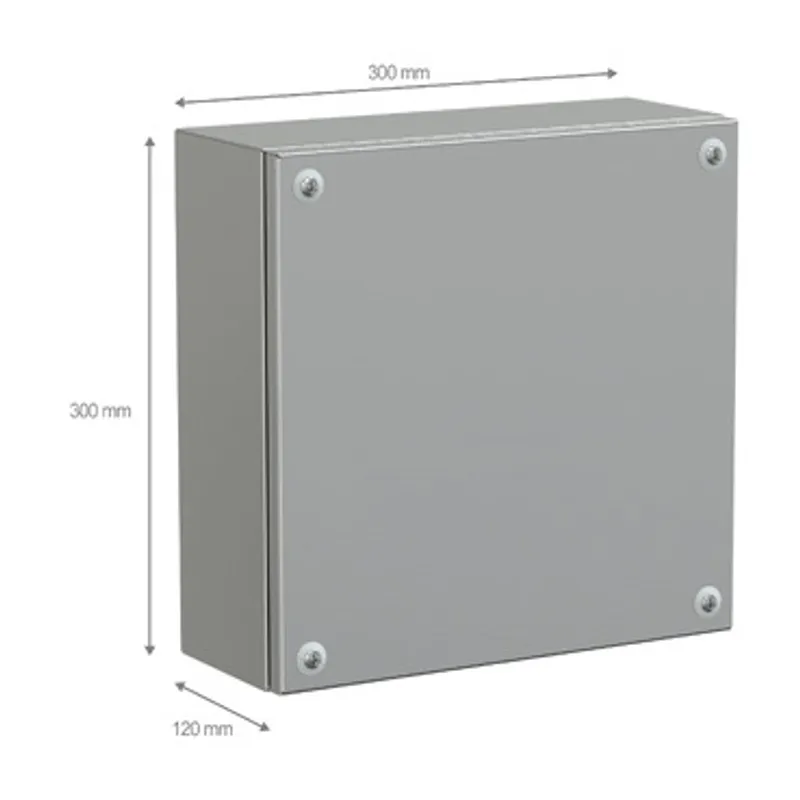

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 3.6 kg |
Packaging
| Package 1 | 1 PCE, 31.500 cm × 31.500 cm × 14.000 cm (L × W × H), 3.644 kg |
| Package 2 | 60 P12, 120.000 cm × 80.000 cm × 143.000 cm (L × W × H), 231.520 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSBX303012: frequently asked questions
When can NSYSBX303012 be shipped?
NSYSBX303012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSBX303012 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSBX303012 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBX303012, subject to availability and destination.
