Schneider Electric NSYSBX15308

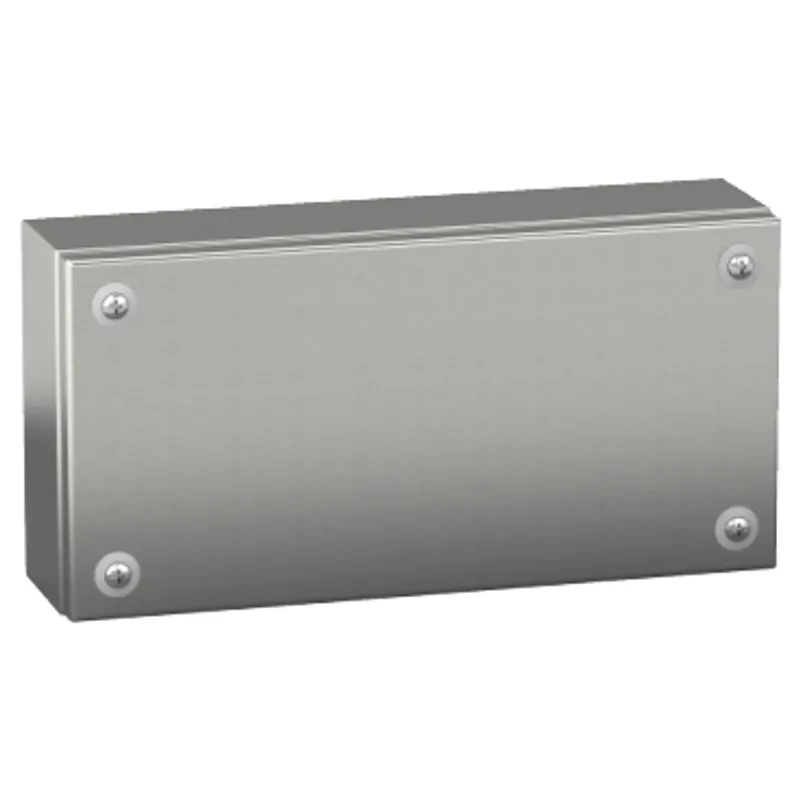

Stainless steel wall mounted industrial box, PanelSeT SBX, 150x300x80 mm, IP66
- MPN
- NSYSBX15308
- EAN
- 3606481715227
- Category
- PanelSeT SBX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBX15308?

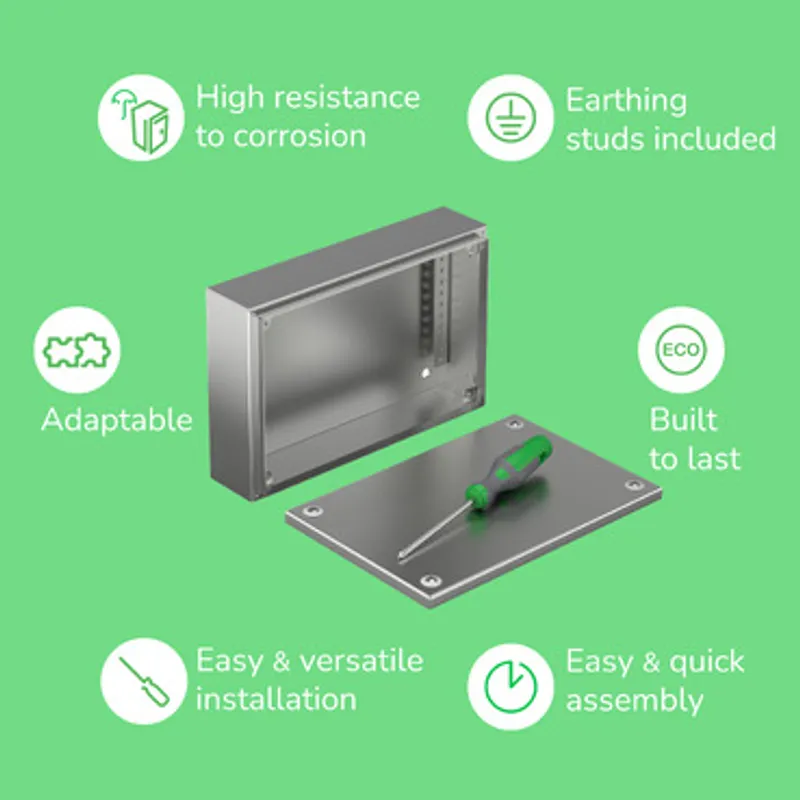

PanelSeT SBX stainless steel 304L industrial box is designed for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 150mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 1,9kg It is wall mounted and has a flat face box with a plain door The cover is fixed using a half turn metal screw It meets the standards of IEC 62208 and has an ambient air temperature for storage and operation of -35-60°C and -35-80°C respectively
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| enclosure type | Flat face box |

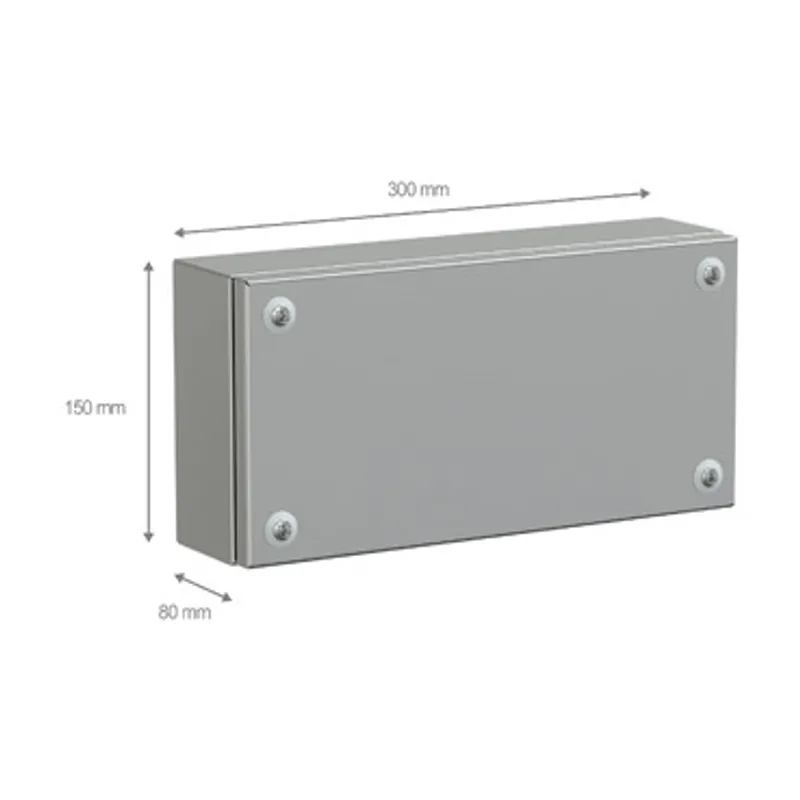

| Enclosure nominal height | 150 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 1.9 kg |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 16.500 cm × 31.500 cm (L × W × H), 1.904 kg |
| Package 2 | 56 P12, 120.000 cm × 80.000 cm × 47.000 cm (L × W × H), 116.624 kg |
