Metal industrial box plain door H200xW500xD120 IP66 IK10 RAL 7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SBM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.24 kg |
Shipping & availability
When can NSYSBM205012 be shipped?
NSYSBM205012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSBM205012 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSBM205012 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSBM205012, subject to availability and destination.

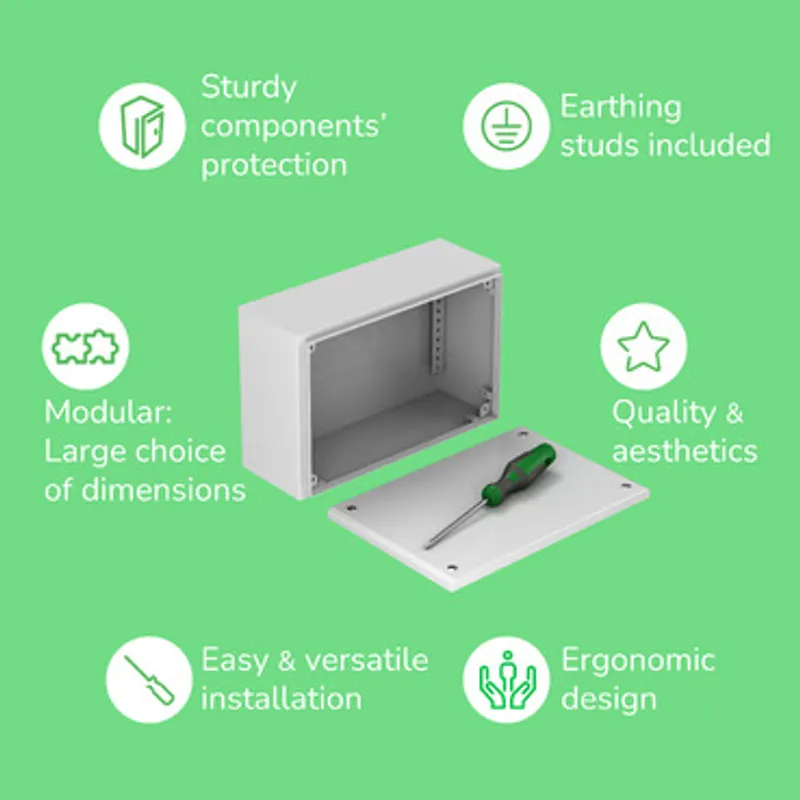

Spacial SBM steel industrial box is designed for a multi-purpose application It is made to withstand harsh environments, with a IK10 (IEC62262) rating and an IP66 rating (IEC60529) for high resistance to dust and water This box has a nominal height, width and depth of 200mm, 500mm and 120mm respectively The box is made in grey color (RAL7035) with a polyester powder surface finish The box consists of 1 cover, 1 body and 6 cover screw It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 4,242kg It meets the standards of IEC 62208 and complies with the ambient air temperature for storage (-35-60°C) and operation (-35-80°C) Protection IP 66, IK10.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 500 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 cover, 1 body, 6 cover screw |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 4.242 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 22.000 cm |
| Package 1 Length | 52.500 cm |
| Package 1 Weight | 4.242 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 57.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 115.000 kg |
| Warranty (in months) | 18 |
