Schneider Electric NSYSBM203012
Metal industrial box plain door H200xW300xD120 IP66 IK10 RAL 7035
- MPN
- NSYSBM203012
- EAN
- 3606480520150
- Category
- PanelSeT SBM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBM203012?

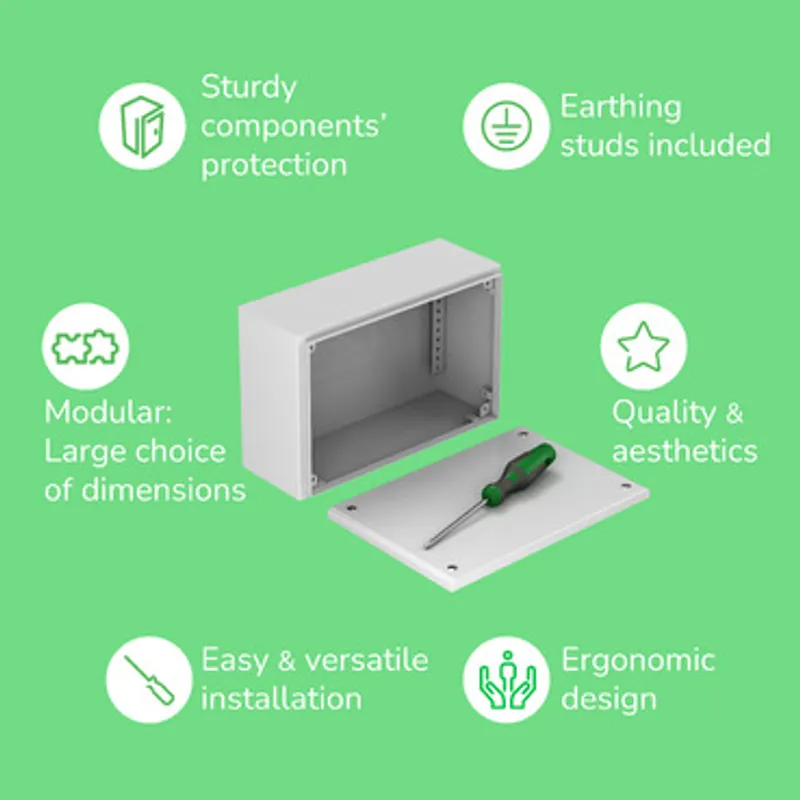

Spacial SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 200mm, 300mm and 120mm respectively The box is made in grey color (RAL7035) with a polyester powder surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 2,512kg It meets the standards of IEC 62208 and has an ambient air temperature for storage and operation of -35-60 °C and -35-80 °C respectively Protection IP 66, IK10.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 2.512 kg |
Packaging
| Package 1 | 1 PCE, 31.500 cm × 22.000 cm × 14.000 cm (L × W × H), 2.512 kg |
| Package 2 | 140 P12, 120.000 cm × 80.000 cm × 160.000 cm (L × W × H), 363.000 kg |
