PanelSeT SBM Parts

Schneider Electric

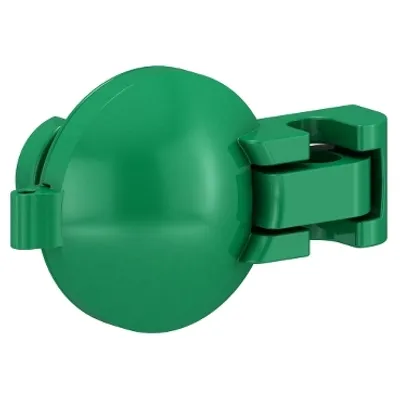

NSYPPSB

Sealing kit for PanelSeT SBM

Schneider Electric

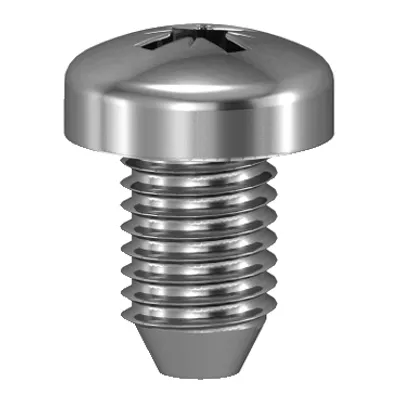

NSYAMFSB

Set of 100 self-tapping screws

Schneider Electric

NSYAEDSBSB

Double bar screws, Ø3 mm, for SBM boxes

Schneider Electric

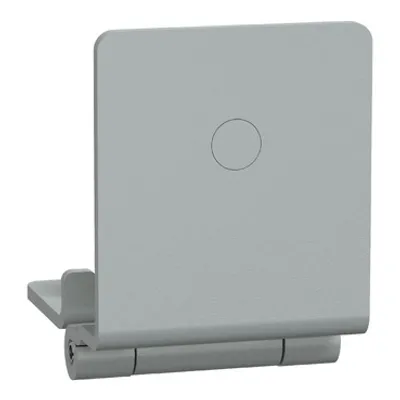

NSYAEDHSB

Door hinges for PanelSeT SBM boxes - door opening 180

Schneider Electric

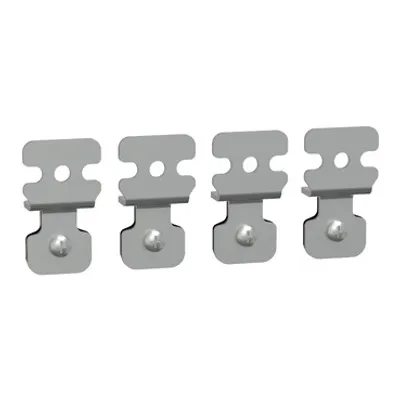

NSYAEFPFSB

Set of 4 wall fixing lugs, made of steel. For PanelSeT SBM boxes

Schneider Electric

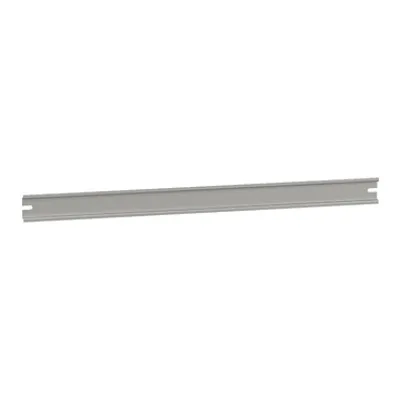

NSYAMRD50357SB

Symmetrical DIN rail H35D7.5mm - Length 500mm for PanelSeT SBM

Schneider Electric

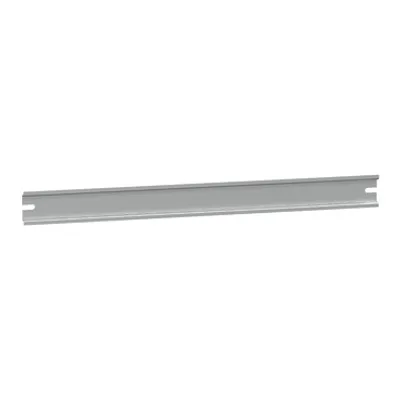

NSYAMRD40357SB

Symmetrical DIN rail H35D7.5mm - Length 400mm for PanelSeT SBM

Schneider Electric

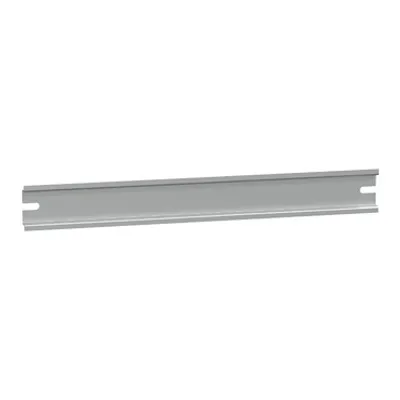

NSYAMRD30357SB

Symmetrical DIN rail H35D7.5mm - Length 300mm for PanelSeT SBM

Schneider Electric

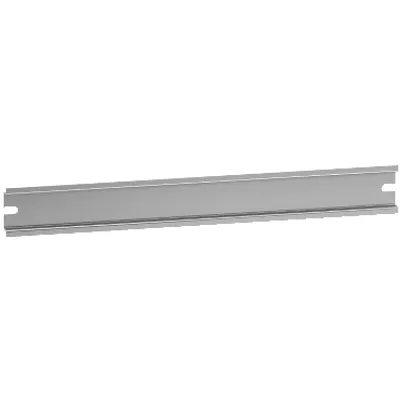

NSYAMRD20357SB

Symmetrical mounting rail H35D7.5mm - L 200mm for PanelSeT SBM

Schneider Electric

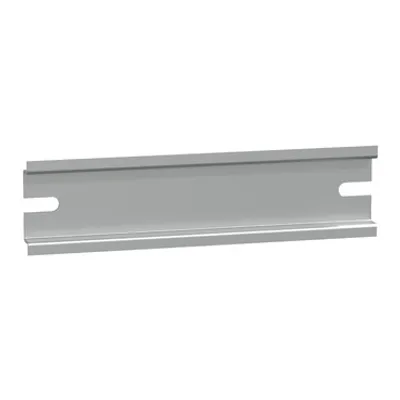

NSYAMRD15357SB

Symmetrical mounting rail H35D7.5mm - L 150mm for PanelSeT SBM

Schneider Electric

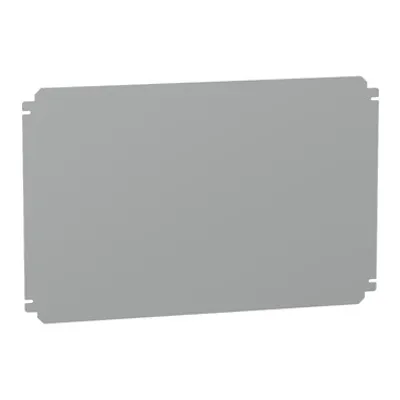

NSYMM46SB

Plain mounting plate H400xW600mm made of galvanised sheet steel

Schneider Electric

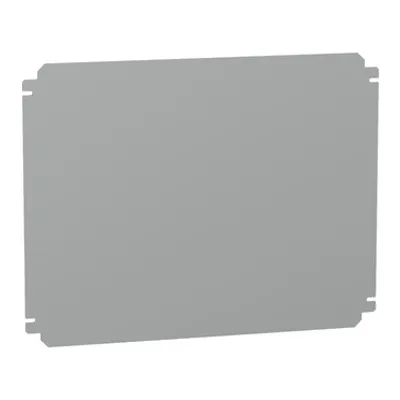

NSYMM45SB

Plain mounting plate H400xW500mm made of galvanised sheet steel

Schneider Electric

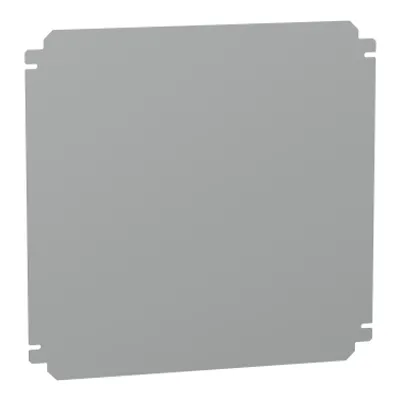

NSYMM44SB

Plain mounting plate H400xW400mm made of galvanised sheet steel

Schneider Electric

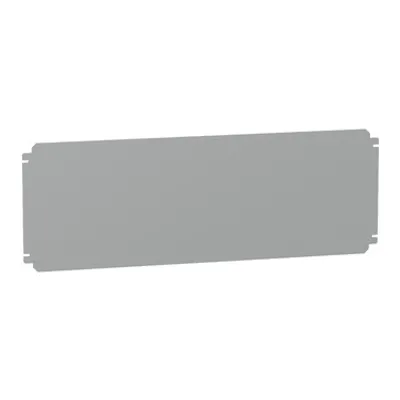

NSYMM38SB

Plain mounting plate H300xW800mm made of galvanised sheet steel

Schneider Electric

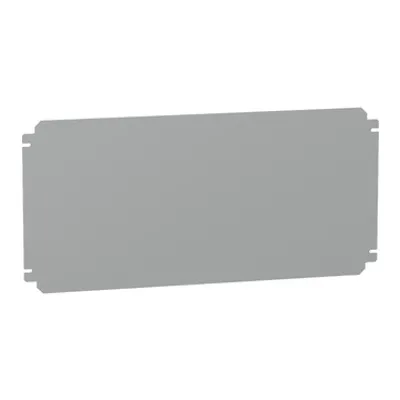

NSYMM36SB

Plain mounting plate H300xW600mm made of galvanised sheet steel

Schneider Electric

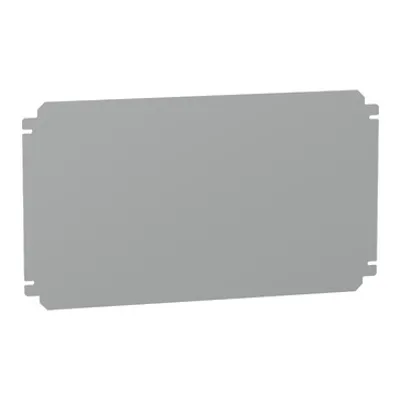

NSYMM35SB

Plain mounting plate H300xW500mm made of galvanised sheet steel

Schneider Electric

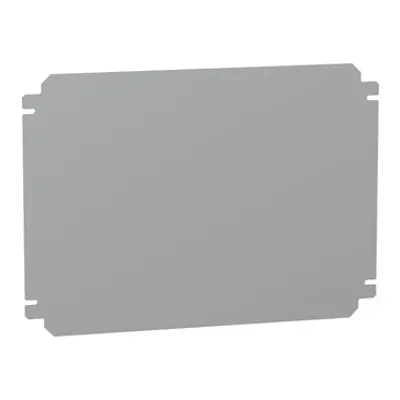

NSYMM34SB

Plain mounting plate H300xW400mm made of galvanised sheet steel

Schneider Electric

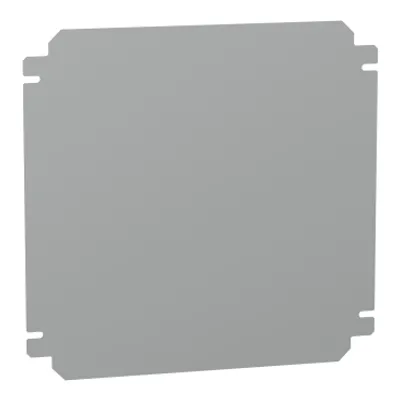

NSYMM33SB

Plain mounting plate H300xW300mm made of galvanised sheet steel

Schneider Electric

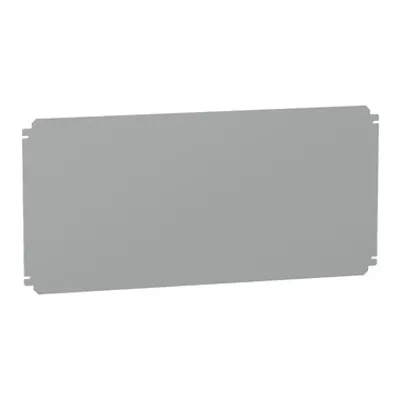

NSYMM48SB

Plain mounting plate H400xW800mm made of galvanised sheet steel

Schneider Electric

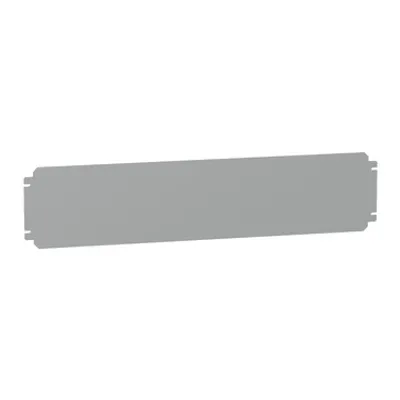

NSYMM28SB

Plain mounting plate H200xW800mm made of galvanised sheet steel

Schneider Electric

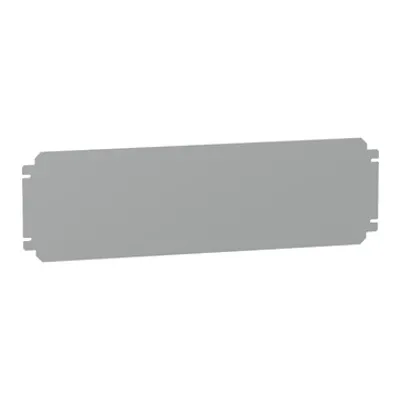

NSYMM26SB

Plain mounting plate H200xW600mm made of galvanised sheet steel

Schneider Electric

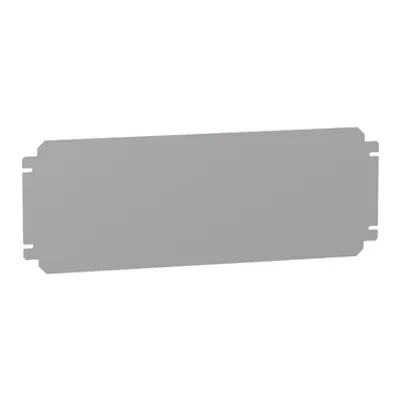

NSYMM25SB

Plain mounting plate H200xW500mm made of galvanised sheet steel

Schneider Electric

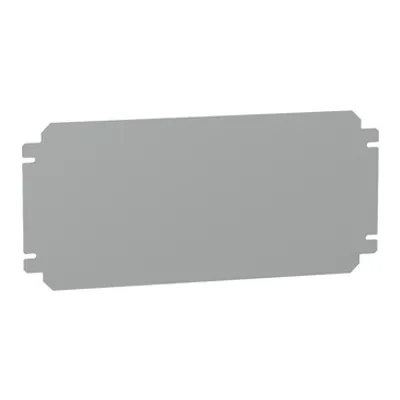

NSYMM24SB

Plain mounting plate H200xW400mm made of galvanised sheet steel

Schneider Electric

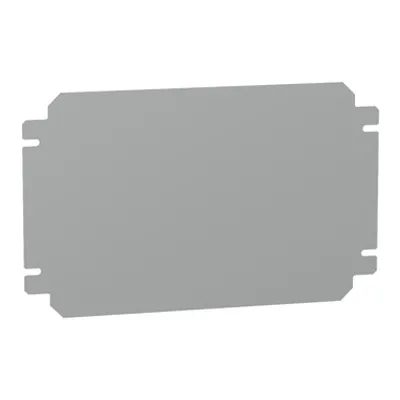

NSYMM23SB

Plain mounting plate H200xW300mm made of galvanised sheet steel

Compare PanelSeT SBM

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	Device composition	Net weight	Height	Width
NSYPPSB	Sealing	1 washer	0.01 kg	—	—
NSYAMFSB	Self-tapping screw	—	0.286 kg	—	—
NSYAEDSBSB	Screw	1 screw	0.022 kg	—	—
NSYAEDHSB	Hinge	Fixing elements, 1 x hinge	0.222 kg	—	—
NSYAEFPFSB	Wall fixing support	Fixing elements	0.188 kg	Fixing center: 20 mm	Fixing center: 22 mm
NSYAMRD50357SB	Rail	1 rail	0.166 kg	35 mm	Nominal: 485 mm, Fixing centers: 464 mm
NSYAMRD40357SB	Rail	1 rail	0.13 kg	35 mm	Nominal: 385 mm, Fixing centers: 364 mm
NSYAMRD30357SB	Rail	1 rail	0.096 kg	35 mm	Nominal: 285 mm, Fixing centers: 264 mm
NSYAMRD20357SB	Rail	1 rail	0.062 kg	35 mm	Nominal: 185 mm, Fixing centers: 164 mm
NSYAMRD15357SB	Rail	1 rail	0.045 kg	35 mm	Nominal: 135 mm, Fixing centers: 114 mm
NSYMM46SB	Mounting plate	1 mounting plate	3.412 kg	Nominal: 375 mm	Nominal: 585 mm, Fixing centers: 585 mm
NSYMM45SB	Mounting plate	1 mounting plate	2.816 kg	Nominal: 375 mm	Nominal: 485 mm, Fixing centers: 485 mm
NSYMM44SB	Mounting plate	1 mounting plate	2.23 kg	Nominal: 375 mm	Nominal: 385 mm, Fixing centers: 385 mm
NSYMM38SB	Mounting plate	1 mounting plate	3.352 kg	Nominal: 275 mm	Nominal: 785 mm, Fixing centers: 764 mm
NSYMM36SB	Mounting plate	1 mounting plate	2.466 kg	Nominal: 275 mm	Nominal: 585 mm, Fixing centers: 564 mm
NSYMM35SB	Mounting plate	1 mounting plate	2.06 kg	Nominal: 275 mm	Nominal: 485 mm, Fixing centers: 464 mm
NSYMM34SB	Mounting plate	1 mounting plate	1.61 kg	Nominal: 275 mm	Nominal: 385 mm, Fixing centers: 364 mm
NSYMM33SB	Mounting plate	1 mounting plate	0.904 kg	Nominal: 275 mm	Nominal: 285 mm, Fixing centers: 264 mm
NSYMM48SB	Mounting plate	1 mounting plate	4.596 kg	Nominal: 375 mm	Nominal: 785 mm, Fixing centers: 785 mm
NSYMM28SB	Mounting plate	1 mounting plate	2.106 kg	Nominal: 175 mm	Nominal: 785 mm, Fixing centers: 764 mm
NSYMM26SB	Mounting plate	1 mounting plate	1.578 kg	Nominal: 175 mm	Nominal: 585 mm, Fixing centers: 564 mm
NSYMM25SB	Mounting plate	1 mounting plate	1.287 kg	Nominal: 175 mm	Nominal: 485 mm, Fixing centers: 464 mm
NSYMM24SB	Mounting plate	1 mounting plate	1.032 kg	Nominal: 175 mm	Nominal: 385 mm, Fixing centers: 364 mm
NSYMM23SB	Mounting plate	1 mounting plate	0.574 kg	Nominal: 175 mm	Nominal: 285 mm, Fixing centers: 264 mm

Common to all listed parts

Range

PanelSeT
