Schneider Electric NSYSBM20608
Metal industrial box plain door H200xW600xD80 IP66 IK10 RAL 7035
- MPN
- NSYSBM20608
- EAN
- 3606480520099
- Category
- PanelSeT SBM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBM20608?

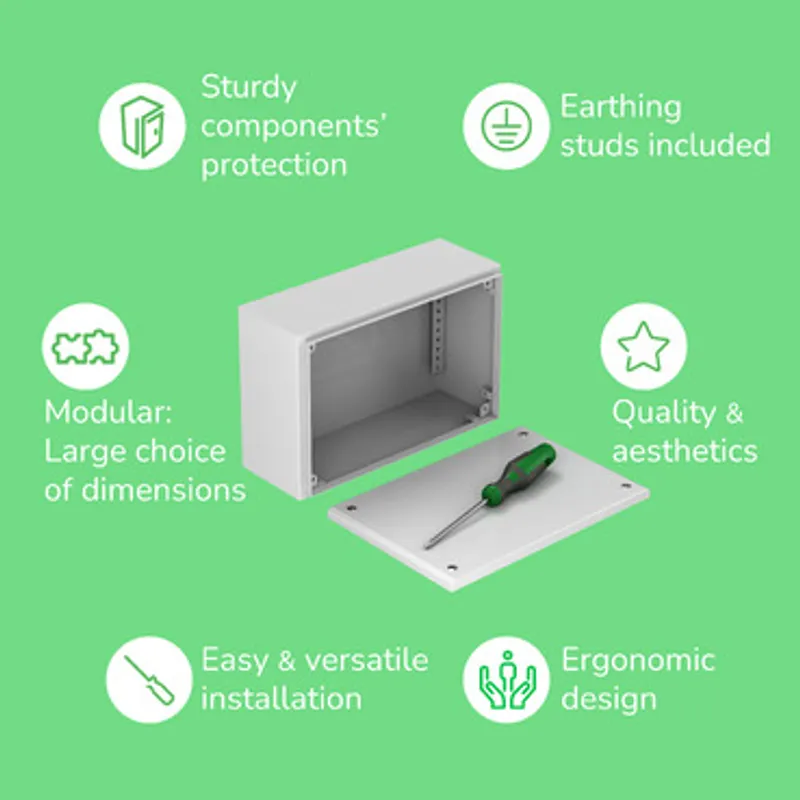

Industrial box for Spacial SBM. Multi purpose. 200 x 600 x 80 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 cover, 1 body, 6 cover screw |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 4.25 kg |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 22.000 cm × 10.000 cm (L × W × H), 4.250 kg |
| Package 2 | 18 P12, 120.000 cm × 80.000 cm × 60.000 cm (L × W × H), 90.000 kg |
