Schneider Electric NSYSBM208012
Metal industrial box plain door H200xW800xD120 IP66 IK10 RAL 7035
- MPN
- NSYSBM208012
- EAN
- 3606480520198
- Category
- PanelSeT SBM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBM208012?

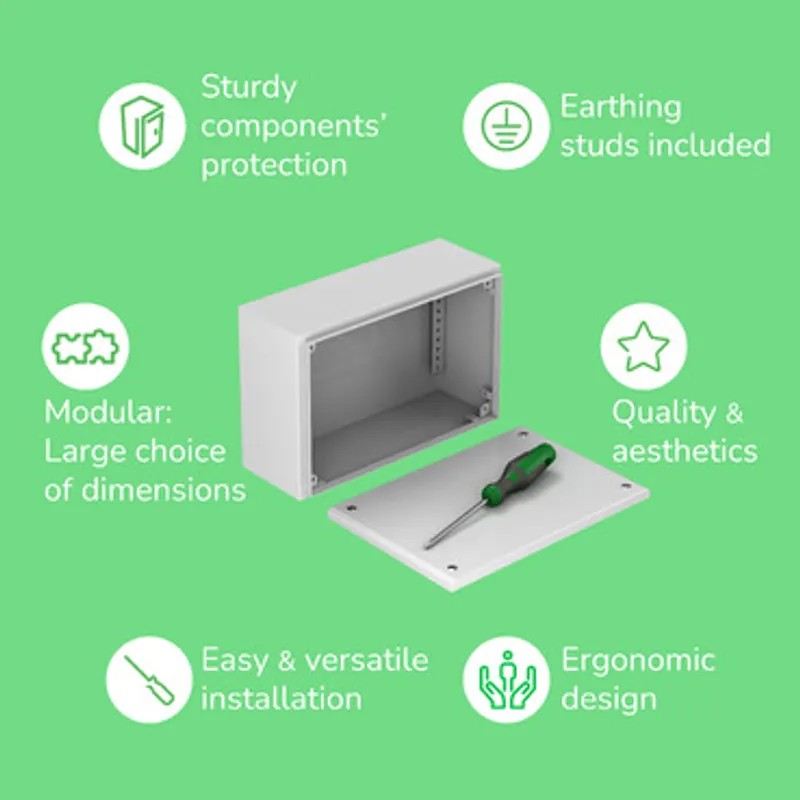

Spacial SBM steel industrial box is designed for multi-purpose applications It is designed to withstand harsh environments, with an IK10 rating (IEC62262) and an IP66 rating (IEC60529) providing resistance to dust and water This box has a nominal height, width and depth of 200mm, 800mm and 120mm respectively It is made from sheet steel and coated in grey (RAL7035) with a polyester powder finish The box consists of 1 cover, 1 body and 6 cover screws It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 6,66kg It meets the IEC 62208 standards and has an ambient air temperature for storage of -35-60 °C and for operation of -35-80 °C Protection IP 66, IK10.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 cover, 1 body, 6 cover screw |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 6.66 kg |
Packaging
| Package 1 | 1 PCE, 81.000 cm × 22.500 cm × 14.500 cm (L × W × H), 6.022 kg |
| Package 2 | 63 P12, 120.000 cm × 80.000 cm × 210.000 cm (L × W × H), 392.000 kg |
