Schneider Electric NSYSBM206012
Metal industrial box plain door H200xW600xD120 IP66 IK10 RAL 7035
- MPN
- NSYSBM206012
- EAN
- 3606480520181
- Category
- PanelSeT SBM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBM206012?

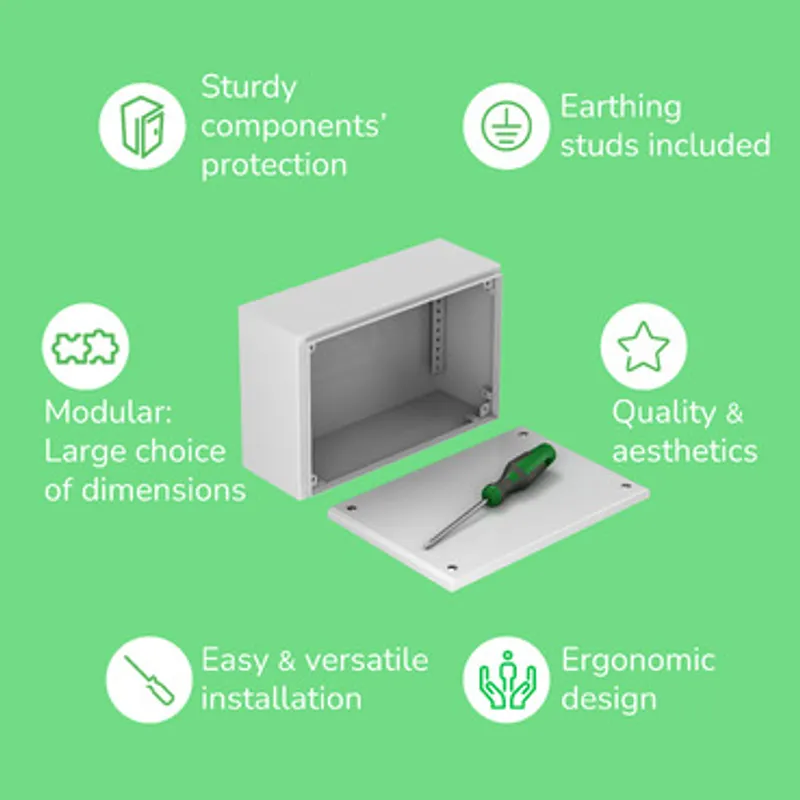

Spacial SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 200mm, 600mm and 120mm respectively The box is made in grey color (RAL7035) with a polyester powder surface finish The box consists of 1 cover, a body and 6 cover screw It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 5,108kg It is wall mounted and the cover is fixed with a half turn metal screw It is compliant with the IEC 62208 standards
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 cover, 1 body, 6 cover screw |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 5.108 kg |
Packaging
| Package 1 | 1 PCE, 63.000 cm × 23.000 cm × 14.500 cm (L × W × H), 5.108 kg |
| Package 2 | 28 PAM, 120.000 cm × 100.000 cm × 78.000 cm (L × W × H), 158.500 kg |
