NSYS3X12830HWall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 1200x800x300mm, IP66
Schneider Electric NSYS3X3215H

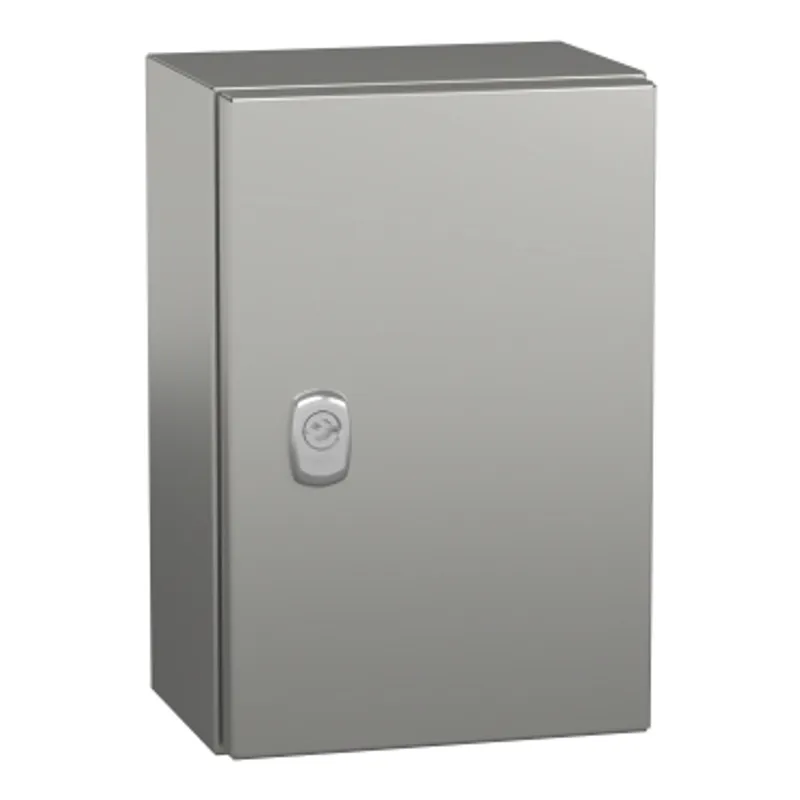

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
- MPN
- NSYS3X3215H
- EAN
- 3606480155062
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X3215H?
"PanelSet S3X is a wall-mounting enclosure made of stainless steel 316L, designed for multi-purpose applications" "This enclosure has a nominal height, width and depth of 300mm, 200mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and a chromium plated lock" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "The enclosure consists of a body, a plain door and a 3mm double-bar lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,12kg and it has certifications from UL 508 type A and CAN/CSA 22"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 300 mm |
| nominal width | 200 mm |
| nominal depth | 150 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 3.12 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 32.000 cm × 21.500 cm × 17.000 cm (L × W × H), 3.120 kg |
| Package 2 | 168 PAM, 120.000 cm × 100.000 cm × 180.000 cm (L × W × H), 535.000 kg |
