Schneider Electric NSYS3D32515

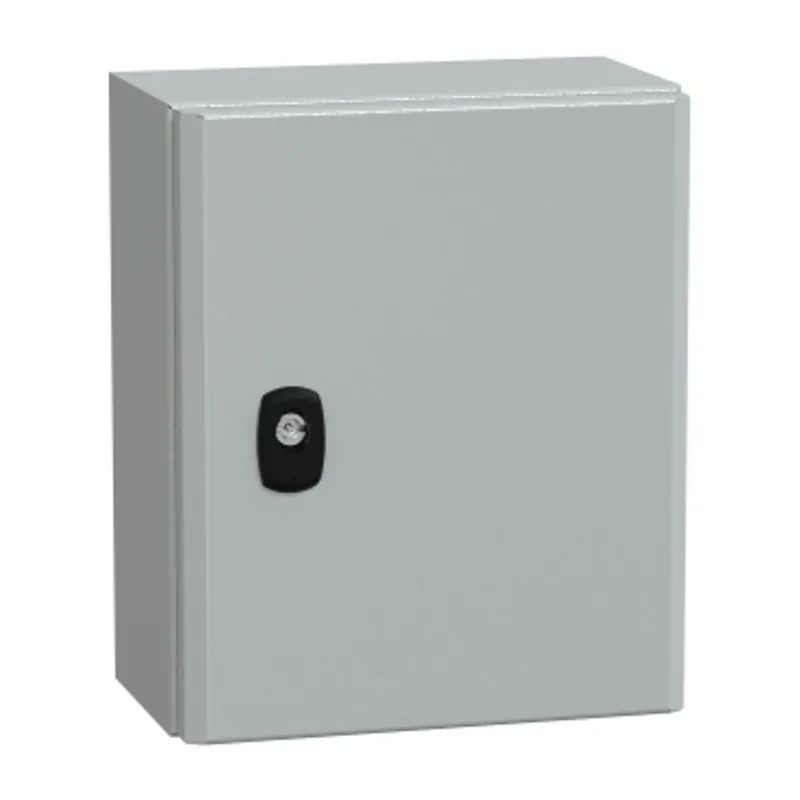

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 300x250x150mm, IP66, IK10

MPN
NSYS3D32515
EAN
3606480159787
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D32515?

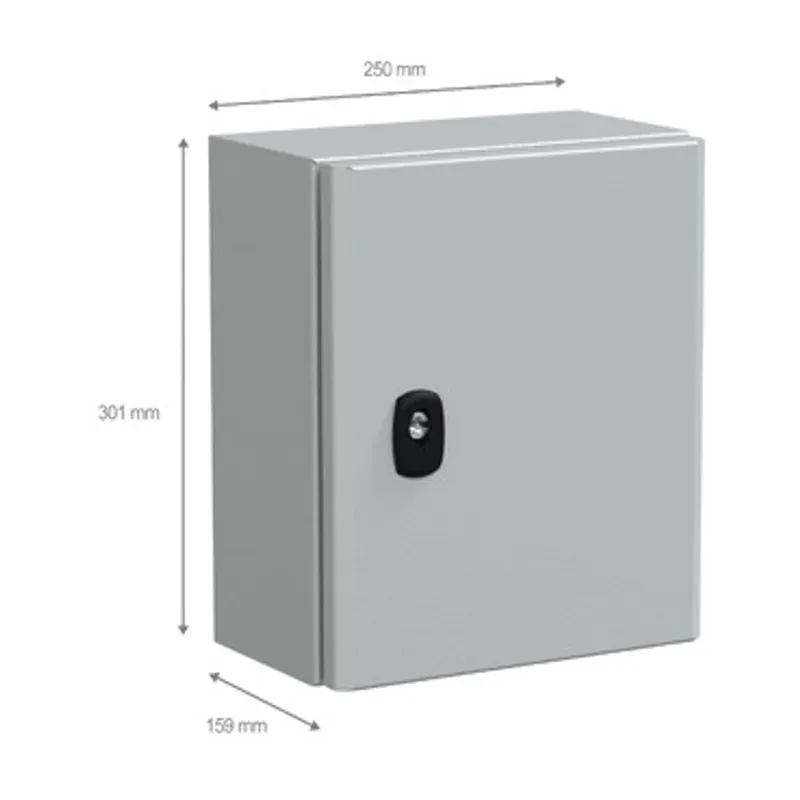

Spacial S3D is a monobloc wall-mounting enclosure for multi-purpose applications It has a nominal height, width and depth of 300mm, 250mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 3,48kg It is certified by BV, UL, cUL, LR, GL and DNV standards, and has a NEMA 4X/13 rating and an IK10 (IEC62262) and IP66 (IEC60529) rating for high impact and dust and water resistance, respectively

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height300 mm
Enclosure nominal width250 mm
Enclosure nominal depth150 mm
Door typePlain
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 1 cable gland plate
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialSteel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsBV, UL, cUL, GL, DNV
Net weight3.48 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 31.000 cm × 26.500 cm × 19.500 cm (L × W × H), 3.444 kg
Package 2105 PAM, 120.000 cm × 100.000 cm × 201.000 cm (L × W × H), 384.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D32515: frequently asked questions

When can NSYS3D32515 be shipped?

NSYS3D32515 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D32515 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D32515 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D32515, subject to availability and destination.
