PanelSeT S3D Parts

Schneider Electric

NSYAEDH180S3D

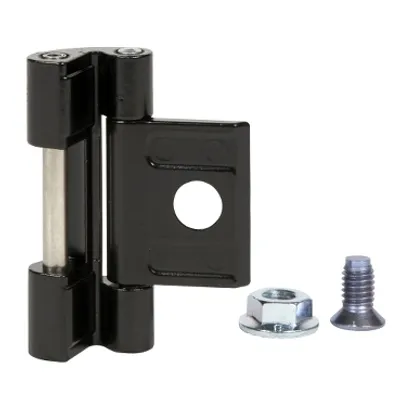

Door hinges for PanelSeT S3D enclosure, door opening: 180Â°.

Schneider Electric

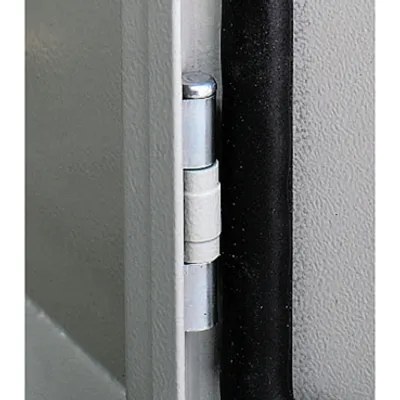

NSYAEDH120S3D

Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.

Schneider Electric

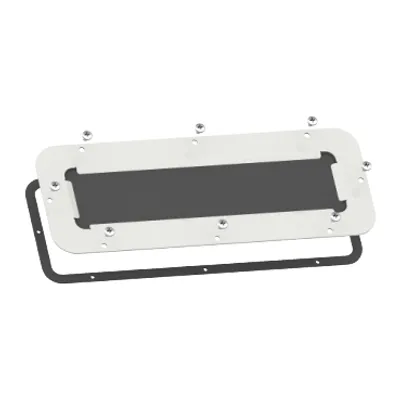

NSYTLGME

PanelSeT S3D flexicable gland plate with membrane pearcable 428 x 63 mm

Schneider Electric

NSYTLFME

PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm

Schneider Electric

NSYTLEME

PanelSeT S3D flexicable gland plate with membrane pearcable 378 x 63 mm

Schneider Electric

NSYTLDME

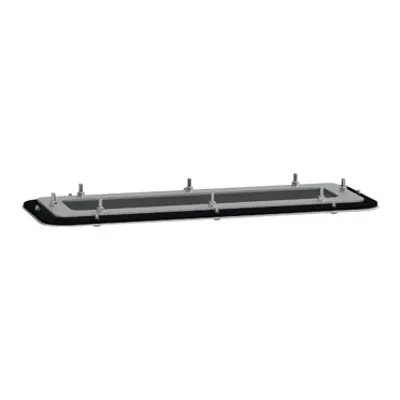

PanelSeT S3D flexicable gland plate with membrane pearcable 278 x 63 mm

Schneider Electric

NSYTLCME

PanelSeT S3D flexicable gland plate with membrane pearcable 178 x 63 mm

Schneider Electric

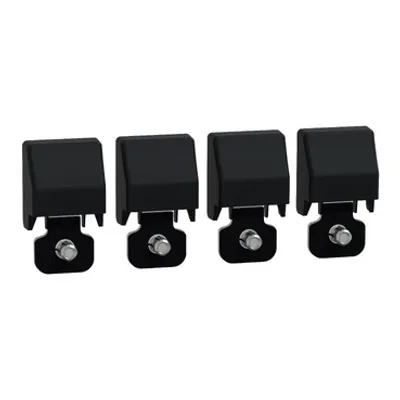

NSYAEFPFSC2

Set of 4 wall fixing brackets and cover for PanelSeT S3D

Schneider Electric

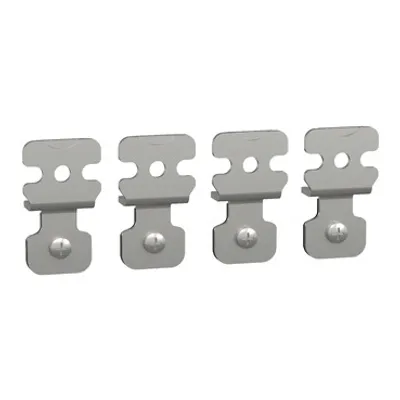

NSYAEFPFSC

Set of 4 wall fixing lugs, made of steel. For PanelSeT S3D enclosure

Schneider Electric

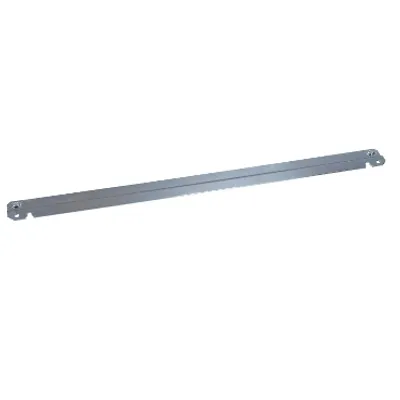

NSYAEFPFS3DW80

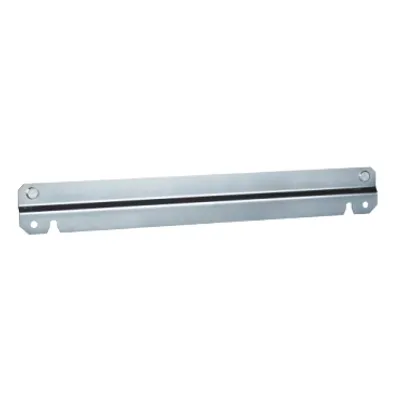

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

Schneider Electric

NSYAEFPFS3DW60

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

Schneider Electric

NSYAEFPFS3DW40

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

Schneider Electric

NSYAEFPFS3DW100

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

Schneider Electric

NSYAEFPF40SC

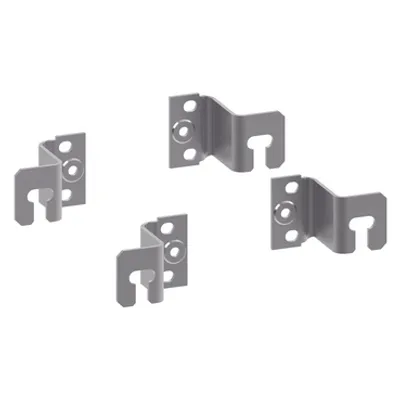

Steel wall fixing lugs 40 mm (4) for PanelSeT 3D encl.

Schneider Electric

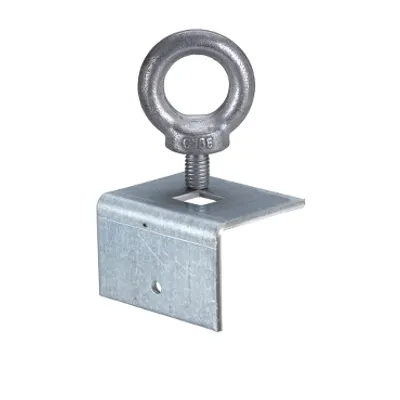

NSYAELYTCRXG8

Set of 2 lifting eyes M8 - Stainless steel

Schneider Electric

NSYTSAKFL

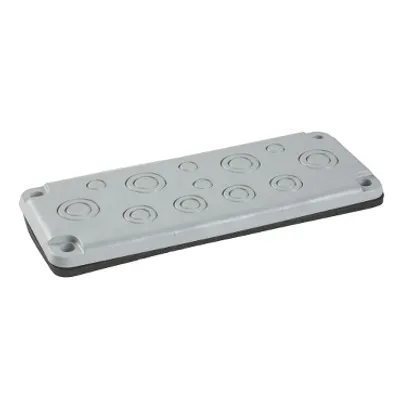

Membrane for cable entrance FL21 with 12 entrances IP65

Schneider Electric

NSYTLGU

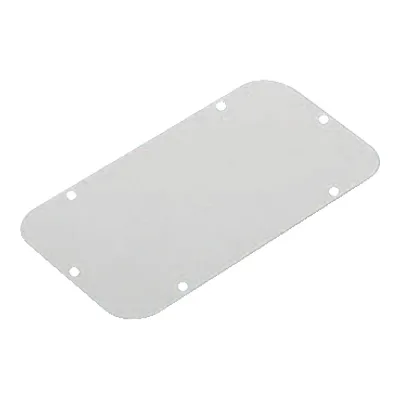

Aluminium for PanelSeT S3D encl. L495xW220

Schneider Electric

NSYTLFU

Aluminium for PanelSeT S3D encl. L545xW130.

Schneider Electric

NSYTLBU

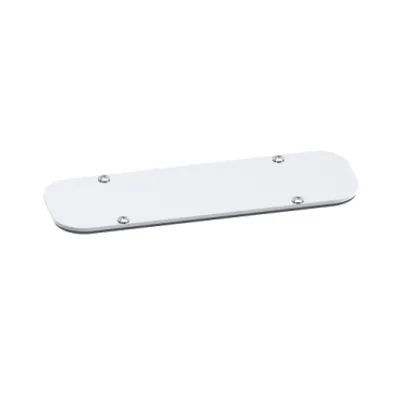

Aluminium for PanelSeT S3D encl. L245xW80

Schneider Electric

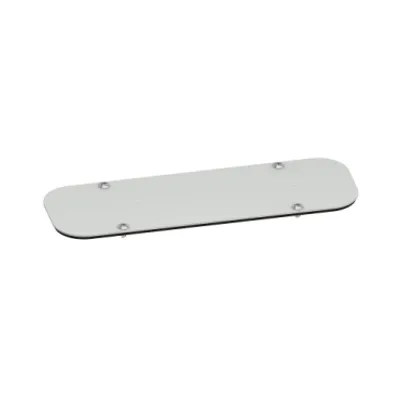

NSYTLB

Standard for PanelSeT S3D encl. RAL7035, L245xW80

Schneider Electric

NSYTLA

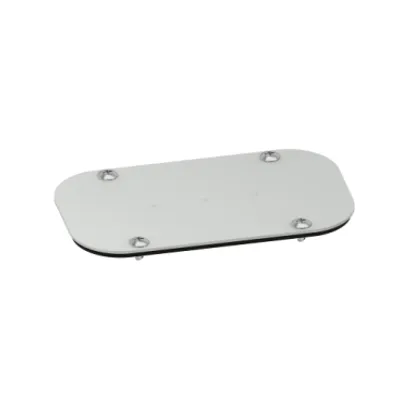

Standard for PanelSeT S3D encl. RAL7035, L140xW80

Schneider Electric

NSYTLF

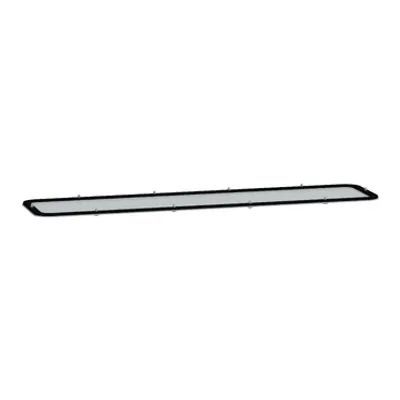

Standard for PanelSeT S3D encl. RAL7035, L545xW130.

Schneider Electric

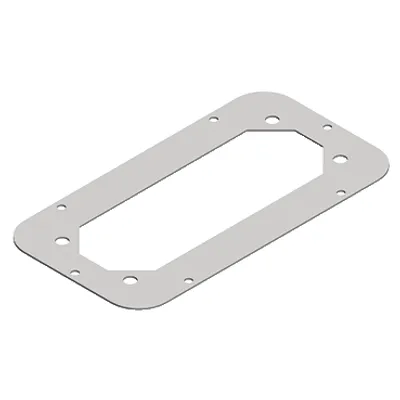

NSYTLFFL

With 1 FL21 cutouts for S3D encl. RAL7035. L545xW130.

Schneider Electric

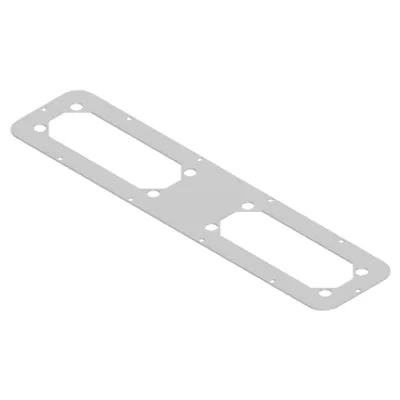

NSYTLF2FL

With 2 FL21 cutouts for S3D encl. RAL7035. L545xW130.

Compare PanelSeT S3D

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	Mounting location	Net weight	Height	Width
NSYAEDH180S3D	Hinge	Enclosure	0.052 kg	—	—
NSYAEDH120S3D	Hinge	Enclosure	0.031 kg	—	—
NSYTLGME	Flexicable gland plate	Enclosure bottom	1.258 kg	30 mm	495 mm, Real: 510 mm
NSYTLFME	Flexicable gland plate	Enclosure bottom	1.066 kg	30 mm	545 mm, Real: 560 mm
NSYTLEME	Flexicable gland plate	Enclosure bottom	0.882 kg	30 mm	445 mm, Real: 460 mm
NSYTLDME	Flexicable gland plate	Enclosure bottom	0.73 kg	30 mm	345 mm, Real: 360 mm
NSYTLCME	Flexicable gland plate	Enclosure bottom	0.536 kg	30 mm	245 mm, Real: 260 mm
NSYAEFPFSC2	Fixing bracket	Rear of enclosure	0.358 kg	Real: 74 mm	Real: 42 mm
NSYAEFPFSC	Wall fixing support	Rear of enclosure	0.318 kg	Real: 74 mm	Real: 42 mm
NSYAEFPFS3DW80	Wall fixing support	Top and bottom, on rear of the enclosure	2.632 kg	Fixing centers: 47 mm	800 mm
NSYAEFPFS3DW60	Wall fixing support	Top and bottom, on rear of the enclosure	2.004 kg	Fixing centers: 47 mm	600 mm
NSYAEFPFS3DW40	Wall fixing support	Top and bottom, on rear of the enclosure	1.375 kg	Fixing centers: 47 mm	400 mm
NSYAEFPFS3DW100	Wall fixing support	Top and bottom, on rear of the enclosure	3.262 kg	Fixing centers: 47 mm	1000 mm
NSYAEFPF40SC	Wall fixing support	Rear of enclosure	0.324 kg	45 mm	60 mm
NSYAELYTCRXG8	Lifting eye	Enclosure top	0.24 kg	49 mm	36 mm
NSYTSAKFL	Cable entry membrane	—	0.15 kg	10 mm	215 mm
NSYTLGU	Cable gland plate	Enclosure bottom	920 kg	495 mm	495 mm, Real: 600 mm
NSYTLFU	Cable gland plate	Enclosure bottom	590 kg	545 mm	545 mm, Real: 600 mm
NSYTLBU	Cable gland plate	Enclosure bottom	170 kg	245 mm	245 mm, Real: 200 mm
NSYTLB	Cable gland plate	Enclosure bottom	0.302 kg	245 mm	245 mm, Real: 200 mm
NSYTLA	Cable gland plate	Enclosure bottom	190 kg	140 mm	140 mm, Real: 200 mm
NSYTLF	Cable gland plate	Enclosure bottom	890 kg	545 mm	545 mm, Real: 600 mm
NSYTLFFL	Cable gland plate	Enclosure bottom	0.726 kg	545 mm	545 mm, Real: 600 mm
NSYTLF2FL	Cable gland plate	Enclosure bottom	0.564 kg	545 mm, 3 mm	545 mm, Real: 560 mm

Common to all listed parts

Quantity per set

Set of 1
