Schneider Electric NSYS3D32515P

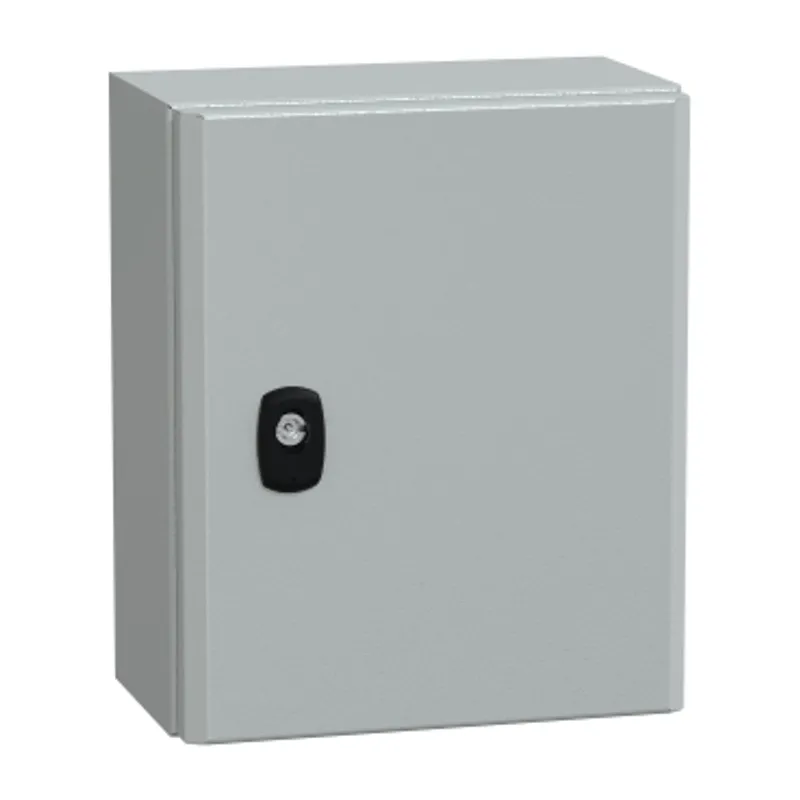

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300x250x150mm, IP66, IK10

MPN
NSYS3D32515P
EAN
3606480159770
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D32515P?

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) for high impact and dust/water resistance This enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, one plain door with a lock, and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure

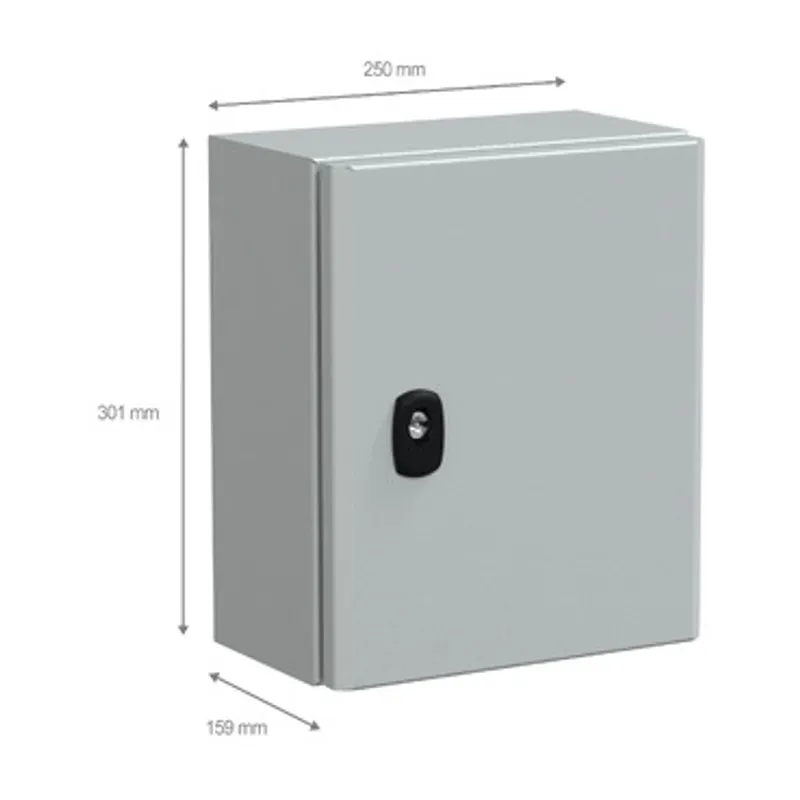

Enclosure nominal height300 mm
Enclosure nominal width250 mm
Enclosure nominal depth150 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, GL, DNV, BV
Net weight4.04 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 31.500 cm × 26.500 cm × 19.500 cm (L × W × H), 4.214 kg
Package 2105 PAM, 120.000 cm × 100.000 cm × 205.000 cm (L × W × H), 457.000 kg
