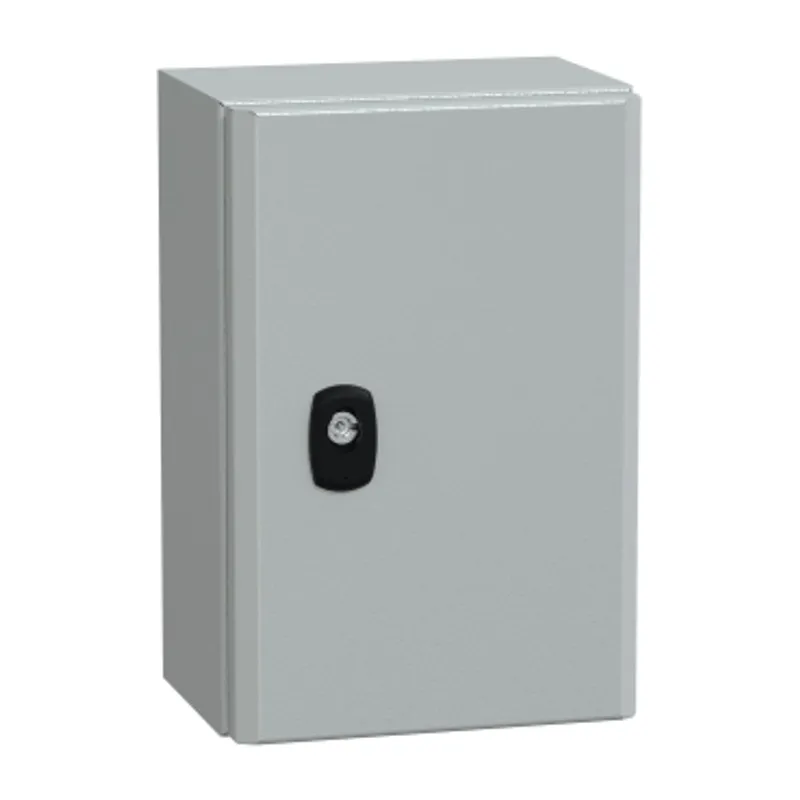

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 300x200x150mm, IP66, IK10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.02 kg |
Shipping & availability
When can NSYS3D3215 be shipped?
NSYS3D3215 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D3215 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D3215 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D3215, subject to availability and destination.

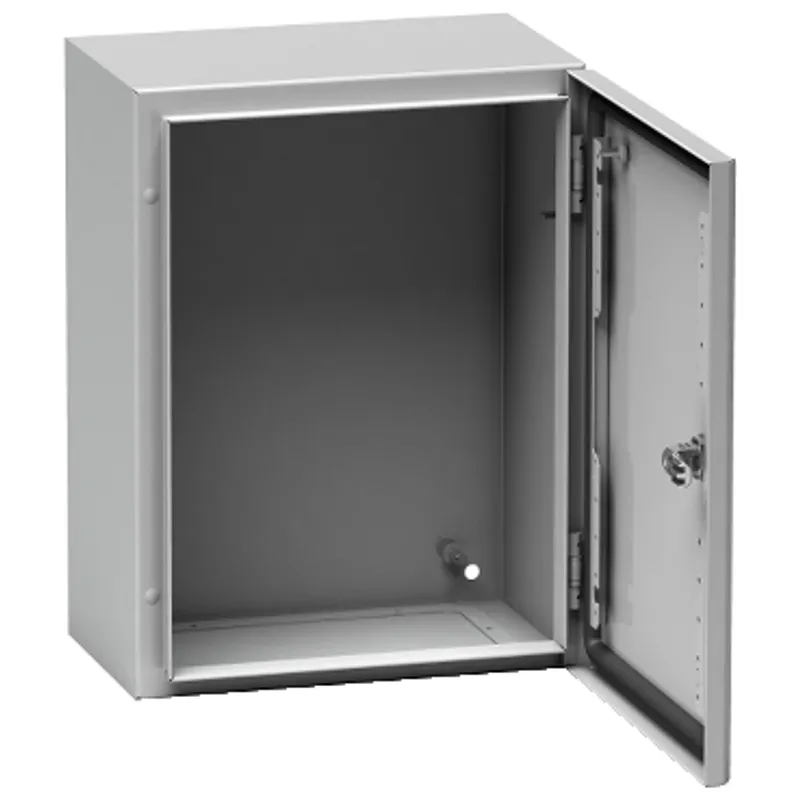

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh and hazardous environments It has a nominal height, width and depth of 300mm, 200mm and 150mm respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside and can be reversed for convenience The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 3,02kg It is certified by BV, GL, UL, DNV, LR and cUL and has a NEMA 4X/13 rating, IK10 (IEC62262) rating and an IP66 rating (IEC60529) The single piece body and the gutter-shaped front rail double sheet thickness ensures a high impact resistance
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

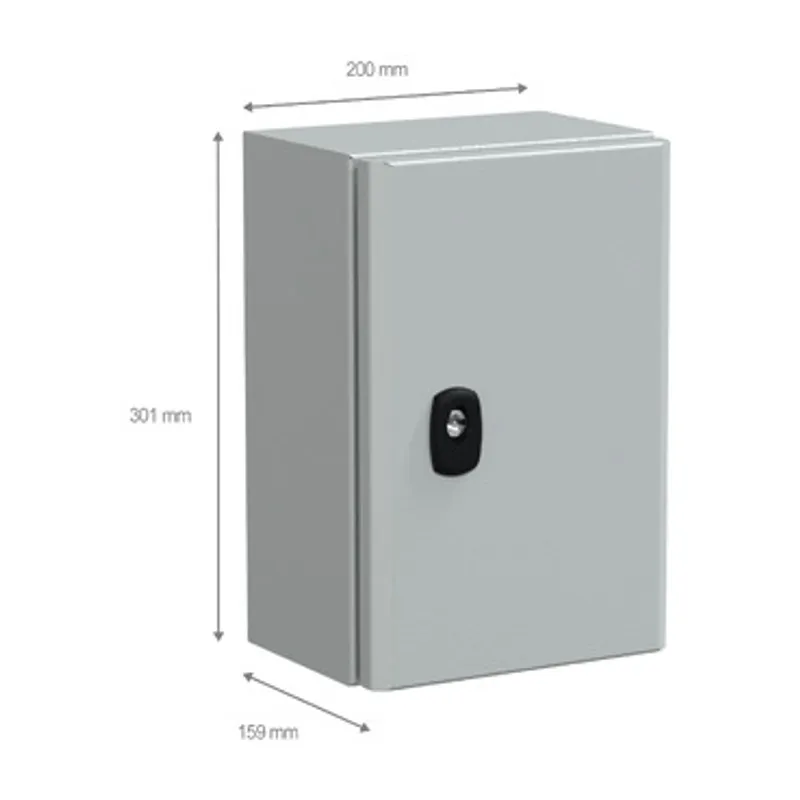

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 200 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, GL, UL, DNV, cUL |
| Net weight | 3.02 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 22.000 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 3.090 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 105 |
| Package 2 Height | 170.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 339.450 kg |
| Coverage | Core product |
| Warranty | 18 months |
