Schneider Electric NSYS3D141030D

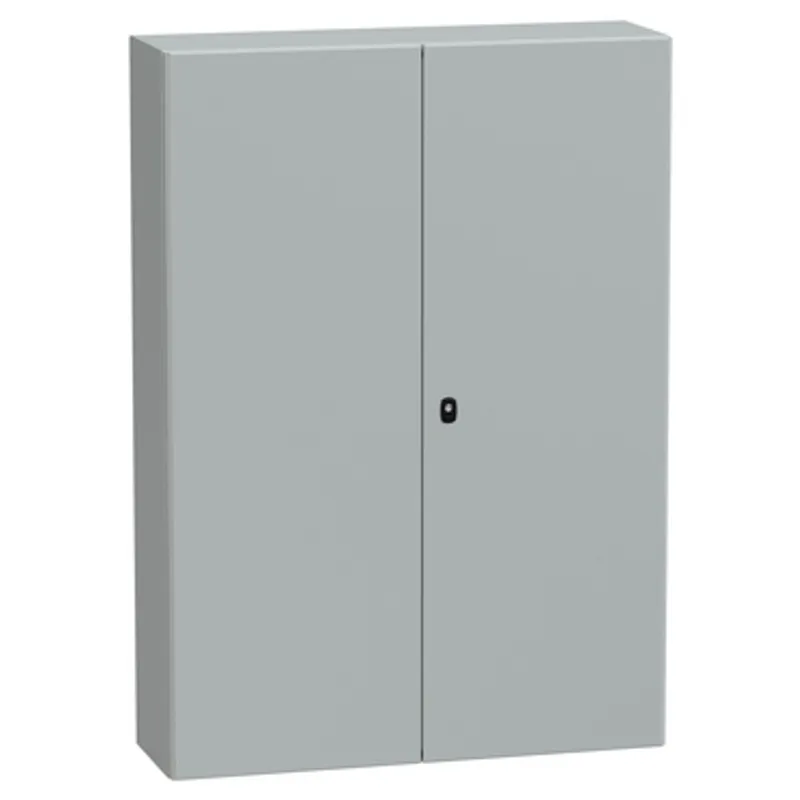

Wall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1400x1000x300mm, IP55, IK10

MPN
NSYS3D141030D
EAN
3606480159824
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYS3D141030D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D141030D?

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has an enclosure nominal height, width and depth of 1400mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 84kg and it has a high resistance to dust and water with an IP55 rating (IEC60529)

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1400 mm
Enclosure nominal width1000 mm
Enclosure nominal depth300 mm
Door typePlain
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 1 lock, 2 door
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialSteel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsGL, DNV, BV, UL, cUL
Net weight84 kg
Electromagnetic compatibilityElectromagnetic field immunity test
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP55 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 37.000 cm × 103.500 cm × 153.000 cm (L × W × H), 81.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D141030D: frequently asked questions

Can I still buy the NSYS3D141030D now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYS3D141030D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYS3D141030D be shipped?

NSYS3D141030D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D141030D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D141030D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D141030D, subject to availability and destination.
