Schneider Electric NSYS3D32515T

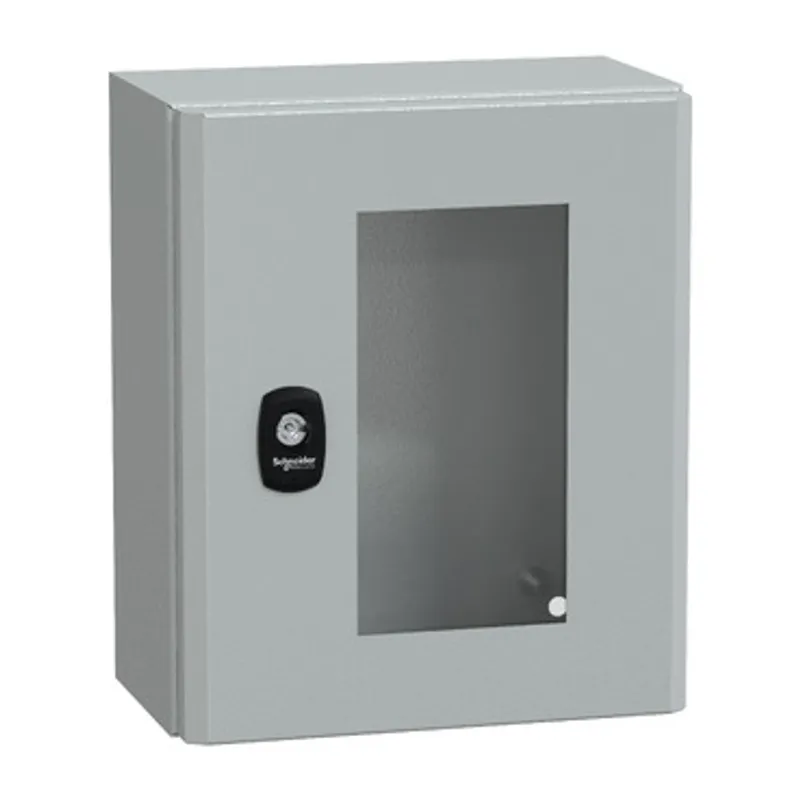

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 300x250x150mm, IP66, IK08

MPN
NSYS3D32515T
EAN
3606480159763
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D32515T?

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It is certified by cUL, GL, BV, LR, UL and DNV and has a nominal height, width and depth of 300mm, 250mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a single piece body and a gutter-shaped front rail double sheet thickness for increased protection The enclosure consists of a body, one glazed door, one lock and one cable gland plate The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plate can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure

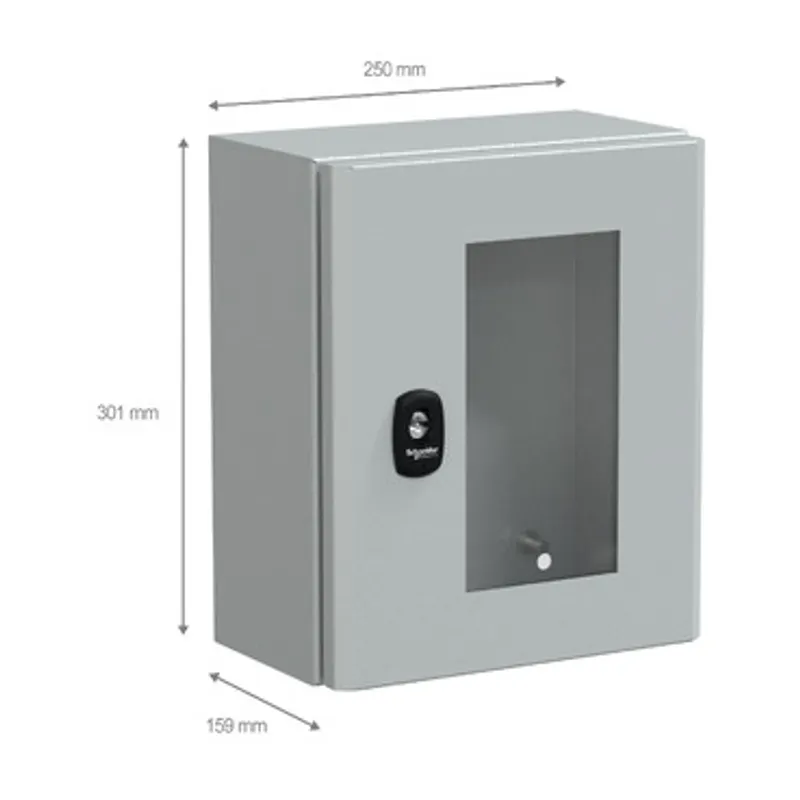

Enclosure nominal height300 mm
Enclosure nominal width250 mm
Enclosure nominal depth150 mm
Door typeGlazed
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 1 cable gland plate
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, GL, BV, UL, DNV
Net weight3.6 kg
Electromagnetic compatibilityElectromagnetic field immunity test
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 31.000 cm × 26.000 cm × 19.500 cm (L × W × H), 3.542 kg
Package 2105 PAM, 120.000 cm × 100.000 cm × 175.000 cm (L × W × H), 385.000 kg
