Schneider Electric NSYFXT8050

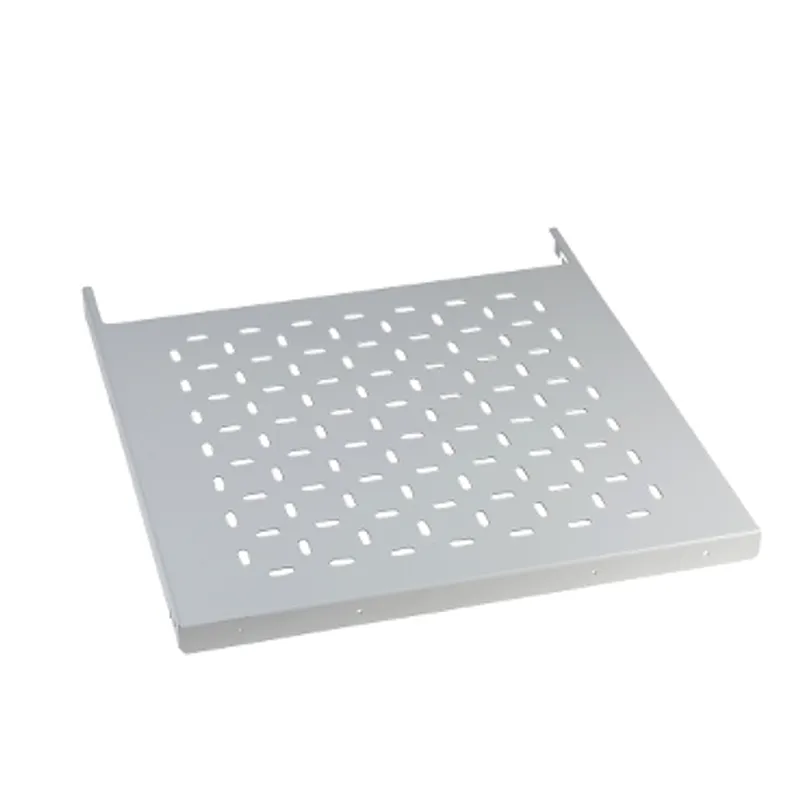

Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800 D500mm, steel
- MPN
- NSYFXT8050
- EAN
- 3606480064531
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXT8050?
This is a fixed tray for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is made of steel. The product is to be fixed on direct to the structure and 40 mm cross rails. The kit consists of 1 fixed tray and fixing elements. The tray is to be used with enclosures of nonimal width and depth of 800 and 500 mm respectively. Adjustable in depth every 25 mm. Maximum load is 150 kg evenly distributed. Anti-corrosion protection is ensured by epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Fixed tray |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - W: 800 mm D: 500 mm |
| Mounting support | Direct to the structure, 40 mm cross rails |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 fixed tray, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Adjustment | Adjustable in depth every 25 mm |
| Maximum load | 150 kg evenly distributed |
| Height | 30 mm |
| Width | 682 mm |
| Depth | 390 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 3.000 cm × 41.000 cm × 68.000 cm (L × W × H), 3.980 kg |
| Package 2 | 30 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 132.000 kg |
