Schneider Electric NSYCVF85M24DPF

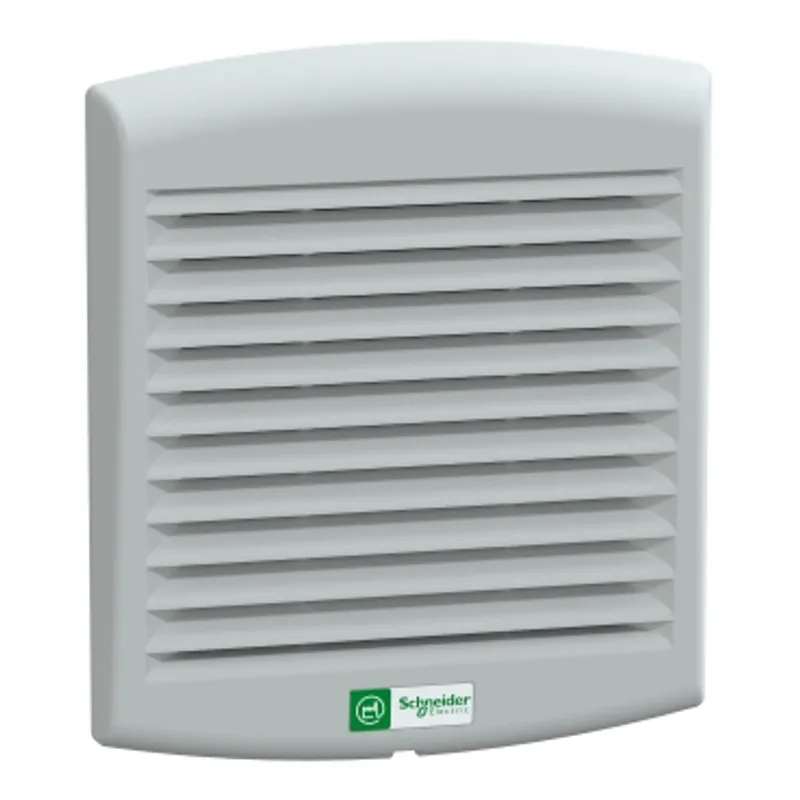

ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
- MPN
- NSYCVF85M24DPF
- EAN
- 3606480151224
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCVF85M24DPF?
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 7,6 W and a free flow rate of 80 m3/h It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cord and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 46-49 dB The cut-out dimensions of the fan are 125 x 125 mm This fan also comes with an anti-insect filter included Protection IP54.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 80 m3/h |
| [Us] rated supply voltage | 10...27.6 V |
| Input voltage | 24 V DC |
| Certification | CSA |
| Absorbed power | 7.6 W |
| [In] rated current | 0.3 A |
| Noise level < at | 46…49 dB |
| Bearing type | Ball |
| Height | External: 170 mm |
| Width | External: 150 mm |
| Depth | External : 62 mm |
| Cut-out dimensions | 125 x 125 mm |
| Net weight | 0.48 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Connections - terminals | Cable |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord |
| Condition of use | Overfrequent filter replacement should be avoided, Outside temperature must be 5 °C lower than inside temperature, Surrounding environment must be relatively clean, Filter must be cleaned and replaced regularly, Flow rates depends on the work point, see ProClima software |
Packaging
| Package 1 | 1 PCE, 17.500 cm × 15.500 cm × 8.000 cm (L × W × H), 540.000 g |
| Package 2 | 20 CAR, 60.000 cm × 40.000 cm × 28.000 cm (L × W × H), 12.000 kg |
| Package 3 | 160 P12, 120.000 cm × 80.000 cm × 67.000 cm (L × W × H), 111.000 kg |
