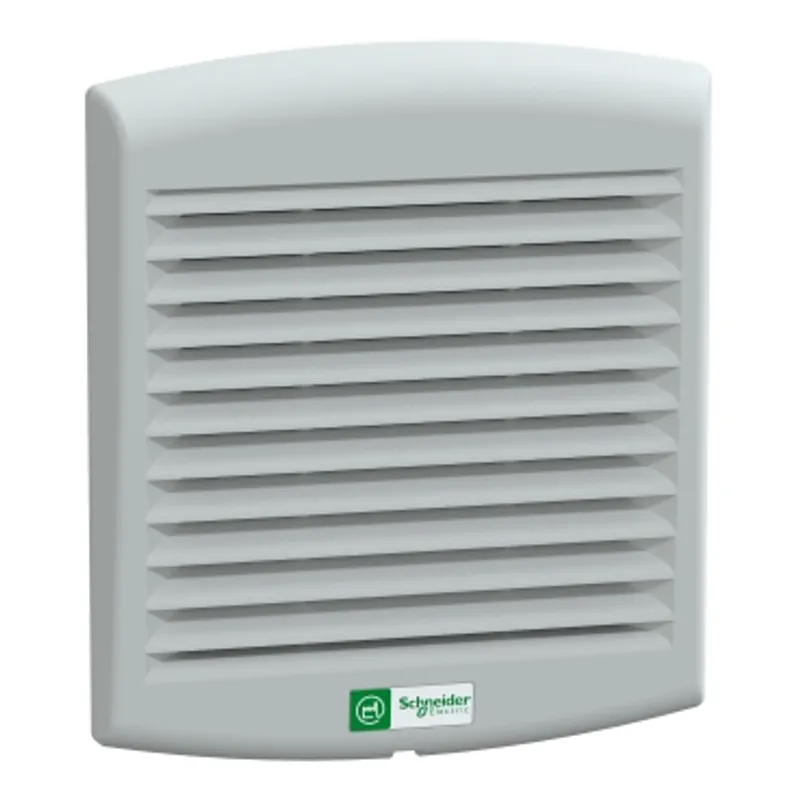

Schneider Electric NSYCVF85M230PF
ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
- MPN
- NSYCVF85M230PF
- EAN
- 3606480151200
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCVF85M230PF?
This product is a forced air ventilation fan that is designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 15 W 60 Hz and 17 W 50 Hz, and a free flow rate of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -20 to 60°C It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord It has an IP54 degree of protection and a noise level of 46-49 dB The cut-out dimensions of the fan are 125 x 125 mm This fan also comes with an anti-insect filter included Protection IP54.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 85 m3/h at 50 Hz, Free flow rate with standard filter: 98 m3/h at 60 Hz |
| [Us] rated supply voltage | 175...253 V |
| Input voltage | 230 V 50/60 Hz |
| Certification | CSA |
| Absorbed power | 15 W 60 Hz, 17 W 50 Hz |
| [In] rated current | 0.121 A 50 Hz, 0.097 A 60 Hz |
| Noise level < at | 46…49 dB |
| Bearing type | Ball |
| Height | External: 170 mm |
| Width | External: 150 mm |
| Depth | External : 62 mm |
| Cut-out dimensions | 125 x 125 mm |
| Net weight | 0.78 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Connections - terminals | Faston connector |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord |
| Condition of use | Flow rates depends on the work point, see ProClima software, Surrounding environment must be relatively clean, Filter must be cleaned and replaced regularly, Overfrequent filter replacement should be avoided, Outside temperature must be 5 °C lower than inside temperature |
Packaging
| Package 1 | 1 PCE, 18.000 cm × 15.500 cm × 8.000 cm (L × W × H), 930.000 g |
| Package 2 | 10 CAR, 43.000 cm × 33.000 cm × 21.000 cm (L × W × H), 9.526 kg |
| Package 3 | 240 P12, 120.000 cm × 80.000 cm × 95.000 cm (L × W × H), 241.000 kg |
