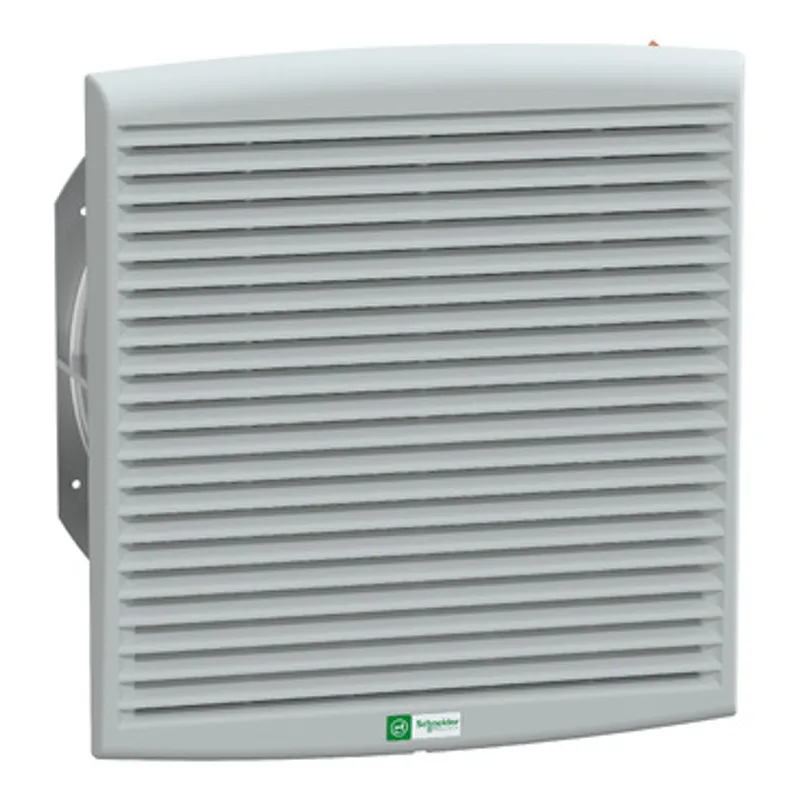

ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2

Name: Schneider Electric NSYCVF850M400PF – ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2
Brand: Schneider Electric
SKU: NSYCVF850M400PF

MPN: NSYCVF850M400PF · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ClimaSys CV
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	4.1 kg

Shipping & availability

When can NSYCVF850M400PF be shipped?

NSYCVF850M400PF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCVF850M400PF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCVF850M400PF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF850M400PF, subject to availability and destination.

Schneider Electric ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2, manufacturer part number NSYCVF850M400PF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	ClimaSys
Product name	ClimaSys CV
Product or component type	Fan
Type of filter	Standard
Flow rate	Free flow rate with standard filter: 803 m3/h at 60 Hz, Free flow rate with standard filter: 931 m3/h at 50 Hz
[Us] rated supply voltage	396...466 V
Input voltage	400 V 50/60 Hz
Certification	CSA
Absorbed power	126 W 50 Hz, 126 W 60 Hz
[In] rated current	0.21 A 50 Hz, 0.26 A 60 Hz
Noise level < at	75…77 dB
Bearing type	Ball
Height	External: 336 mm
Width	External: 316 mm
Depth	External : 162 mm
Cut-out dimensions	291 x 291 mm
Net weight	4.1 kg
Material	Outlet grille: injected thermoplastic (ASA PC)
Colour	Outlet grille: grey (RAL 7035)
Ambient air temperature for operation	-15…60 °C
Ambient air temperature for storage	-40…70 °C
Maximum pressure	170 Pa flow rate 0 m³/h
Connections - terminals	Terminal block
IP degree of protection	IP54
Device composition	1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template
Condition of use	Outside temperature must be 5 °C lower than inside temperature, Overfrequent filter replacement should be avoided, Flow rates depends on the work point, see ProClima software, Filter must be cleaned and replaced regularly, Surrounding environment must be relatively clean
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	23.500 cm
Package 1 Width	32.500 cm
Package 1 Length	34.000 cm
Package 1 Weight	4.472 kg
Unit Type of Package 2	P12
Number of Units in Package 2	24
Package 2 Height	110.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	118.500 kg
Warranty (in months)	18
