Schneider Electric NSYCVF85M48DPF

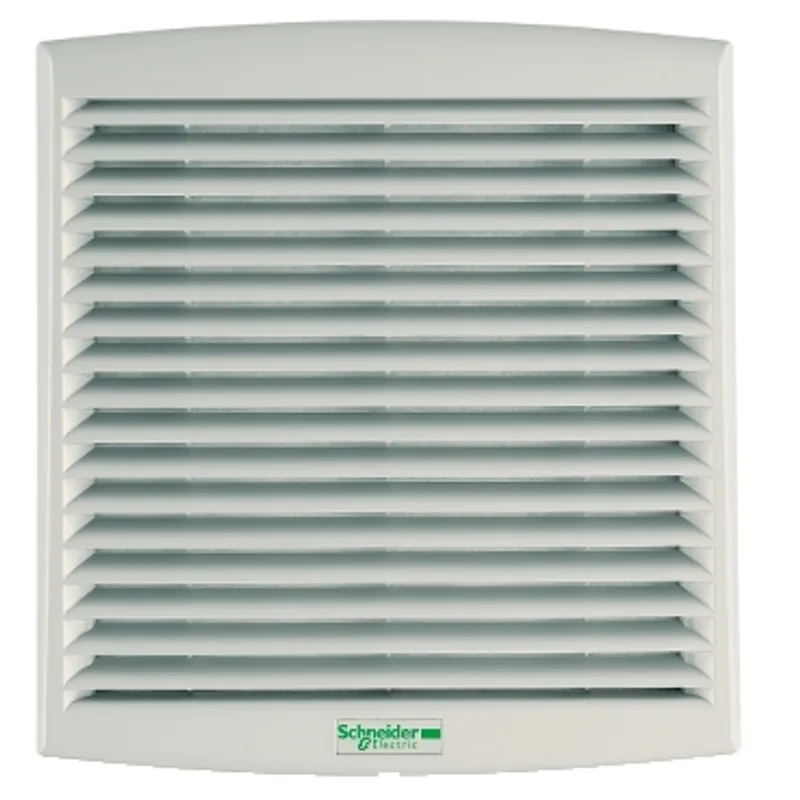

ClimaSys forced vent. IP54, 79m3/h, 48V DC, with outlet grille and filter G2
- MPN
- NSYCVF85M48DPF
- EAN
- 3606480151231
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCVF85M48DPF?
Schneider Electric ClimaSys forced vent. IP54, 79m3/h, 48V DC, with outlet grille and filter G2, manufacturer part number NSYCVF85M48DPF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 79 m3/h |
| [Us] rated supply voltage | 25...55.2 V |
| Input voltage | 48 V DC |
| Certification | CSA |
| Absorbed power | 8 W |
| [In] rated current | 0.173 A |
| Noise level < at | 46…49 dB |
| Bearing type | Ball |
| Height | External: 170 mm |
| Width | External: 150 mm |
| Depth | External : 62 mm |
| Cut-out dimensions | 125 x 125 mm |
| Net weight | 0.48 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7032) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Connections - terminals | Cable |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord |
| Condition of use | Surrounding environment must be relatively clean, Filter must be cleaned and replaced regularly, Outside temperature must be 5 °C lower than inside temperature, Overfrequent filter replacement should be avoided, Flow rates depends on the work point, see ProClima software |
Packaging
| Package 1 | 1 PCE, 15.500 cm × 18.000 cm × 8.500 cm (L × W × H), 520.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCVF85M48DPF: frequently asked questions
When can NSYCVF85M48DPF be shipped?
NSYCVF85M48DPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF85M48DPF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF85M48DPF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF85M48DPF, subject to availability and destination.
